Outdoor Floor Mounted Jib Crane 5 Ton 3Phase 380V 50Hz For Workshop Handling

Minimum Order Quantity : 1 set Price : Negotiable
Packaging Details : Electrical, hoist and other parts packed by high quality plywood crate; Beams packed by rain proof plastic cloth. Delivery Time : 15 days
Payment Terms : T/T, L/C Supply Ability : 1 set
Place of Origin: China Brand Name: Silence
Certification: ISO CE Model Number: BZ

Detail Information

Condition: New Warranty: 2 Years
Application: Workshop,Warehouse,Outdoor,Widely,factory Industry Working Voltage: 3Phase 380V 50Hz
Working Duty: A3-A6 Control: Remote Control And Pendent Button Control
High Light:

column mounted jib crane


swing arm jib crane

Product Description

Manufacture 5 Ton Outdoor Floor Mounted Jib Crane For Workshop Handling



Product presentation


Jib Crane is widely used to control or position a load in areas that are generally inaccessible to other material handling equipment.


They are designed to provide reliable long-life performance with minimum maintenance.


This jib crane provides 360-degree rotation. The flexible move mechanism makes you handle lifting tasks at ease.

5 Ton Floor Mounted Jib Cranes are directly fixed on the floor without any support to keep it upright.


To maintain it’s stability and not topple over it you fix it to a foundation of 3 to 5 feet deep and up to 4 to 10 feet square foundation base. The foundation depends on the load and reach.


The advantage of this type of crane is it doesn’t need a support column or structure and provides an optimal range of span and control compared to wall-mounted cranes and other types of Jib cranes.



Product superiority


1. Stable base: multiple chemical expansion screws are fixed, which are not easy to rust, and the stressed area is increased to ensure safety.


The stressed surface varies with different tonnage.


2. Rotation Angle: the rotation Angle can be 360° to meet the needs of different space environments.


3. Smooth operation and low noise: the machine runs smoothly, with low noise, flexible operation, and convenient installation and use.


4. Energy-saving, energy-saving, time-saving and labor-saving: it covers a small area and is easy to operate and maintain.


It is an energy-saving material hoisting equipment.



Using maintenance technology

1. Operators shall strictly abide by the operation rules of the crane, and overload is not allowed.

2. Terminal baffle is not allowed to be used as the normal parking method.

3. The chain or steel rope of the heavy object must be strong enough and securely tied.

4. Lifting and moving of heavy objects shall be carried out in the vertical condition.


It is prohibited to drag or forcibly lift heavy objects buried underground with electric hoist.

5. It is strictly forbidden to stand on the top of lifting heavy objects and strictly forbidden to walk on the bottom.

6. Do not hang heavy objects in the air after work or rest.





Technical parameters

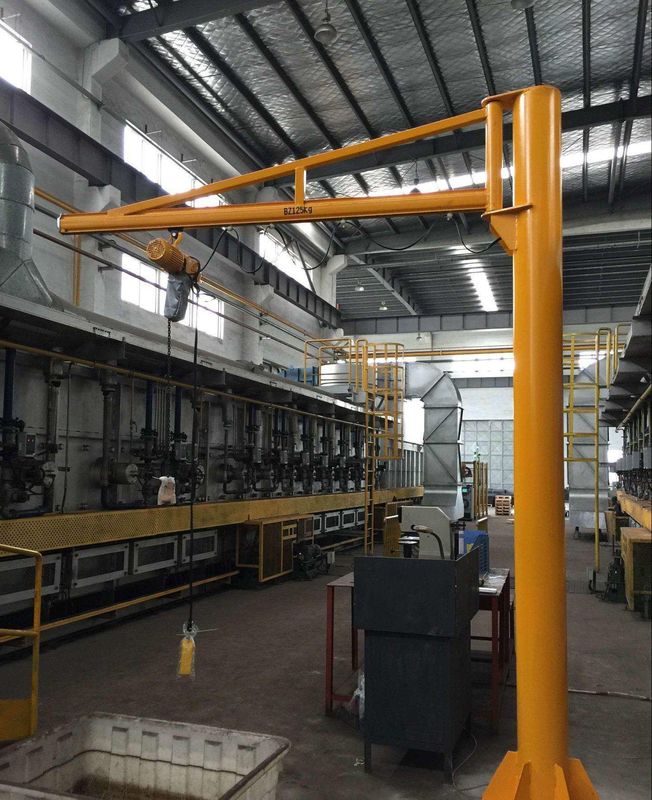

Outdoor Floor Mounted Jib Crane 5 Ton 3Phase 380V 50Hz For Workshop Handling 0

Model BZ0.5 BZ1 BZ2 BZ3 BZ5
Lifting capacity T 0.5 1 2 3 5
Max. Lifting height M 3 3 3 4 4
Max. Horizontal throw M 2.6 3-4 2.9-3.9 3.8 3.7
Max. Radius of gyration M 3.6 4-5 4-5 5 5
Max. Rotation moment T/M 3 6 12 18 27
Angle of revolution Degree 360
Lifting speed Normal m/min 8(4)
Slow m/min 0.8(0.4)
Traveling speed m/min 20
Angle of revolution speed m/min 1 0.75 0.7 0.9 0.6
