High Frequency Lifting Solenoid Electromagnet Steel Beam For Scrap Iron Factory
Contact Person : Iris
Phone Number : +86 19939938244
WhatsApp : +8619939938244
|Minimum Order Quantity :||1 set||Price :||Negotiable|
|Packaging Details :||packed by rain proof plastic cloth||Delivery Time :||10 work days|
|Payment Terms :||T/T, L/C||Supply Ability :||5 sets|
|Place of Origin:||China||Brand Name:||Silence|
|Contact Load:||High Power||Composite:||With Super Strong Neodymium Magnet|
|Type:||Automatic Operation||Color:||According To Your Requirements|
|Application:||Lifting Steel Scrap||Shape:||Rectangular Or Circle Lifting Magnet|
circular lifting magnet,
scrap lifting magnet

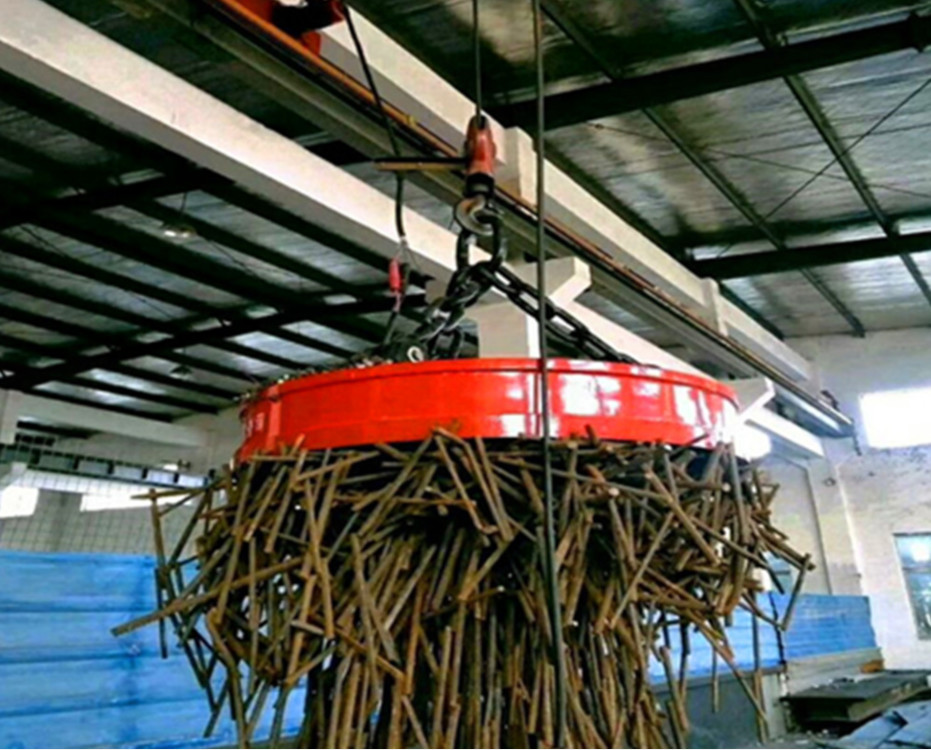

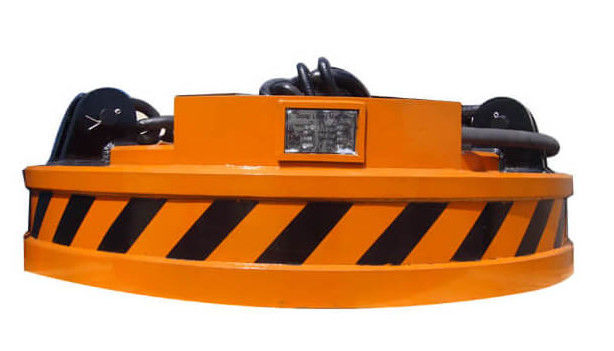

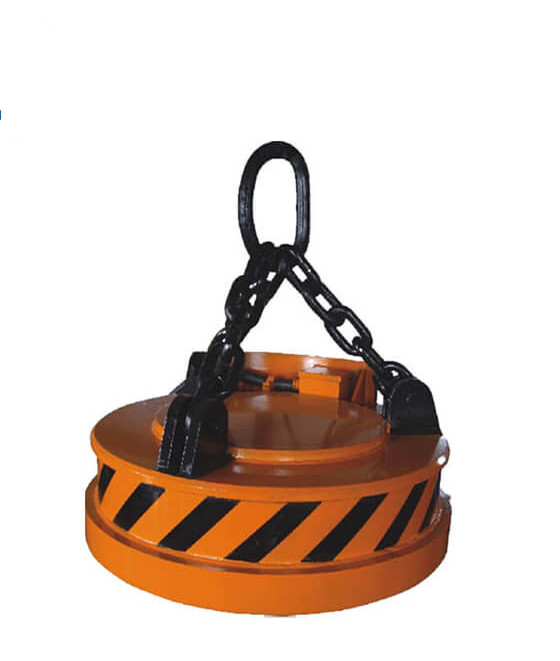

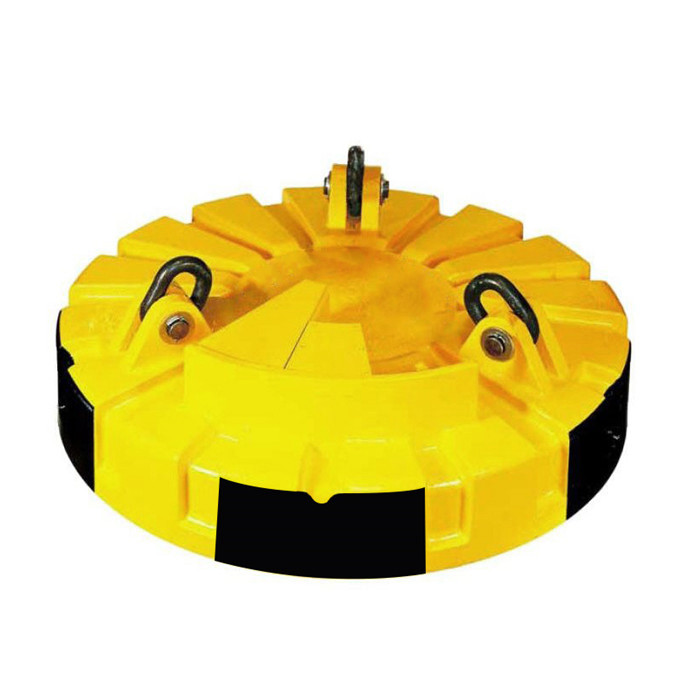

Scrap Electromagnet Lifter Lifting Magnet For Crane Lifting Magnet For Excavator
Lifting electromagnetic chuck also known as lifting electromagnet, the product by computer optimization design, magnetic circuit more scientific and reasonable, air gap magnetic density, magnetic penetration depth deep.
The coil protection adopts the rolled high manganese steel plate with good abrasion resistance and strong impact resistance. Lightweight, low energy consumption, large lifting weight, long service life.
High insulation grade, insulation treatment through a unique process, improve the electrical and mechanical properties of the coil, usually using constant voltage control. Strong excitation (DC-290v /200V) can further improve the hoisting capacity. Large electromagnets can also be overexcited (DC-350v /290V/200V), speed up the current rise speed, can play a stronger lifting capacity.
1. Used in metallurgy, mining, machinery, transportation and other industries, steel and other magnetic materials.
2. Used as the electromagnetic manipulator, clamping steel and other magnetic materials.
Adopt totally sealing structure with good property of moisture-proofing
Majorized design by computer with reasonable structure, light dead-weight, strong attraction force and low energy consumption
The energizing coils are processed by special technology to improve the electrical property and mechanical property. Heat-resistant grade of insulating material reaches grade C with long service life
Rated power-on sustaining rate of normal type electromagnet is increased from 50% to 80%,which improves the efficiency of the electromagnet
High temperature type electromagnet adopts unique method of heat protection, the temperature of the attached materials is increased from 600 °C to 700 °C, which expands application range of the electromagnet
Simple and convenient installation, operation and maintenance
Matters need attention--model selection
1. Please choose the normal temperature type when the temperature of suction and transport materials is lower than 100, and the high-temperature type when the temperature exceeds 100.
2. When the power supply duration exceeds 60, please choose the high-frequency type.
3. Please choose the diving type (diving depth of 100m) for the suction and hoisting materials in water.
The parameters of the submersible electromagnet are the same as that of normal temperature electromagnet. Therefore, it is not listed in the sample.
If the user needs a diving type, please specify it when ordering.
4. Ambient temperature: normal temperature -540, high temperature -580. The altitude shall not exceed 2000m.
5. Equipment matching: the power (current) of the rectifier control equipment is greater than or equal to the sum of the cold power (current) of single or multiple units.
Lifting electromagnetic crane combination mode
