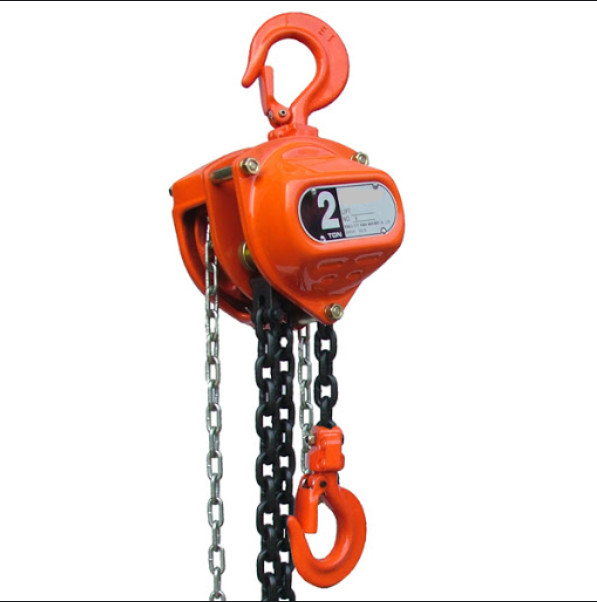

Mechanical Wear Resistant 20t Moveable Manual Chain Hoist

Minimum Order Quantity : 20 sets Packaging Details : High quality standard plywood box
Delivery Time : 7 days Payment Terms : T/T, L/C
Supply Ability : 100 sets
Place of Origin: China Brand Name: Silence
Certification: ISO CE Model Number: HSZ

Detail Information

Warranty: 1 Years Power Source: Hand Chain
Type: Moveable Marketing Type: New Product 2020
Usage: Construction Hoist Lift Speed: Manual
High Light:

Moveable Manual Chain Hoist

,

20t Manual Chain Hoist

,

Wear Resistant Hand Chain Hoist

Product Description



Hand Manual Pulley Block Manual Chain Pulley Block Hoists With Multiple Functions





Product description



Hand chain hoist is also called fairy hoist, chain hoist, chain reversing, heavy weight, manual hoist.



It is a hand-operated lifting machine that is easy to use and easy to carry. It is also called "loop chain hoist" or "reverse chain".



It is suitable for short-distance lifting of small equipment and goods.



The lifting weight is generally not more than 10T, the maximum can be up to 20T, and the lifting height is generally not more than 6m.



The shell material of the chain hoist is high-quality alloy steel, strong and wear-resistant, and high safety performance.



When the hand hoist lifts the heavy object upwards, the manual chain and the hand sprocket are rotated clockwise, and the hand zipper is pulled



counterclockwise when it is lowered, the brake seat is separated from the brake pad, the ratchet wheel is still under the action of the pawl, and the



five-tooth long shaft Drive the lifting sprocket to run in the opposite direction, so as to smoothly lift heavy objects



Main Features



1. In line with international standards, safe and reliable, durable.


2. Good performance and easy maintenance.


3. Large toughness, small size, light weight and easy to carry.


4. Small hand pull and high mechanical strength.


5. Compact and advanced structure, beautiful appearance.


6. Lift cargo in areas without power.


7. Powerful







Product Parameter



Model VC-B 0.5 VC-B 1 VC-B 1.5 VC-B 2 VC-B 3 VC-B 5 VC-B 10 VC-B 20
Capacity(t) 0.5 1 1.5 2 3 5 10 20
Standard lift(m) 2.5 2.5 2.5 3 3 3 3 3
Running test load 0.75 1.5 2.25 3 4.5 7.5 15 30
(t)
No.of falls of load 1 1 1 1 2 2 4 8
chain
Load chain 5 6.3 7.1 8 7.1 9 9 9
diameter(mm)
Dimension(mm) A 129 149.5 157.5 161.5 151.5 163 207 215
B 136 145 164.5 187 164.5 211 398 650
C 270 317 399 414 465 636 798 890
Net weight(kg) 8.4 12 16.2 20 24 41 79 193
Packing(L*W*H) 22x14x15 25x19x16 33x24x16 33x24x19 34.5x24x16 40x30x19 48x4218.5 78x68x20
(cm)

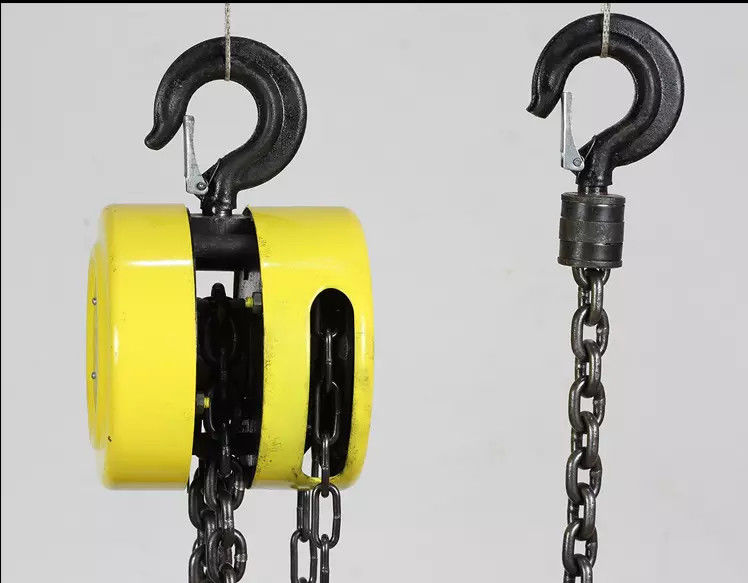

Mechanical Wear Resistant 20t Moveable Manual Chain Hoist 0



Workshop

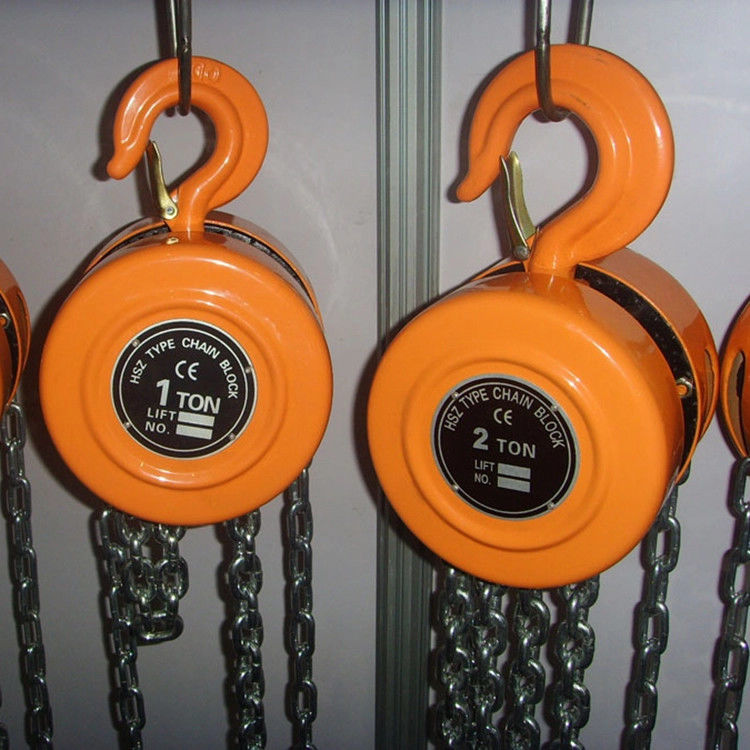

Mechanical Wear Resistant 20t Moveable Manual Chain Hoist 1



The factory test

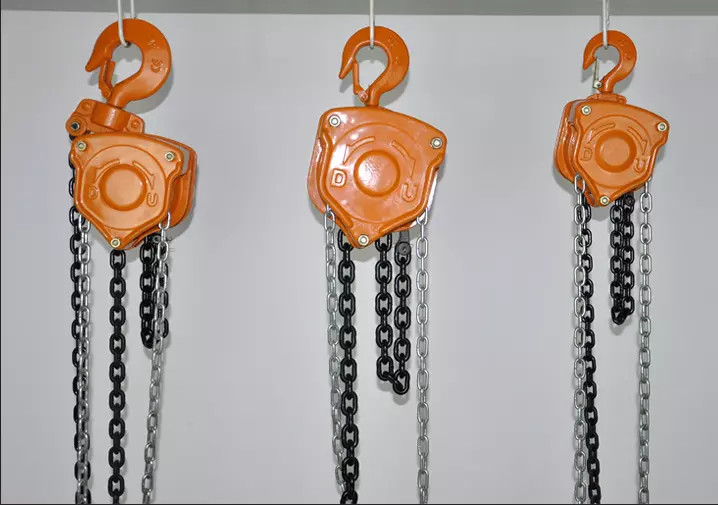

Mechanical Wear Resistant 20t Moveable Manual Chain Hoist 2
