Excavator Magnet Lifting Electromagnet Permanent Magnetic 2 Tons 900mm Diameter

Minimum Order Quantity : 1 set Price : Negotiable
Packaging Details : packed by rain proof plastic cloth Delivery Time : 10 work days
Payment Terms : T/T, L/C Supply Ability : 5 sets
Place of Origin: China Brand Name: Silence
Certification: ISO

Detail Information

Power: 800W Condition: New
Dimeter: 900mm Input Voltage: 24V
Working Temperature: Max.80 Centigrade Degree Application: Industrial Magnet
High Light:

circular lifting magnet

,

magnetic scrap lifter

Product Description

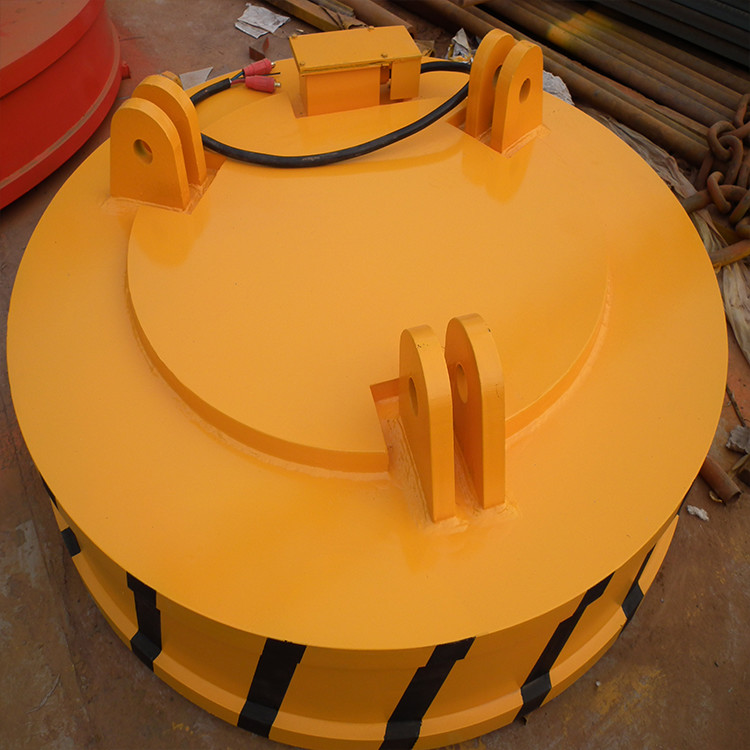

2 Tons 900mm Diameter Excavator Magnet Lifting Electromagnet Permanent Magnetic


Product presentation

 Electromagnetic crane can produce a strong magnetic field force, dozens of tons of heavy iron, iron wire, iron nails, scrap iron and other iron materials, do not box, do not pack and do not need to tie up, can be very convenient to collect and carry, not only the operation of labor-saving, and simplified work. Steel and machinery packed in wooden cases can be handled equally.

When the crane works, as long as the current in the electromagnet coil is not stopped, the lifted weight will not fall, the invisible magnetic force is more reliable than a strong chain. If the power is cut off for some reason, it will cause an accident, so some electromagnetic cranes are equipped with steel claw, to transport the heavy lifting, the strong steel claw will automatically fall down to tightly clasp them.

The crane cannot carry hot iron because hot steel cannot be magnetized. The large electromagnetic crane can lift nearly 100 tons of heavy objects at one time.
Electromagnetic crane work due to the loss of power, the lifting of the fall of the articles may cause harm, must be able to ensure the power supply of the electromagnetic sucker. Therefore, the lifting electromagnet of the electromagnetic crane should be powered by a special circuit.

Benefits


STRONG ATTRACTION FORCE AND ENERGY SAVING


NORMAL & HIGH TEMPERATURE OPTIONAL


SIMPLE OPERATION AND MAINTENANCE

Product feature

Adopt totally sealing structure with good property of moisture-proofing




Majorized design by computer with reasonable structure, light dead-weight, strong attraction force and low energy consumption




The energizing coils are processed by special technology to improve the electrical property and mechanical property. Heat-resistant grade of insulating material reaches grade C with long service life


Rated power-on sustaining rate of normal type electromagnet is increased from 50% to 80%, which improves the efficiency of the electromagnet


High-temperature type electromagnet adopts a unique method of heat protection, the temperature of the attached materials is increased from 600 °C to 700 °C, which expands the application range of the electromagnet


Simple and convenient installation, operation and maintenance


Matters need attention--model selection

1. Please choose the normal temperature type when the temperature of suction and transport materials is lower than 100, and the high-temperature type when the temperature exceeds 100.

2. When the power supply duration exceeds 60, please choose the high-frequency type.

3. Please choose the diving type (diving depth of 100m) for the suction and hoisting materials in water.

The parameters of the submersible electromagnet are the same as that of normal temperature electromagnet. Therefore, it is not listed in the sample.

If the user needs a diving type, please specify it when ordering.

4. Ambient temperature: normal temperature -540, high temperature -580. The altitude shall not exceed 2000m.

5. Equipment matching: the power (current) of the rectifier control equipment is greater than or equal to the sum of the cold power (current) of single or multiple units.

Excavator Magnet Lifting Electromagnet Permanent Magnetic 2 Tons 900mm Diameter 0

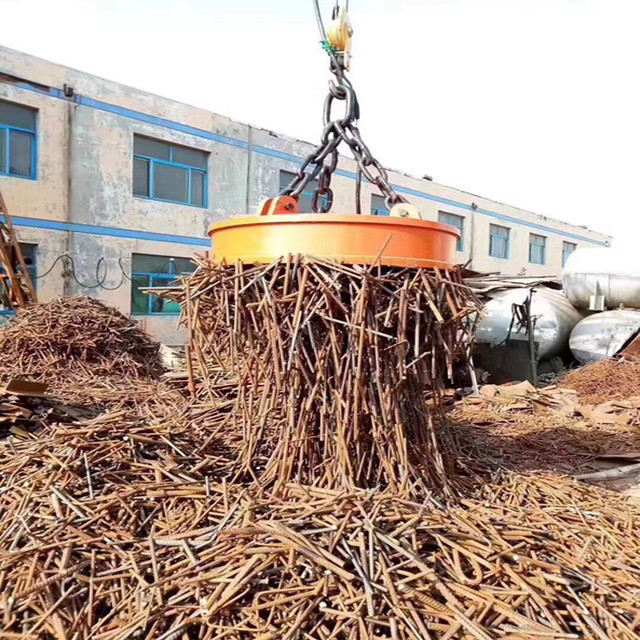

Applications





Electromagnets are used in conjunction with various hoisting machinery and are widely used for handling and carrying pig iron, scrap,

square billet, sheet, pipe and other ferromagnetic materials in steelmaking plants, rolling mills, scrap steel processing plants,

large foundry workshops, shipyards,

heavy machinery factories, steel warehouses, port terminals and stations.



Excavator Magnet Lifting Electromagnet Permanent Magnetic 2 Tons 900mm Diameter 1

Technical parameters



Model Diameter Current Power (kW) Lifting capacity (cold/hot state) (kgs)
(mm) (A) Steel ball Steel ingot Steel scrap
MW5-70L/1 700 15 3.3 2500 380/200 120/100
MW5-80L/1 800 18 3.96 3000 480/250 150/130
MW5-90L/1 900 26.6 5.85 4500 600/400 250/200
MW5-110L/1 1100 35 7.7 6500 1000/800 450/400
MW5-120L/1 1200 45.5 10 7500 1300/1000 600/500
MW5-130L/1 1300 54 11.9 8500 1400/1100 700/600
MW5-150L/1 1500 71.2 15.6 11000 1900/1500 1100/900
MW5-165L/1 1650 75 16.5 12500 2300/1800 1300/1100
MW5-180L/1 1800 102.4 22.5 14500 2750/2100 1600/1350
MW5-210L/1 2100 129 28.4 21000 3500/2800 2200/1850
MW5-240L/1 2400 154 33.9 26000 4800/3800 2850/2250
