35T 5m/min European Overhead Crane Double Beam Frequency Inverter Speed Control

Minimum Order Quantity : 1 set Price : USD4000-USD15000
Packaging Details : High quality standard exported plywood crate Delivery Time : 15-20 days
Payment Terms : Western Union, L/C, T/T Supply Ability : 300 sets/per month
Place of Origin: China Brand Name: Silence
Certification: ISO CE Model Number: LHO

Detail Information

Lifting Capacity: 35Ton Lifting Mechanism: European Electric Hoist Trolley
Working Duty: A5~A8 Lifting Speed: 0.8/5m/min
Trolley Speed: 0-20m/min Main Electrical Parts: International Famous Brand
High Light:

5m/Min European Overhead Crane

,

35T European Overhead Crane

,

35T 5m/Min double beam eot crane

Product Description

35T European Standard Overhead Crane Double Beam Frequency Inverter Speed Control



Description of Euro Double girder overhead crane



European Standard double girder overhead crane. the main girder includes girder box, platform, pantograph and trolley rail. The Main girder will be strictly fabricated and detected in our workshop according the design and national standard.


Crane trolley is assembled with motor, reducer, brake. trolley frame. drum, hook, pulley, rain cover and other parts. It includes lifting mechanism and cross traveling mechanism. This QD double girder overhead crane rely on the bridge frame along the workshop orbital direction moving longitudinal, the trolley along the main beam direction moving transverse and the hook lifting movement to work. High lifting capacity of this crane is designed with two hooks that means two independent sets of hoisting mechanism. The main hook is used to lift heavy objects while the auxilary used to lift light objects, the auxiliary can also be used for collaborative main hook tilting or tipping the material.


Whole crane before painting will be done the shot blasting, painting totally four layers including the one layer of priming paint, two layers of intermediate coat and one layer of finishing coat.



Technical parameter of Euro Double girder overhead crane



Lifting Capacity t 5 10 16 20 32 50
Span   10.5m~31.5m, and customizable
Lifting Height m 6m~24m, and customizable
Lifting Speed m/min 0.8/5 0.8/5 0.66/4 0.53/3.4 0.8/3.3 0.53/3.2
Trolley Traveling Speed m/min 2~20 2~20 2~20 2~20 2~20 2~20
Crane Traveling Speed m/min 3~30 3~30 3~30 3~30 3~30 3~30
Work Duty   A5
Power Supply   380V, 50Hz




Driver characteristics of Euro Double girder overhead crane



1.Operation of large crane adopts traid frequency conversion driver,thus its operation is smooth and stable.



2.All aluminum housing of driver is small in volume, light in weight, and with good heat radiation performance.



3.Modularized design, direct driver installation, compact structure and high accuracy.



4.Unique electromagnetic design thus efficiently reduces electric current and extends service life.



5.Standard thermo sensitive switch, thus effectively uplifts safety grade.



6.Power input adopts heavy-load connector, thus the unloading is convenience and fast, safe and easy to operate.



Electric control system of Euro Double girder overhead crane



1.Large crane electric control housing adopts standardized design, thus easy to replace and install.



2.Major electric element adopts international well-known brands such as Schneider and Simons etc.



3.Large crane limit standard equipment adopts Italian GG original importing brand, to ensure effectively safe operation and stop of crane.



4.Power supply of crane, big or small, adopts parallel installation of C type steel double track, enables little resistant and stable operation.

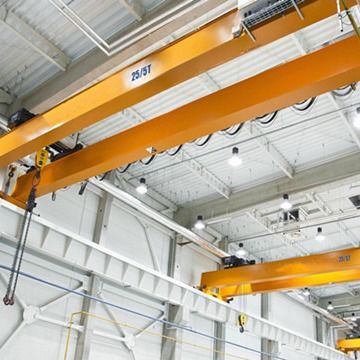

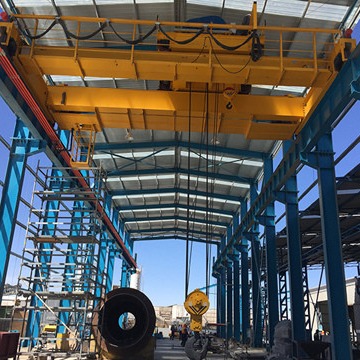

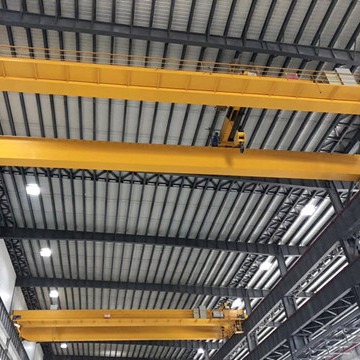

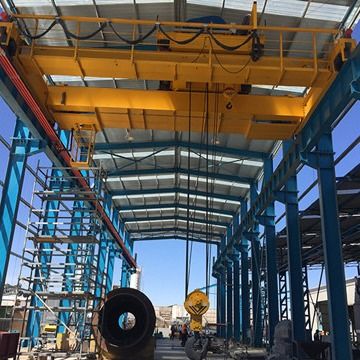

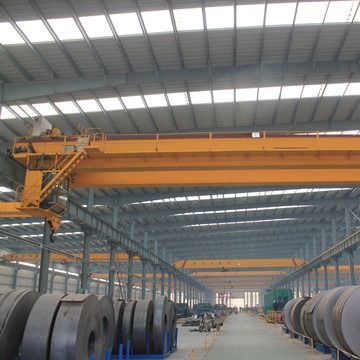

35T 5m/min European Overhead Crane Double Beam Frequency Inverter Speed Control 0





Package and delivery





35T 5m/min European Overhead Crane Double Beam Frequency Inverter Speed Control 1
