Steerable Battery Powered 2.3t Material Transfer Cart

Steerable Battery Powered 2.3t Material Transfer Cart
Steerable Battery Powered 2.3t Material Transfer Cart Steerable Battery Powered 2.3t Material Transfer Cart Steerable Battery Powered 2.3t Material Transfer Cart Steerable Battery Powered 2.3t Material Transfer Cart

Large Image :  Steerable Battery Powered 2.3t Material Transfer Cart

Product Details:

Place of Origin: China
Brand Name: Silence
Certification: ISO CE
Model Number: KPX

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: USD 3000-30000/set
Packaging Details: packed by rain proof plastic cloth
Delivery Time: 30 days
Payment Terms: L/C, T/T
Supply Ability: 5 sets
Detailed Product Description
Name: Material Transfer Cart Running Speed: 0-20m/min
Certificates: SGS/CE/ISO9001 Size: 70 In. W X 30 In. D X 48 In. H
Oem: Accepted Warranty: 12 Months
High Light:

2.3t Material Transfer Cart

,

Steerable Material Transfer Cart

,

2.3t battery transfer cart

2020 Steerable Industrial Battery Powered Material Handling Transfer Cart

Description of Material Transfer Cart

The battery powered trackless transfer cart have been conceived and built to realize their utmost working flexibility.

Because they have no predefined path and can steer in any direction and move on any kind of floor.

And these transfer car are very useful to bring the heavy loads where overhead cranes cannot arrive.

Electric steel coil transfer cart is one of our common and mature product, which is customized as per customers' true demand.

Such as power supply, operation system, control system, rail or trackless, steerable, wheelstype, cart frame structure and so on, and then provide proper solution to you.

Technical parameters Of Material Transfer Cart


ModleBWP-2TBWP-10TBWP-30TBWP-50TBWP-80TBWP-100T
Table Size (m)2.0*1.5*0.452.3*2.0*0.553.5*2.2*0.75.5*2.6*0.86.5*2.8*0.956.6*3.0*1.2
PowerMaintenance Free Battery
Wheel Base1080mm1650mm1650mm2000mm1950mm2000mm
Wheel Dia.250mm350mm450mm600mm600mm600mm
Running Speed0-20m/min0-20m/min0-20m/min0-20m/min0-20m/min0-20m/min
Motor Power2*1.2kw2*2.2kw2*5.5kw2*7.5kw30kw40kw
Battery Capacity250Ah250Ah450Ah500Ah800Ah1000Ah
Battery Volatge24v48v48v48v72v72v
Max Wheel Load14.4Kn42.6Kn110.4Kn174Kn185Kn190Kn
Reference weight2.3t4.2t6.8t8t14.6t26.8t


Remark: the technical parameter of the material handling trackless transfer cart only can be make reference above.
All can be customized manufacturing as per your true demand. please contact us if any doubt.
Our professinal engineer will help you solve the transfer problems in any time.

Features of Material Transfer Cart

1.The industrial transfer cart is battery powered, they represent the best solution for all those appliances with delicate handling problems in limited places.(360 degree turning flexibly)
2.The steerable trackless transfer car is very flexible since it can move freely around the plant as indoor as outdoor.
3.It is equipped with non-marking wheels to avoid any mark on floor.(Imported PU wheel or customized)
4.Easy operation make transfer cart perfect to meet the most important requirements: where space is very limited and paths are strictly constrained.
5.Dimensions,capacity, loading platform superstructure, speed and many others features can be customized as per client request.

Advantage of Material Transfer Cart:

1. High level automation(self propelled/steerable)
2. The largest capacity can reach to 500t
3. Safe parts are installed in the transfer cart(warning light, e-stop, buffer...)
4. Robust sturdy cart frame
5. AC/DC electric engine , diesel engine or pneumatic engine
6. Excellent gear reducer and motor with high quality, assemblied together perfectly
7. Remote control&hand pendant control make the opration more convenient.
8. The speed can be adjusted
9. Easy operation and maintenance
10. Famous brand parts, guarantee the quality and prolong the using lifetime
11. Low noise and do not pollute the environment

Details of Material Transfer Cart

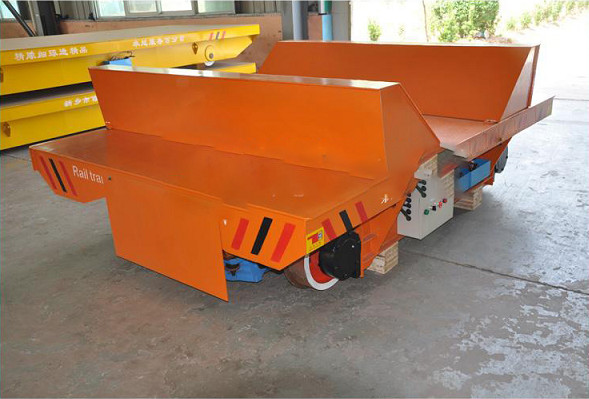

Steerable Battery Powered 2.3t Material Transfer Cart 0

Application of Material Transfer Cart

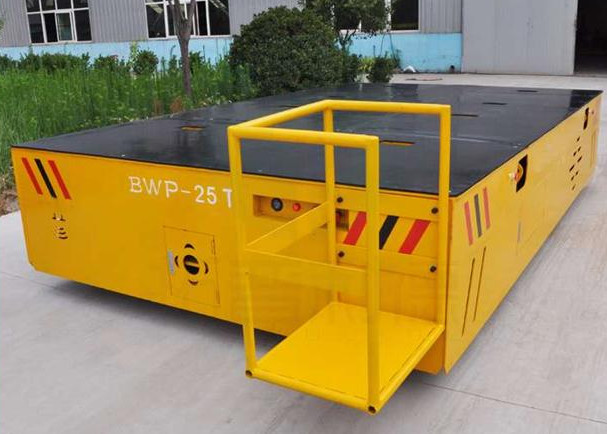

Steerable Battery Powered 2.3t Material Transfer Cart 1

Packing and shipping

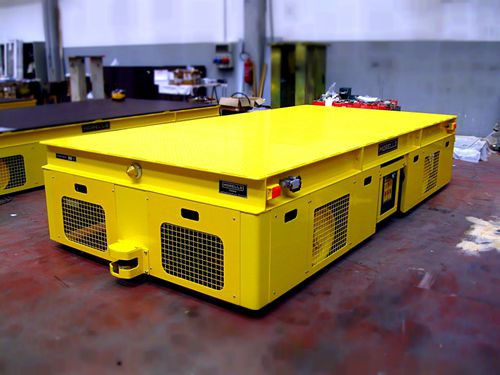

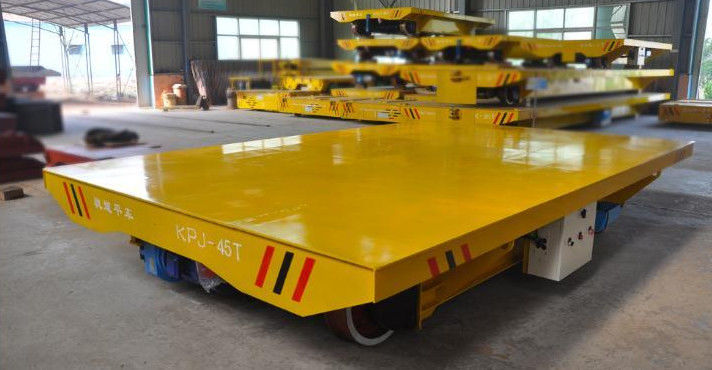

Steerable Battery Powered 2.3t Material Transfer Cart 2Steerable Battery Powered 2.3t Material Transfer Cart 3
