Heavy Duty Cable Drum Mobile Q235 100T Material Transfer Cart

Heavy Duty Cable Drum Mobile Q235 100T Material Transfer Cart
Heavy Duty Cable Drum Mobile Q235 100T Material Transfer Cart Heavy Duty Cable Drum Mobile Q235 100T Material Transfer Cart Heavy Duty Cable Drum Mobile Q235 100T Material Transfer Cart Heavy Duty Cable Drum Mobile Q235 100T Material Transfer Cart

Large Image :  Heavy Duty Cable Drum Mobile Q235 100T Material Transfer Cart

Product Details:

Place of Origin: China
Brand Name: Silence
Certification: ISO
Model Number: KPJ

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: USD 3000-30000/set
Packaging Details: packed by rain proof plastic cloth
Delivery Time: 30 days
Payment Terms: L/C, T/T
Supply Ability: 20 sets
Detailed Product Description
Material: Q235,Steel Plate & Power System Color: Customized,as Your Needs
Structure: Platform Application: Material(steel Coil,pipe) Or Equipment Handling
Capacity: 1-300T Oem: Acceptable
High Light:

100T Material Transfer Cart

,

Q235 Material Transfer Cart

,

Q235 material handling cart

100 Ton Custom Heavy Duty Cable Drum Mobile Industrial Material Transfer Cart


Configuration instruction

Silence designed and manufactured the industrial material transfer cart and provide innovative handling solution with more than 16

years'experience.the transfer cart can be used in industry plant, port, workshop, production line and so on to transport ladle, coil, mold, steel

products, workpiece and so on.All the solution are designed as per customers true demand.

Remark: Dimensions,capacity, loading platform superstructure, speed and many others features can be customized as per client request despite

running on indoor or outdoor, high temperarture or explosive environment.

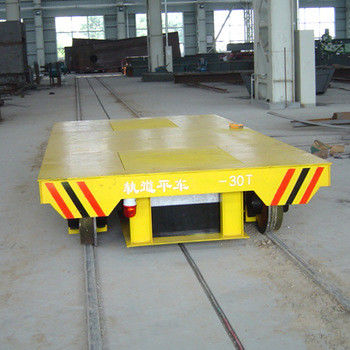

Heavy Duty Cable Drum Mobile Q235 100T Material Transfer Cart 0
The cable drum transfer cart is a good choice if meeting the following features:

1. The running distance of the transfer cart is less than 200m

2. The transfer cart is required to run on the rails

3. The whole working route needn't turn

4. The working frequency is higher

5. The transfer cart is required easy operation with low cost

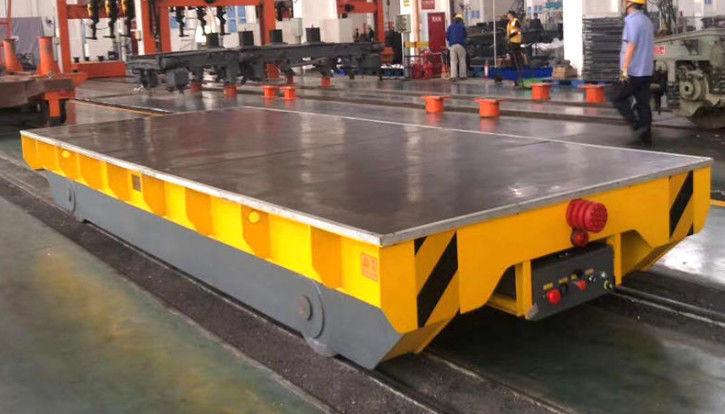

 Heavy Duty Cable Drum Mobile Q235 100T Material Transfer Cart 1
Detailed parts:
1. The steel plate material of electric flat car is q235-B
2, electric flat car whole vehicle insulation treatment
3. The electric flat car is powered by the running track
The motor:
1. The DC motor has its own brake
2. Dc motor brake is electromagnetic brake
3. The bearing of dc motor adopts IKO
The reducer:
1. The noise of reducer is very low
2. The installation of reduction gear is very convenient
3. Running speed of electric flat car: 20m/min


Product Factures
For any tonnage, any working time and slow running speed, hydraulic lifting devices can also be installed according to specific requirements, with

compact structure and low track requirements, so the cost is low.

Non-standard production can also be added according to specific requirements, such as special devices.

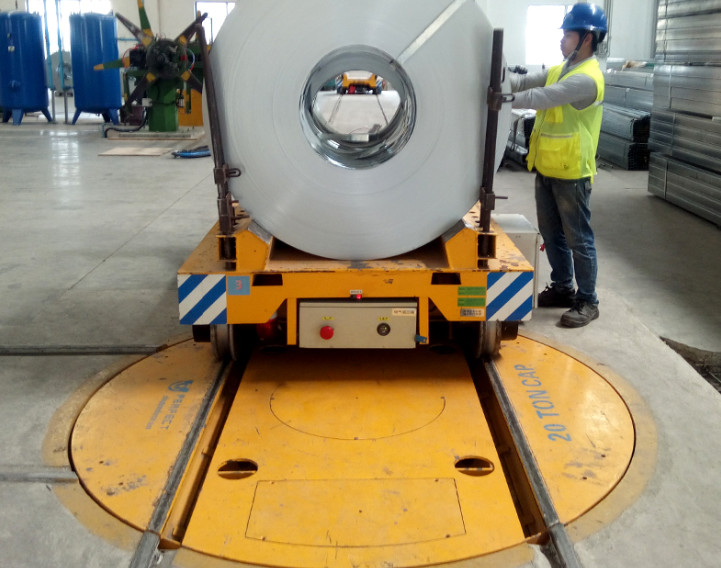

Heavy Duty Cable Drum Mobile Q235 100T Material Transfer Cart 2

Technical parameters


Modle KPJ-10T KPJ-30T KPJ-50T KPJ-80T KPJ-100T KPJ-150T
Table Size (m) 3.6*2.0*0.5 4.5*2.2*0.65 5.5*2.5*0.7 6.0*2.6*0.9 6.5*2.8*1.0 10*3.0*1.2
Power Cable Drum
Rail inner Gauge 1435mm 1435mm 1435mm 1800mm 2000mm 2000mm
Wheel Dia. 350mm 400mm 500mm 600mm 600mm 600mm
Running Speed 25m/min 20m/min 20m/min 20m/min 20m/min 20m/min
Motor Power 1.5kw 4kw 5.5kw 7.5kw 11kw 15kw
Max Wheel Load 42.6Kn 110.4Kn 174Kn 278.4Kn 343.8Kn 265.2Kn
Reference weight 4t 6.5t 7.8t 12.3t 14.1t 26.2t
Recommend Rail P18 P38 P43 P50 QU100 QU100



Product application

The transfer cart can be applied all kinds of environment.
Such as high temperature,dust, explosion proof, waterproof ,spray paint, corrosion,

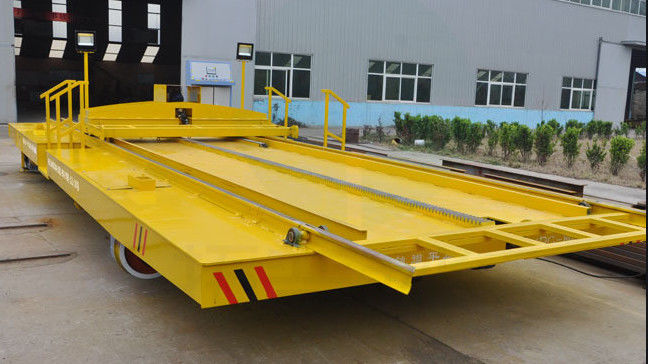

Heavy Duty Cable Drum Mobile Q235 100T Material Transfer Cart 3
