Industrial Platform Material Transfer Cart , Railway Coil Cable Drum Load Transfer Trolley

Industrial Platform Material Transfer Cart , Railway Coil Cable Drum Load Transfer Trolley
Industrial Platform Material Transfer Cart , Railway Coil Cable Drum Load Transfer Trolley Industrial Platform Material Transfer Cart , Railway Coil Cable Drum Load Transfer Trolley Industrial Platform Material Transfer Cart , Railway Coil Cable Drum Load Transfer Trolley Industrial Platform Material Transfer Cart , Railway Coil Cable Drum Load Transfer Trolley

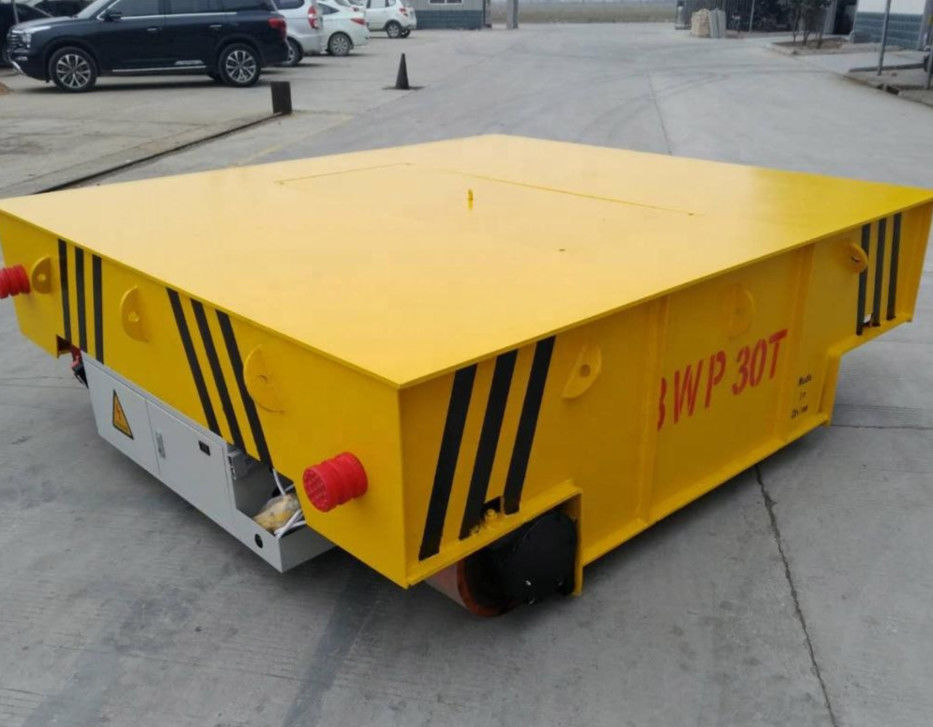

Large Image :  Industrial Platform Material Transfer Cart , Railway Coil Cable Drum Load Transfer Trolley

Product Details:

Place of Origin: China
Brand Name: Silence
Certification: ISO CE
Model Number: KPX

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: packed by rain proof plastic cloth
Delivery Time: 15 days
Payment Terms: L/C, T/T
Supply Ability: 5 sets
Detailed Product Description
Detailed: High-Duty Rail Transfer Cart Used In Heavy Industry Style: Square
Keyword: Transfer Cart;electric Flat Car Port: Tianjin, Qingdao
Structure: Platform Feature: Easy Moving,Battery Operated
High Light:

electric transfer cart

,

industrial transfer car

30 Ton Industrial Platform 40 Ton Railway Coil Cable Drum Transfer Cart Price


Functional description


Electric rail car: The most commonly used name is electric flat car, also known as track flat car, electric flat car, track flat car, track flatbed, level car, trolley, over-street, ground climbing, etc., is a kind of factory Rail electric transport vehicle, first of all it is an electric vehicle, which runs automatically under electric drive, and secondly it is a vehicle that runs on the track and needs to lay tracks on the ground.



There are seven main technical parameters of electric railcar: power supply mode, load tonnage, table size, table height, track length, track spacing, and operation mode.



The most important technical parameters are power supply mode and load tonnage, and electric rail car to supply power. The method is to determine its model, and its specifications are determined by the load tonnage. The model can be supplemented by the track spacing and operation mode.





Product features

1. The running distance of the transfer cart is less than 200m

2. The transfer cart is required to run on the rails

3. The whole working route needn't turn

4. The working frequency is higher

5. The transfer cart is required easy operation with low cost


Product superiority

1. This series of flat cars has the advantages of safety, mobility and flexibility, the operation is not limited by distance, the speed is adjustable, the dc motor of flat cars has the advantages of stable start, large start torque, small impact on the reducer, low voltage, long service life and so on.

The track laying requirements are not high, suitable for use frequency is not high, long-distance transport occasions.

2. The transfer cart adopts dc motor, suitable for frequent use, with higher safety and mobility flexibility.

It can be equipped with hard tooth surface reducer to make the maintenance of flat car easier.

3. This series of electric flat car mechanism is relatively simple, convenient for maintenance, easy to disassemble and assemble, strong bearing capacity, long service life, low requirement for track laying, low cost, suitable for harsh environment, high-temperature environment, and other occasions.

4. Transfer cart is suitable for all kinds of environment, can work in indoor, outdoor, flammable and explosive environment, can also be added to the flat car hydraulic device, buffer device. Simple operation, in the case of transport distance is far, can be added on the flat car with the operating platform, to meet the customer long-distance transport, to achieve a humanized design.

5. PLC control system can be added to the flat car, automatic rail car, greatly increase the work efficiency.

Product details

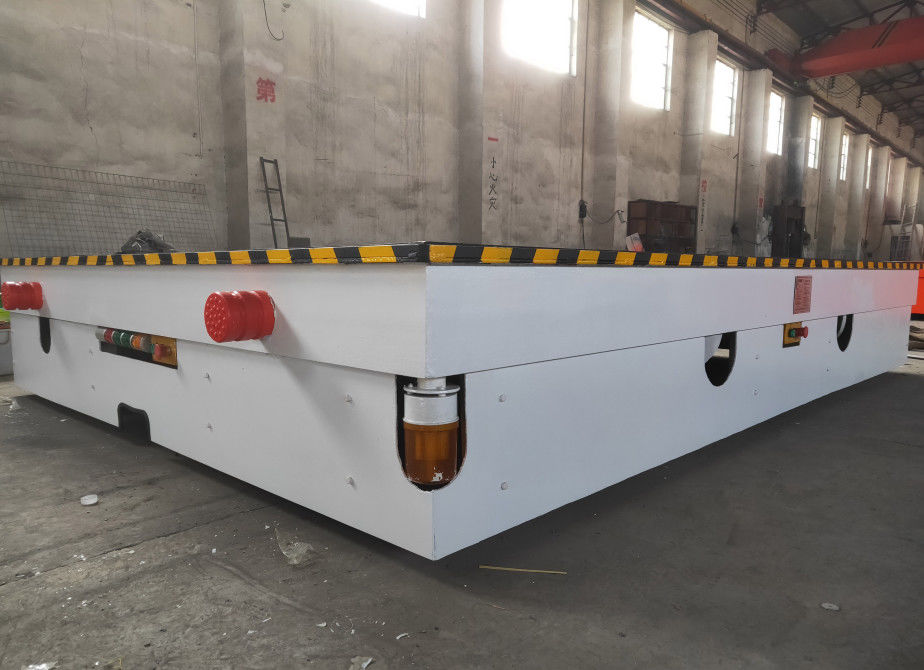

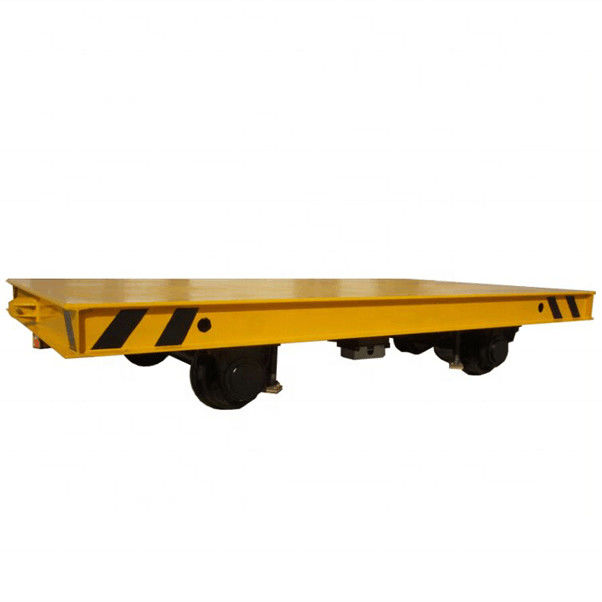

Industrial Platform Material Transfer Cart , Railway Coil Cable Drum Load Transfer Trolley 0



Technical parameters



Table Size (m) Length (L) 2000 3500 3600 4000 4000 4500 4500 5000 5500 5600
Width (W) 1500 2000 2000 2000 2200 2200 2200 2500 2500 2500
Height (H) 450 450 500 500 600 600 600 650 650 750
Wheel Base(mm)   1200 2500 2600 2800 3200 3200 3200 4200 4200 4300
Rail Inner Gauge (mm)   1200 1435 1435 1435 1435 1435 1435 1435 1435 1435
Wheel Diameter(mm)   Φ270 Φ300 Φ300 Φ350 Φ400 Φ400 Φ400 Φ500 Φ500 Φ600
Wheel Quantity   4 4 4 4 4 4 4 4 4 4
Ground Clearance(mm)   50 50 50 50 50 50 50 50 50 75
Motor Power(KW)   1 1.2 1.6 2 2.2 3 3.5 4 5 6.3
Running Distance(m)   80 80 80 80 80 80 80 60 50 50
Max Wheel Load(KN)   14.4 25.8 42.6 64.5 77.5 94.5 110.5 142.5 174 221.4
Reference Weight(t)   2.8 3.6 4.2 5.5 5.9 6.5 6.8 7.6 8 10.8
Recommended Rail Model   P15 P18 P18 P24 P24 P38 P38 P43 P43 P50


Application

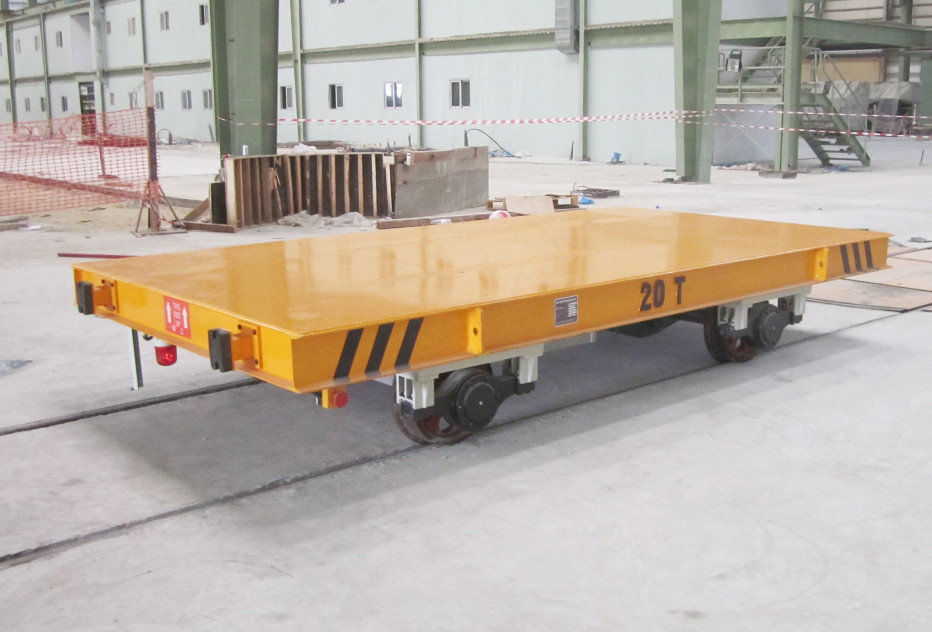

Industrial Platform Material Transfer Cart , Railway Coil Cable Drum Load Transfer Trolley 1
