Smelter Motorised Trolleys Carts 100 Ton Stable Start Small Impact Long Service Life

Smelter Motorised Trolleys Carts 100 Ton Stable Start Small Impact Long Service Life
Smelter Motorised Trolleys Carts 100 Ton Stable Start Small Impact Long Service Life Smelter Motorised Trolleys Carts 100 Ton Stable Start Small Impact Long Service Life Smelter Motorised Trolleys Carts 100 Ton Stable Start Small Impact Long Service Life Smelter Motorised Trolleys Carts 100 Ton Stable Start Small Impact Long Service Life

Large Image :  Smelter Motorised Trolleys Carts 100 Ton Stable Start Small Impact Long Service Life

Product Details:

Place of Origin: China
Brand Name: Silence
Certification: ISO
Model Number: BXC

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: packed by rain proof plastic cloth
Delivery Time: 15 days
Payment Terms: L/C, T/T
Supply Ability: 5 sets
Detailed Product Description
Wheel: Four-wheel Color: Custom Paint Color
Dimension: 4000*2200*600/Customized Safety Device: Warning Light,Buffer,Limit Switch,Guard Railing
Running Speed: 0-30m/min (Adjustable) Power Source: Conductor Rail
High Light:

on rail transfer cart

,

industrial transfer car

Hot Sale Smelter Motorized Coil Handling Cart Transfer Trolley 100 Ton Price


Functional description

The Smelter Motorized Coil Handling Cart Transfer Trolley are powered by battery.There are mounted V-shape and roller on industry manufacturing track carriage to protect the coil from falling down from the industry manufacturing track carriage.

The V-shape supporting can be designed according to coil diameter,and roller distance can be adjusted as per coil dia.V-shape supporting and roller can be removable from the industry manufacturing track carriage.

We can design coil industry manufacturing track carriage according to the workshop application,material dimension.It can be applied in all kinds of occasion even severe working environment.


Product features

1. The running distance of the transfer cart is less than 200m

2. The transfer cart is required to run on the rails

3. The whole working route needn't turn

4. The working frequency is higher

5. The transfer cart is required easy operation with low cost


Product superiority

1. This series of flat cars has the advantages of safety, mobility and flexibility, the operation is not limited by distance, the speed is adjustable, the dc motor of flat cars has the advantages of stable start, large start torque, small impact on the reducer, low voltage, long service life and so on.

The track laying requirements are not high, suitable for use frequency is not high, long-distance transport occasions.

2. The transfer cart adopts dc motor, suitable for frequent use, with higher safety and mobility flexibility.

It can be equipped with hard tooth surface reducer to make the maintenance of flat car easier.

3. This series of electric flat car mechanism is relatively simple, convenient for maintenance, easy to disassemble and assemble, strong bearing capacity, long service life, low requirement for track laying, low cost, suitable for harsh environment, high-temperature environment, and other occasions.

4. Transfer cart is suitable for all kinds of environment, can work in indoor, outdoor, flammable and explosive environment, can also be added to the flat car hydraulic device, buffer device. Simple operation, in the case of transport distance is far, can be added on the flat car with the operating platform, to meet the customer long-distance transport, to achieve a humanized design.

5. PLC control system can be added to the flat car, automatic rail car, greatly increase the work efficiency.

Product details

Smelter Motorised Trolleys Carts 100 Ton Stable Start Small Impact Long Service Life 0

Technical parameters

Smelter Motorised Trolleys Carts 100 Ton Stable Start Small Impact Long Service Life 1

ModelBXC-2TBXC-20TBXC-50TBXC-63TBXC-100TBXC-150T
Capacity(T)2205063100150
Wheel base(mm)120028004200430049007000
wheel back distance(mm)120014351435143520002000
Wheel diameter(mm)270350500600600600
Number of wheel(pcs)444448
Ground clearance(mm)505050757575
Speed(m/min)0-250-200-200-200-200-18
Power(Kw)12.2581015
Accumulator capacity(A/H)180180330400440600
Battery voltage(V)244848727272

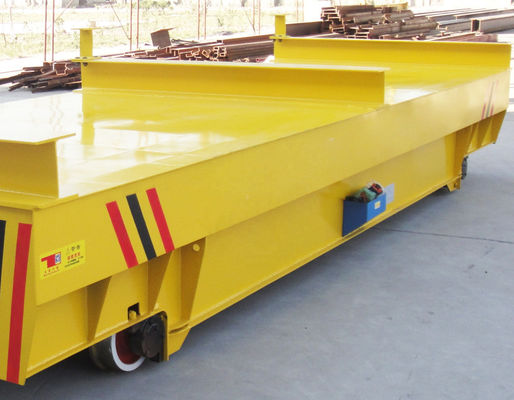

Picture shows

Smelter Motorised Trolleys Carts 100 Ton Stable Start Small Impact Long Service Life 2Smelter Motorised Trolleys Carts 100 Ton Stable Start Small Impact Long Service Life 3
