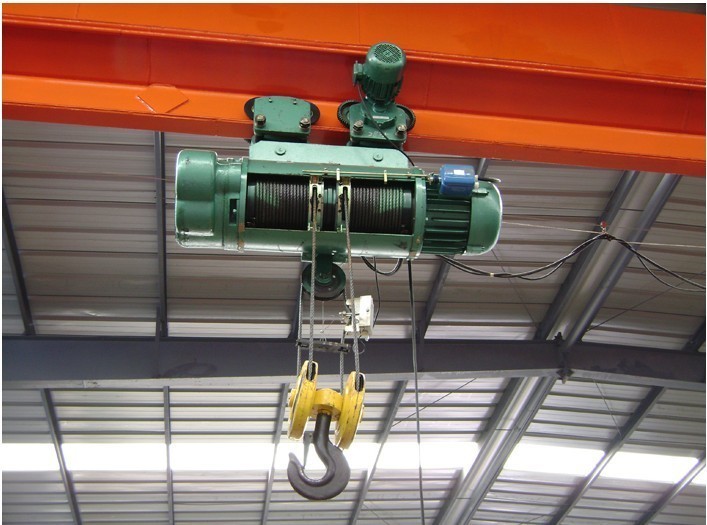

Wireless Remote Electric Rope Hoist 1 - 10 Ton Stable Operation Easy Maintenance

Minimum Order Quantity : 1 set Price : Negotiable
Packaging Details : High quality standard exported plywood crate Delivery Time : 7 days
Payment Terms : T/T, L/C, Western Union Supply Ability : 300 sets/per month
Place of Origin: China Brand Name: Silence
Certification: ISO CE Model Number: CD

Detail Information

Trolley Speed: 20m/min Lift Speed: 7m/min, 8m/min, 0.7/7m/min, 0.8/8m/min
OEM: Accept Control Method: Pendant Control, Remote Control
Working System: M3-M4 Color: Customised
Ambient Temperature: -25~40
High Light:

electric lifting hoist


electric cable hoist

Product Description

Good Quality Wireless Remote Cd1 Electric Wire Rope Hoist 1 Ton 2 Ton 5ton 10ton



General introduction

CD/ MD series electric hoist is an improvement electric hoist that it can completely resolved the problem of that the electric hoist reaches the up limited position, guide rope device is embrittle ent cracking, the wire rope is disorder, the reducer is losing oil, the frequent trouble about electric and so on


Product Parameter


type 0.25ton 0.5ton 1ton 2ton 3ton 5ton 10ton
capacity (t) 0.25 0.5 1 2 3 5 10
lifting height(m) 3-9 6-12 6-30 6-30 6-30 6-30 6-30
lifting speed(m/min) 8(8/0.8) 8(8/0.8) 8(8/0.8) 8(8/0.8) 8(8/0.8) 8(8/0.8) 7(7/0.7)
traveling speed(m/min) 20 20 20 20 20 20 20
wire rope type 5.1NAT-6*37+FC 1670 5.1NAT-6*37+FC 1670 7.4NAT-6*37+FC 1670 11NAT-6*37+FC 1670 13NAT-6*37+FC 1670 15NAT-6*37+FC 1670 15NAT-6*37+FC 1670
I-beam track model 16-22b 16-28b 16-28b 20a-32c 20a-32c 25a-63c 25a-63c
circle orbit minimum radius(m) 0.8 1.5 1.5-4 2-4 2-4 2.5-5 3.5-9
voltage 380 380 380 380 380 380 380
frequency 50 50 50 50 50 50 50
Phase 3 3 3 3 3 3 3
























This parameter is for reference only, specific requirements can contact us for customization.


Product feature

Lifting motor

■ Asynchronous conical rotor motor is installed on electric wire rope hoist and the inside brake is also ensure the safety of the hoist

■ Large toque, stable operation, compact structure, small size, light weight

■ Effective braking, safe operation, easy maintenance

■ High safety with the B or F class insulation, IP44, IP54 protection

Travelling motor

Electric wire rope hoist travelling motor has the features of stable starting, effective braking, full coverage of class B or F insulation, IP44, IP54 protection, IC0141 self-cooling and so on.

Lifting reducer

■ High quality three-level dead axle helical gear rotating body ensures long serving life

■ Gear and axle is made of high intensity alloy steel which had been treated with heat

■ Box and cover are made from superior cast iron

■ Lifting reducer has great speed ration and high accuracy

■ Lifting reducer has compact structure, and is quiet during operation with high working efficiency.

■ It is easy to assemble and disassemble

Rope drum

■ Weld rope drum is light in terms of dead weight

■ Coil casing is made from superior cast iron with high intensity

■ Rope guide is used to avoid intertwining of wire rope and ensure the normal operation of electric wire rope hoist

■ No disturbance between rope sockets and has long working life

■ The rope drum is high quality and is easily interchangeable

Steel wire rope

Electric wire rope hoist rope adopts GB/ T 20118-2006 (6 * 37+1) hoisting wire rope, which has the characteristics of good tensile resistance, good flexibility, good impact resistance and long working life.


Electric wire rope hoist hook is made of high quality carbon steel, high safety and can withstand triple static load. Electric wire rope gourd with spring-type strong safety lock, not loose slings.

Fire stopper

Fire stopper with adjustable mechanical memory structure, high sensitivity, with limited block to prevent hook top impact. The fire-proof plug has the advantages of high safety and durability, convenient installation and debugging, sensitive reaction and small size.

Overload limiter

■ Present the data based on your electric wire rope hoist working conditions

■ Show accurate weight value clearly

■ Modular, low power design, jam proof

■ Ensure the safe operation of electric wire rope hoist

■ Long service life of appliance components

Electrical part

■ Control cabinet is with reasonable layout and easy to be repaired

■ Protection class IP55

■ Optional main power source is equipped on electric wire rope hoist

■ Safe trolley conductor with high conductivity and small pressure drop

■ Light dead weight, easy to install

■ Collector ensure continuing power supply

Control Mode

Electric wire rope hoist has two control methods: pendant control and remote control, with simple, safe, waterproof and anti-fall features.

​Product usage


Wire rope hoist is widely used in the following fields:


1. Used for lifting heavy objects in light textile industrial warehouses, hospitals, shops and workshops of food factories. And the river wharves for heavy loads.


2. It is used for hoisting prefabricated components and cement pipes in the construction industry and pipeline operation.


3. Used for material warehouse and cargo yard, hoisting and transporting materials, stacking and palletizing. For installation of equipment and lifting of heavy objects in the workshop of machinery factory and repair shop.
