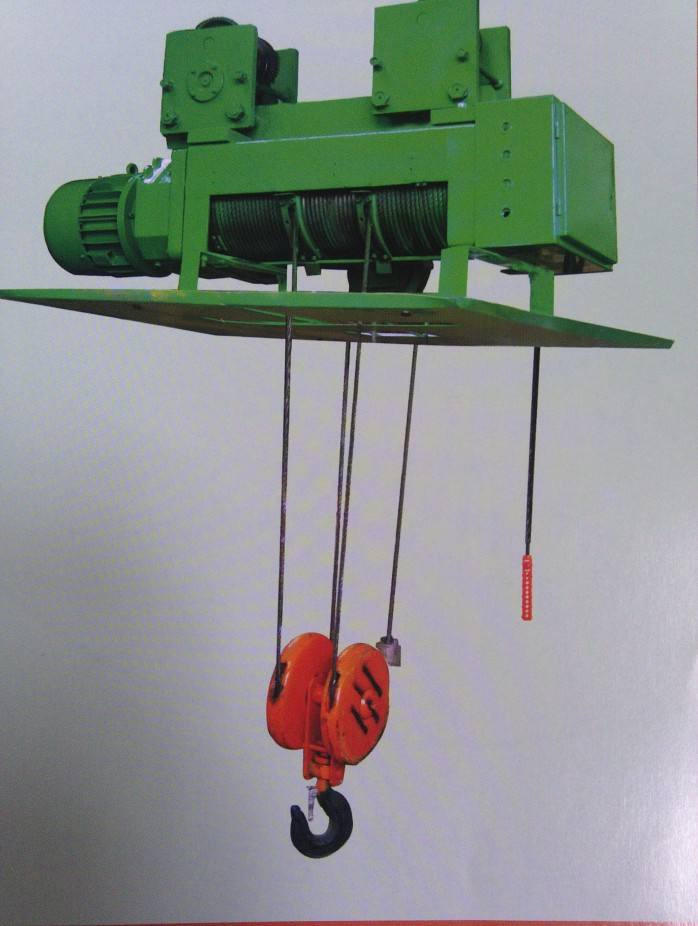

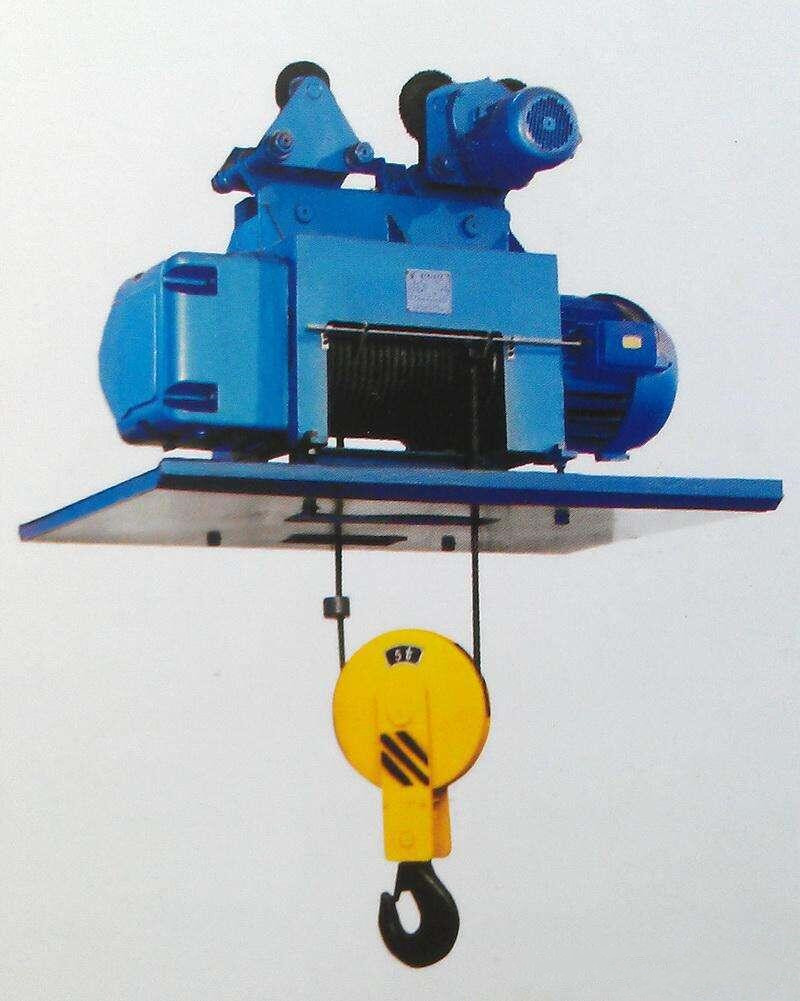

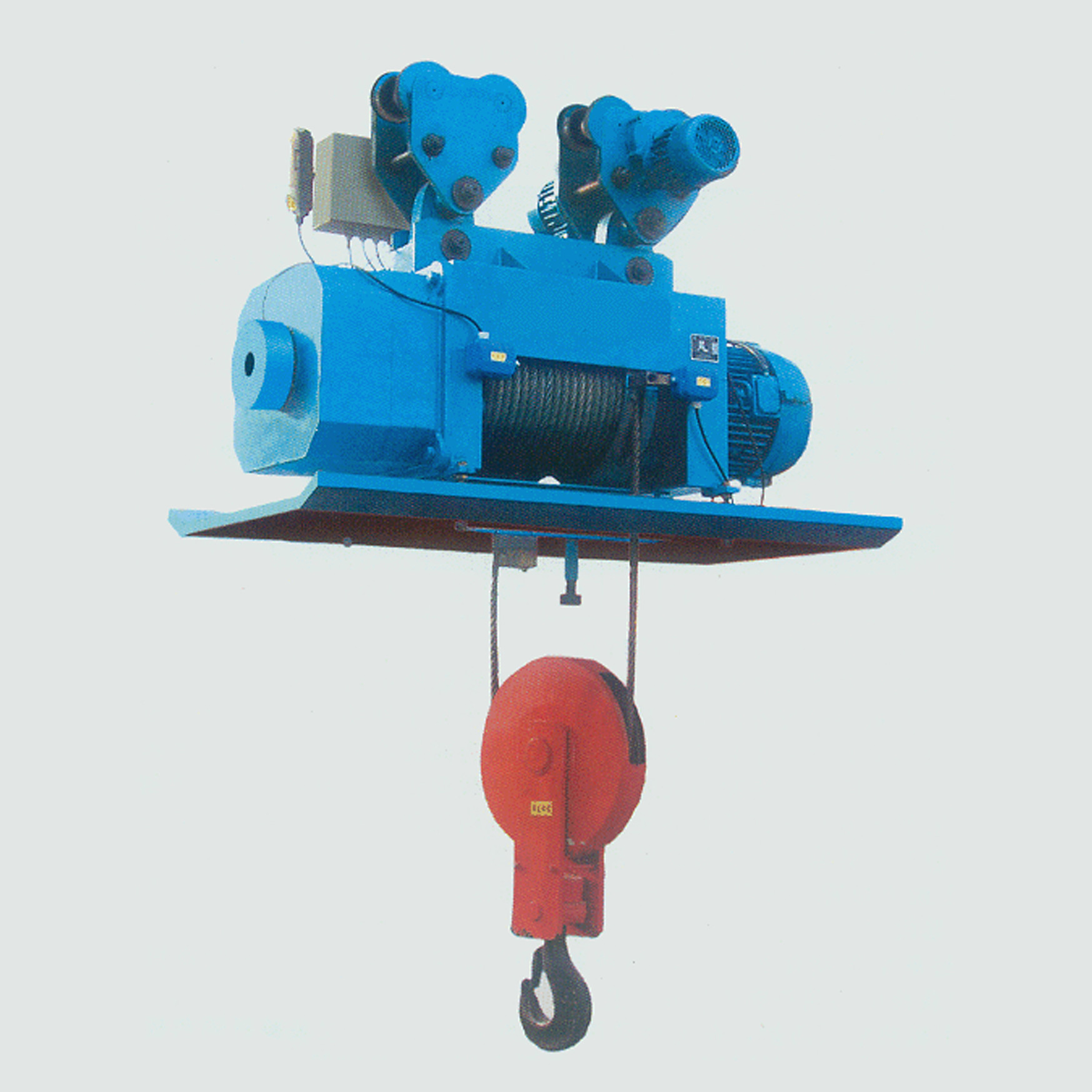

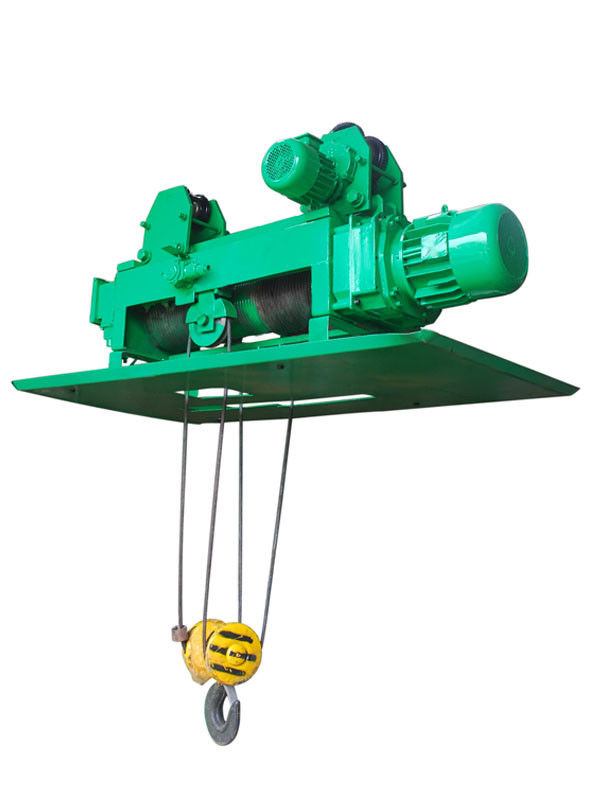

Metallurgy Electric Wire Rope Hoist 10 Ton Compact Structure Long Work Life

Product Description

Metallurgy Wire Rope 10 ton Electric Hoist With High Quality Customization

Model CD1/MD1 wire rope electric hoist is a small size lifting equipment, which can be mounted on single beam, bridge, antry and jib cranes.
CD1 Electric hoist has only one normal speed, which can satisfy normal applications. Model MD1 electric hoist provides two speeds: normal speed and low speed. At low speed, it can do precise loading and unloading, mounding of sandbox, maintenance of machine tools etc.

Advantages of Single Speed Electric Wire Rope Hoist

■ Compact structure, light weight

■ High safety and reliability

■ Large lifting capacity and wide application

■ High efficiency and long work life

■ Easy operation and stable lifting

■ Interchangeable components and easy maintenance

Features of Single Speed Electric Wire Rope Hoist

Lifting motor

■ Asynchronous conical rotor motor is installed on electric wire rope hoist and the inside brake is also ensure the safety of the hoist

■ Large toque, stable operation, compact structure, small size, ling weight

■ Effective braking, safe operation, easy maintenance

■ High safety with the B or F class insulation, IP44, IP54 protection

Travelling motor

Electric wire rope hoist travelling motor has the features of stable starting, effective braking, full coverage of class B or F insulation, IP44, IP54 protection, IC0141 self-cooling and so on.

Lifting reducer

■ High quality three-level dead axle helical gear rotating body ensures long serving life

■ Gear and axle is made of high intensity alloy steel which had been treated with heat

■ Box and cover are made from superior cast iron

■ Lifting reducer has great speed ration and high accuracy

■ Lifting reducer has compact structure, and is quiet during operation with high working efficiency.

■ It is easy to assemble and disassemble

Rope drum

■ Weld rope drum is light in terms of dead weight

■ Coil casing is made from superior cast iron with high intensity

■ Rope guide is used to avoid intertwining of wire rope and ensure the normal operation of electric wire rope hoist

■ No disturbance between rope sockets and has long working life

■ The rope drum is high quality and is easily interchangeable

Steel wire rope

Electric wire rope hoist rope adopts GB/ T 20118-2006 (6 * 37+1) hoisting wire rope, which has the characteristics of good tensile resistance, good flexibility, good impact resistance and long working life.

Hook

Electric wire rope hoist hook is made of high quality carbon steel, high safety and can withstand triple static load. Electric wire rope gourd with spring-type strong safety lock, not loose slings.

Fire stopper

Fire stopper with adjustable mechanical memory structure, high sensitivity, with limited block to prevent hook top impact. The fire-proof plug has the advantages of high safety and durability, convenient installation and debugging, sensitive reaction and small size.

Overload limiter

■ Present the data based on your electric wire rope hoist working conditions

■ Show accurate weight value clearly

■ Modular, low power design, jam proof

■ Ensure the safe operation of electric wire rope hoist

■ Long service life of appliance components

Electrical part

■ Control cabinet is with reasonable layout and easy to be repaired

■ Protection class IP55

■ Optional main power source is equipped on electric wire rope hoist

■ Safe trolley conductor with high conductivity and small pressure drop

■ Light dead weight, easy to install

■ Collector ensure continuing power supply

Control Mode

Electric wire rope hoist has two control methods: pendant control and remote control, with simple, safe, waterproof and anti-fall features.

Technical parameters

Package & Delivery
