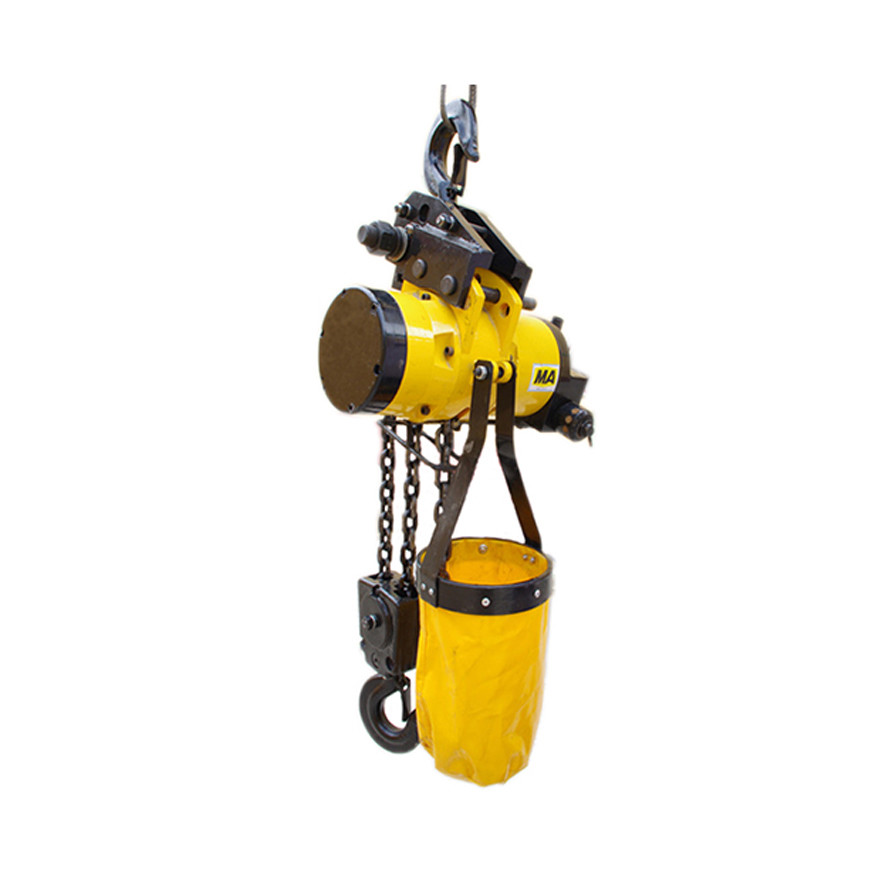

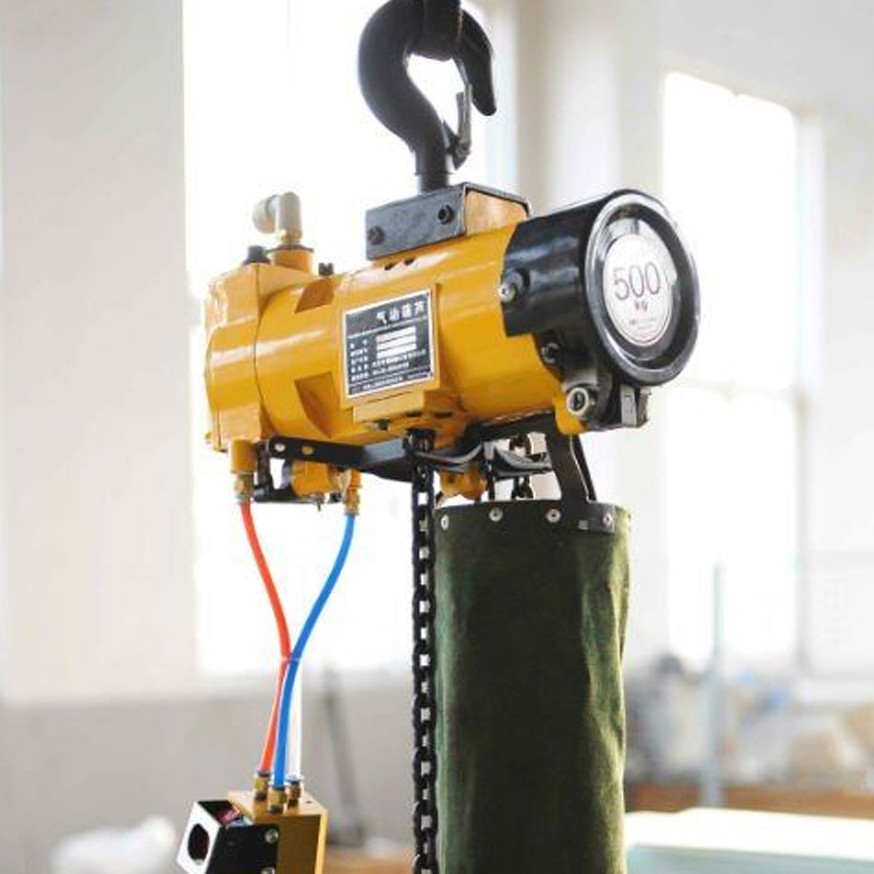

Air Power Pneumatic Electric Chain Block 5 Ton High Lifting Capacity Easy Maintenance

Minimum Order Quantity : 1 set Price : Negotiable
Packaging Details : High quality standard plywood box Delivery Time : 10 work days
Payment Terms : T/T, L/C, Western Union Supply Ability : 300 sets/per month
Place of Origin: China Brand Name: Silence
Certification: ISO CE Model Number: HHBB

Detail Information

Working Class: M5 Chain: FEC G80
Control Method: Pendant Control, Remote Control Electric: Schneider
Hoist Power: 1.5kw-3kw Frequency: 50Hz,60Hz
High Light:

pneumatic chain hoist

,

motorized chain hoist

Product Description

5T chain hoist air power pneumatic hoist electric chain hoist


Product description



The electric hoist is widely used in lifting heavy weight or installed in a single beam cranes, linear, curve strander beams. It can also be used to the hoist double beam, gourd gantry crane or cantilever crane.

It is a light equipment for lifting, which is welcomed by Industrial and mining enterprises, railways, docks, warehouses.



In general of air chain hoist

1. Compact, light weight, safe and reliable
2. Components and parts apply used universally,strong compatibility
3. High lifting capacity, easy maintenance
4. Easy operation, accurate lifting steady operation



Air chain hoist motor

1. To use higher starting torque tapered rotor braking asynchronous motor

2. No need plus brake again,

3. Motor load keeping rate is 25%,Safe and reliable

4. Class B or Class F insulation,Motor protection grade IP44 / IP54



Air chain hoist reducer

1. it adopts 3-GRADE fixed axle inclined gears structure,long life
2. The gears and gear shaft made by the alloy steel of heating treatment,high strength
3. Box, box cover made by high quality cast iron,Assembly rigor, good seal
4. The gear reducer become to be a single part,loading and unloading is extremely convenient
5. Reliable drive, high mechanical efficiency.



Air chain hoist protection function

It has the device up and down proceeding to protect the fire cutting limiting stopper.

To ensure the safe operation of the electric hoist, the electrical components have long life, use reliable

It also has device to prevent clashing the top.



Technical parameters



Electric trolley type

Air Power Pneumatic Electric Chain Block 5 Ton High Lifting Capacity Easy Maintenance 0

SIZE SPECIFICATION
MODEL H A B D E
HHBB0.5-01 635 460 230 288 165
HHBB01-01 650 520 260 300 176
HHBB01-02 660 460 230 288 165
HHBB1.5-01 770 615 295 430 265
HHBB02-01 770 615 295 430 265
HHBB02-02 815 520 260 300 236
HHBB2.5-01 830 615 295 430 265
HHBB03-01 830 615 295 430 265
HHBB03-02 930 615 295 430 320
HHBB03-03 940 520 260 350 205
HHBB05-02 1015 615 295 430 325
HHBB7.5-03 1200 615 295 505 320
HHBB10-04 1190 630 315 890 445



Fixed type

Air Power Pneumatic Electric Chain Block 5 Ton High Lifting Capacity Easy Maintenance 1

SIZE SPECIFICATION
MODEL H A B D E
HHBB0.5-01 530 460 230 288 165
HHBB01-01 650 520 260 300 176
HHBB01-02 680 460 230 288 165
HHBB1.5-01 800 615 295 430 265
HHBB02-01 800 615 295 430 265
HHBB02-02 835 520 260 300 236
HHBB2.5-01 845 615 295 430 265
HHBB03-01 845 615 295 430 265
HHBB03-02 950 615 295 430 320
HHBB03-03 950 520 260 350 205
HHBB05-02 1030 615 295 430 325
HHBB7.5-03 1380 615 295 505 320
HHBB10-04 1400 630 315 890 445



Air Power Pneumatic Electric Chain Block 5 Ton High Lifting Capacity Easy Maintenance 2

Air Power Pneumatic Electric Chain Block 5 Ton High Lifting Capacity Easy Maintenance 3

Air Power Pneumatic Electric Chain Block 5 Ton High Lifting Capacity Easy Maintenance 4
