Stage Use Electric Chain Block Hoist 3 Phase 380V 50Hz Compact Solid Body Case
Stage Use Electric Chain Block Hoist 3 Phase 380V 50Hz Compact Solid Body Case Stage Use Electric Chain Block Hoist 3 Phase 380V 50Hz Compact Solid Body Case Stage Use Electric Chain Block Hoist 3 Phase 380V 50Hz Compact Solid Body Case Stage Use Electric Chain Block Hoist 3 Phase 380V 50Hz Compact Solid Body Case
Contact Now

Stage Use Electric Chain Block Hoist 3 Phase 380V 50Hz Compact Solid Body Case

Minimum Order Quantity : 1 set Price : Negotiable
Packaging Details : High quality standard plywood box Delivery Time : 10 work days
Payment Terms : T/T, L/C, Western Union Supply Ability : 300 sets/per month
Place of Origin: China Brand Name: Silence
Certification: ISO CE Model Number: HHBB

Detail Information
Power Source: 3 Phase 380V 50Hz Or As Your Request Color: Yellow Or Blue
After Sales Service: Overseas Aviliable Warranty: One Year
Hoist Brake Type: Magnetic Brake Sling Type: Chain
High Light:

electric chain block hoist

,

pneumatic chain hoist

Product Description

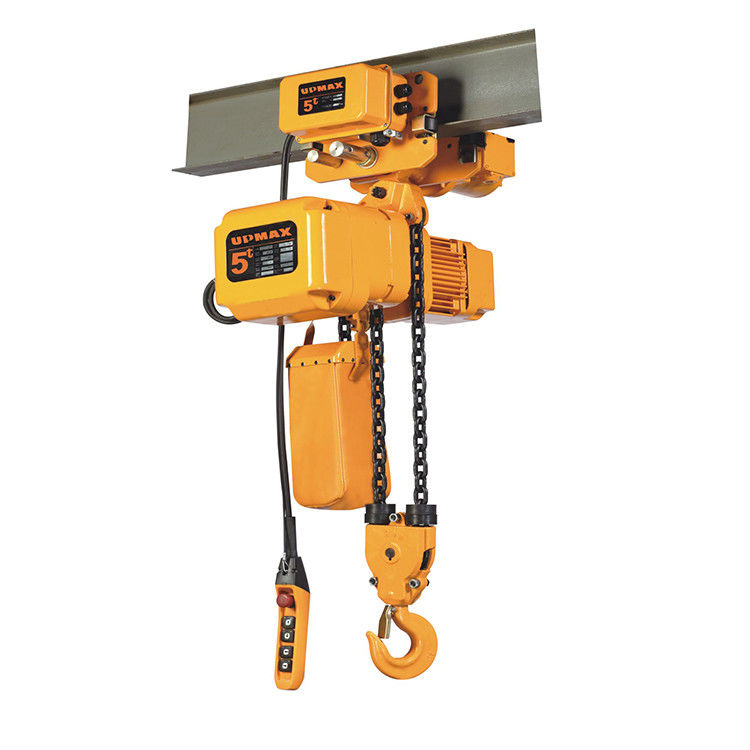

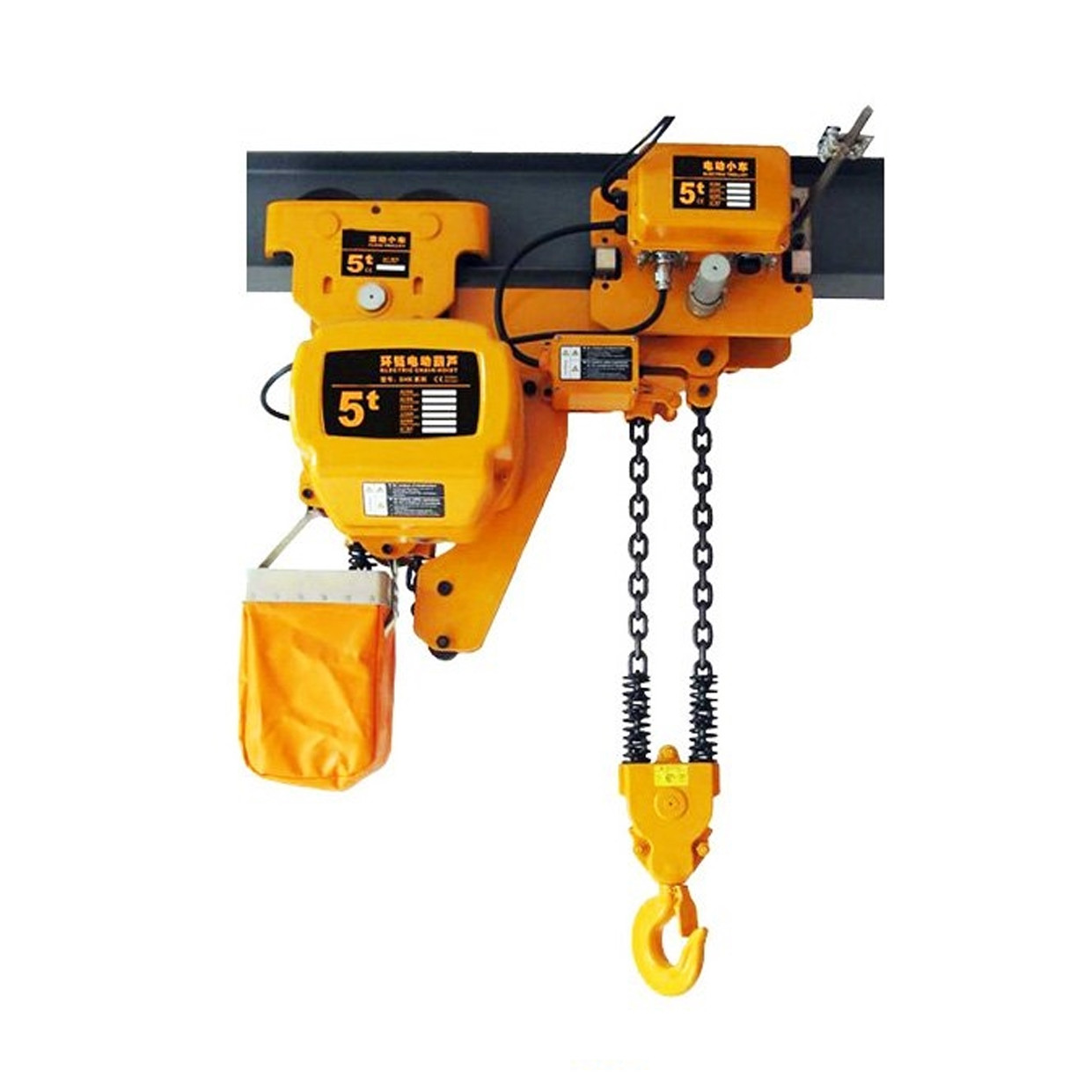

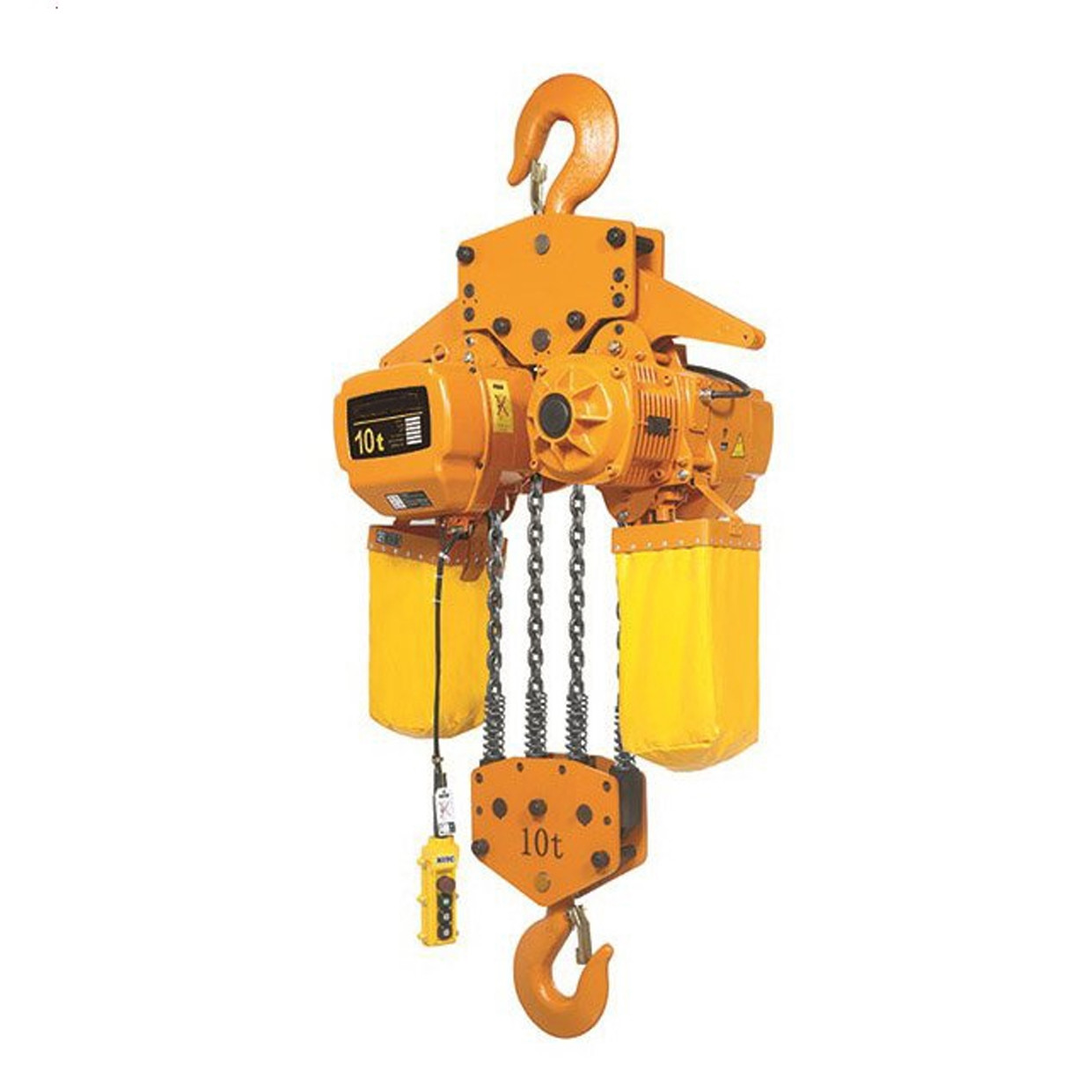

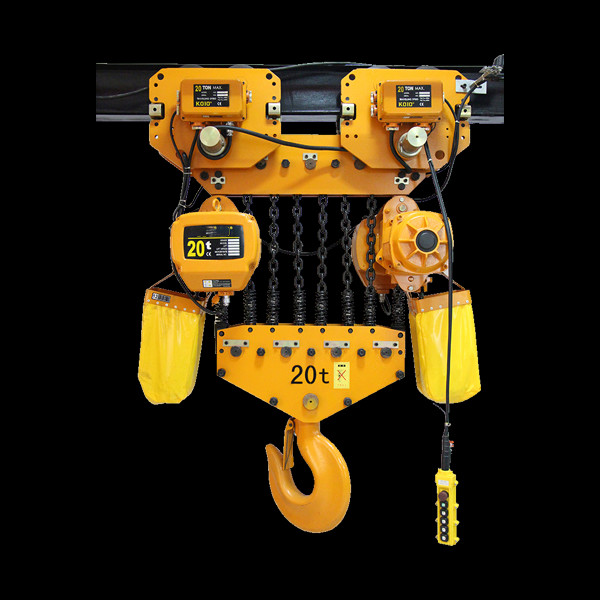

Remote control stage used 1 ton 1.5 ton 2 ton 3 ton 5 ton electric chain hoist with electric trolley


Product description

Electric chain hoist is a light duty crane lifting equipment. The lifting capacity of electric chain hoist can be from 0.5 ton to 50 ton. There are total three types of electric chain hoists for you. Manual trolley electric chain hoist, fixed type electric chain hoist, electric trolley electric chain hoist. Please choose as your working environment and specific requirements.



Technical parameters

lift capacity(T)
1
2
3
5
10
20
Testing loading(T)
1.25Gn
1.25Gn
1.25Gn
1.25Gn
1.25Gn
1.25Gn
Motor power(kw)
1.5
3.0



3.0
3.0
3.0*2
3.0*2
Lift speed(m/min)



6.6
6.6
5.4
2.7
2.7
1.4
Lift chain quantity
1
1
1
2
4
8
Chain diameter(mm)
7.1
10.0
11.2
11.2
11.2
11.2
Net weight(kg)
61
115
122
151
300
480
lift 1 more meter increase weight(kg)
1.1
2.3
2.8
5.6
8.4
22



Product details

Shell: light aluminum alloy case, light and strong, high heat dissipation rate, fully sealed design suitable for use in poor operating conditions.



Reverse phase protection device: it is a special electrical device. When the power connection is wrong, the control circuit cannot move.



Switch: there are switch devices on and off heavy lifting to make the motor stop automatically to prevent the chain from exceeding and ensure safety.



24V/36V device: in case of leakage in the switch during operation, it can prevent other accidents.



Side magnetic brake device: this device can realize the instantaneous brake when the power is cut off.



Chain bag: light, beautiful and durable.



Chain: imported FEC80 super heat treatment alloy steel chain.

Stage Use Electric Chain Block Hoist 3 Phase 380V 50Hz Compact Solid Body Case 0




Production line



Stage Use Electric Chain Block Hoist 3 Phase 380V 50Hz Compact Solid Body Case 1



Package and delivery



Stage Use Electric Chain Block Hoist 3 Phase 380V 50Hz Compact Solid Body Case 2
