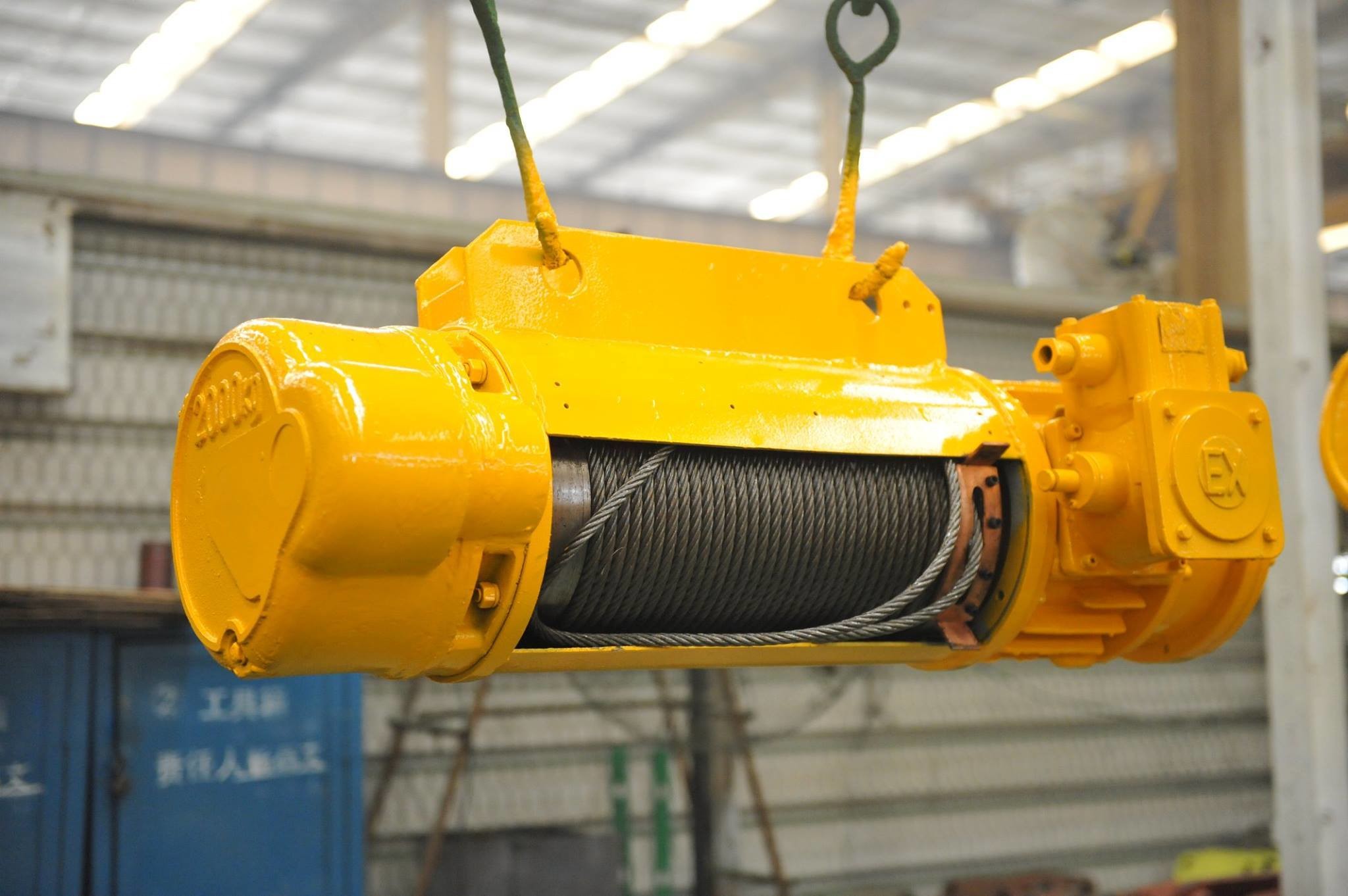

2 Ton Electric Wire Rope Hoist With Motorized Trolley Large Toque Stable Operation

Product Description

Customized 2 ton Electric Hoist Wire Rope with Motorized Trolley



General introduction

1. Application Range:

Installed in a single beam crane, linear, curve strander beams;

also used together with double beam, gourd gantry crane, jib crane;

welcomed by industrial and mining enterprises, railways, docks, warehouses.

2. Main Feature:

Single speed; strong lifting capacity: 0.25t~30t, even more; max 100m lifting height; pendent & remote control.



Product Parameter



type	0.25ton	0.5ton	1ton	2ton	3ton	5ton	10ton
capacity (t)	0.25	0.5	1	2	3	5	10
lifting height(m)	3-9	6-12	6-30	6-30	6-30	6-30	6-30
lifting speed(m/min)	8(8/0.8)	8(8/0.8)	8(8/0.8)	8(8/0.8)	8(8/0.8)	8(8/0.8)	7(7/0.7)
traveling speed(m/min)	20	20	20	20	20	20	20
wire rope type	5.1NAT-6*37+FC 1670	5.1NAT-6*37+FC 1670	7.4NAT-6*37+FC 1670	11NAT-6*37+FC 1670	13NAT-6*37+FC 1670	15NAT-6*37+FC 1670	15NAT-6*37+FC 1670
I-beam track model	16-22b	16-28b	16-28b	20a-32c	20a-32c	25a-63c	25a-63c
circle orbit minimum radius(m)	0.8	1.5	1.5-4	2-4	2-4	2.5-5	3.5-9
voltage	380	380	380	380	380	380	380
frequency	50	50	50	50	50	50	50
Phase	3	3	3	3	3	3	3













































​This parameter is for reference only, specific requirements can contact us for customization.



Product feature

Lifting motor

■ Asynchronous conical rotor motor is installed on electric wire rope hoist and the inside brake is also ensure the safety of the hoist

■ Large toque, stable operation, compact structure, small size, ling weight

■ Effective braking, safe operation, easy maintenance

■ High safety with the B or F class insulation, IP44, IP54 protection

Travelling motor

Electric wire rope hoist travelling motor has the features of stable starting, effective braking, full coverage of class B or F insulation, IP44, IP54 protection, IC0141 self-cooling and so on.

Lifting reducer

■ High quality three-level dead axle helical gear rotating body ensures long serving life

■ Gear and axle is made of high intensity alloy steel which had been treated with heat

■ Box and cover are made from superior cast iron

■ Lifting reducer has great speed ration and high accuracy

■ Lifting reducer has compact structure, and is quiet during operation with high working efficiency.

■ It is easy to assemble and disassemble

Rope drum

■ Weld rope drum is light in terms of dead weight

■ Coil casing is made from superior cast iron with high intensity

■ Rope guide is used to avoid intertwining of wire rope and ensure the normal operation of electric wire rope hoist

■ No disturbance between rope sockets and has long working life

■ The rope drum is high quality and is easily interchangeable

Steel wire rope

Electric wire rope hoist rope adopts GB/ T 20118-2006 (6 * 37+1) hoisting wire rope, which has the characteristics of good tensile resistance, good flexibility, good impact resistance and long working life.

Hook

Electric wire rope hoist hook is made of high quality carbon steel, high safety and can withstand triple static load. Electric wire rope gourd with spring-type strong safety lock, not loose slings.

Fire stopper

Fire stopper with adjustable mechanical memory structure, high sensitivity, with limited block to prevent hook top impact. The fire-proof plug has the advantages of high safety and durability, convenient installation and debugging, sensitive reaction and small size.

Overload limiter

■ Present the data based on your electric wire rope hoist working conditions

■ Show accurate weight value clearly

■ Modular, low power design, jam proof

■ Ensure the safe operation of electric wire rope hoist

■ Long service life of appliance components

Electrical part

■ Control cabinet is with reasonable layout and easy to be repaired

■ Protection class IP55

■ Optional main power source is equipped on electric wire rope hoist

■ Safe trolley conductor with high conductivity and small pressure drop

■ Light dead weight, easy to install

■ Collector ensure continuing power supply

Control Mode

Electric wire rope hoist has two control methods: pendant control and remote control, with simple, safe, waterproof and anti-fall features.

​Product usage



Wire rope hoist is widely used in the following fields:



1. Used for lifting heavy objects in light textile industrial warehouses, hospitals, shops and workshops of food factories. And the river wharves for heavy loads.



2. It is used for hoisting prefabricated components and cement pipes in the construction industry and pipeline operation.



3. Used for material warehouse and cargo yard, hoisting and transporting materials, stacking and palletizing. For installation of equipment and lifting of heavy objects in the workshop of machinery factory and repair shop.
