Hydraulic Lifting Table Material Transfer Cart , Motorised On Rail Transfer Car

Minimum Order Quantity : 1 set Price : Negotiable
Packaging Details : packed by rain proof plastic cloth Delivery Time : 15 days
Payment Terms : L/C, T/T Supply Ability : 5 sets
Place of Origin: China Brand Name: Silence
Certification: ISO CE Model Number: KPX

Detail Information

Detailed: High-Duty Rail Transfer Cart Used In Heavy Industry Style: Square
Material: Stainless Steel,Q235,Welded Construction Of Structural Steel Structure: Platform
Size: Customized Warranty: 24 Months For The Transfer Cart
High Light:

on rail transfer cart

,

industrial transfer car

Product Description

Hydraulic Lifting Table Motorised On Rails Material Handling Ferry Transfer Cart


Functional description

The transfer cart can be applied in many occasions, such as easy explosion, high temperature, ferry.This kinds of transfer cart is DC motor, stable start, starting torque, small impact to gear reducer, low voltage, long lifetime.

Transfer carts mainly includes car frame, brushless DC motor, reducer, wheel, storage battery, charger, etc. transfer carts electrical trolley can be used in the ferry condition and flammable, explosive environment and the hydraulic lifting device can be installed on the flat carts.

The steel rail transfer cart was developed to dramatically reduce the material handling requirements of cranes and fork trucks while providing quick, safe and smooth movement of materials and/or products through manufacturing facilities.

Our steel rail transfer cart is available in a number of configurations specifically designed to suit the needs of our customers.

Product features

1. The running distance of the transfer cart is less than 200m

2. The transfer cart is required to run on the rails

3. The whole working route needn't turn

4. The working frequency is higher

5. The transfer cart is required easy operation with low cost


Product superiority

1. This series of flat cars has the advantages of safety, mobility and flexibility, the operation is not limited by distance, the speed is adjustable, the dc motor of flat cars has the advantages of stable start, large start torque, small impact on the reducer, low voltage, long service life and so on.

The track laying requirements are not high, suitable for use frequency is not high, long-distance transport occasions.

2. The transfer cart adopts dc motor, suitable for frequent use, with higher safety and mobility flexibility.

It can be equipped with hard tooth surface reducer to make the maintenance of flat car easier.

3. This series of electric flat car mechanism is relatively simple, convenient for maintenance, easy to disassemble and assemble, strong bearing capacity, long service life, low requirement for track laying, low cost, suitable for harsh environment, high-temperature environment, and other occasions.

4. Transfer cart is suitable for all kinds of environment, can work in indoor, outdoor, flammable and explosive environment, can also be added to the flat car hydraulic device, buffer device. Simple operation, in the case of transport distance is far, can be added on the flat car with the operating platform, to meet the customer long-distance transport, to achieve a humanized design.

5. PLC control system can be added to the flat car, automatic rail car, greatly increase the work efficiency.

Product details

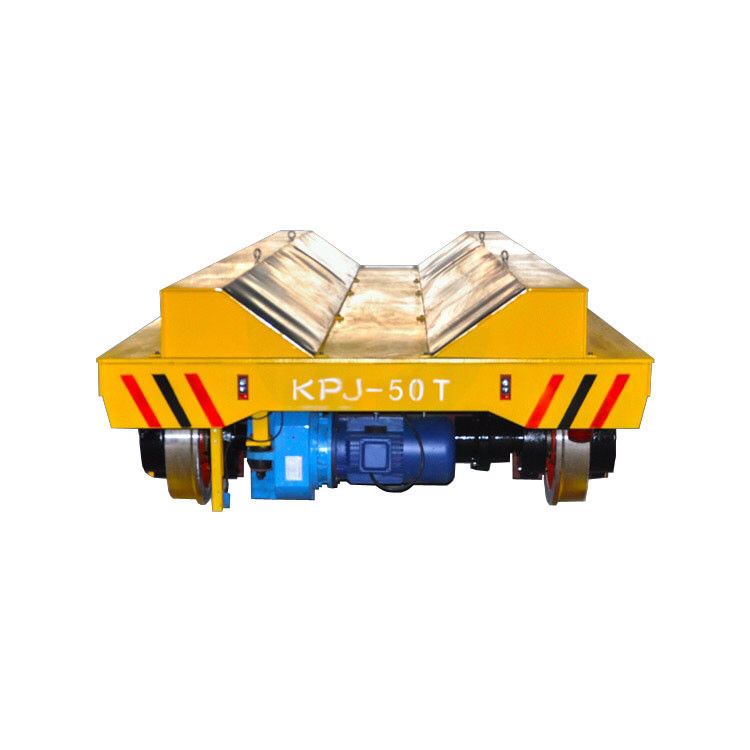

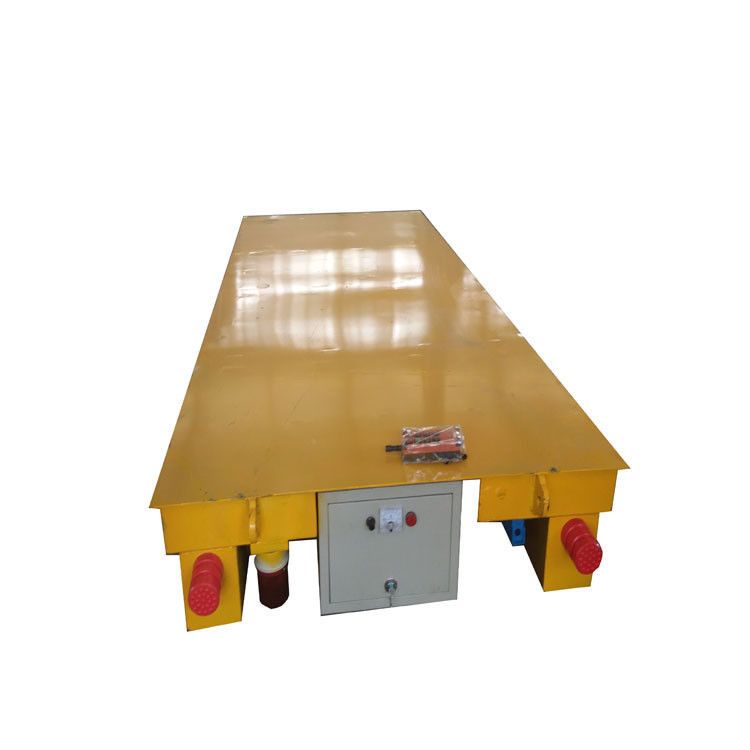

Hydraulic Lifting Table Material Transfer Cart , Motorised On Rail Transfer Car 0

Technical parameters

Hydraulic Lifting Table Material Transfer Cart , Motorised On Rail Transfer Car 1

ModleKPX-10TKPX-30TKPX-50TKPX-80TKPX-100TKPX-150T
Table Size (m)3.6*2.0*0.54.5*2.2*0.65.5*2.5*0.656.0*2.6*0.86.5*2.8*0.910*3.0*1.2
PowerMaintenance Free Battery
Rail inner Gauge1435mm1435mm1435mm1800mm2000mm2000mm
Wheel Dia.350mm400mm500mm600mm600mm600mm
Running Speed0-20m/min0-20m/min0-20m/min0-20m/min0-20m/min0-20m/min
Motor Power1.6kw3.5kw5kw8kw10kw15kw
Battery Capacity180Ah250Ah330Ah400Ah440Ah600Ah
Battery Volatge48v48v48v72v72v72v
Max Wheel Load42.6Kn110.4Kn174Kn278.4Kn343.8Kn265.2Kn
Reference weight4.2t6.8t8t12.8t14.6t26.8t
Recommend RailP24P38P43P50QU100QU100


Application

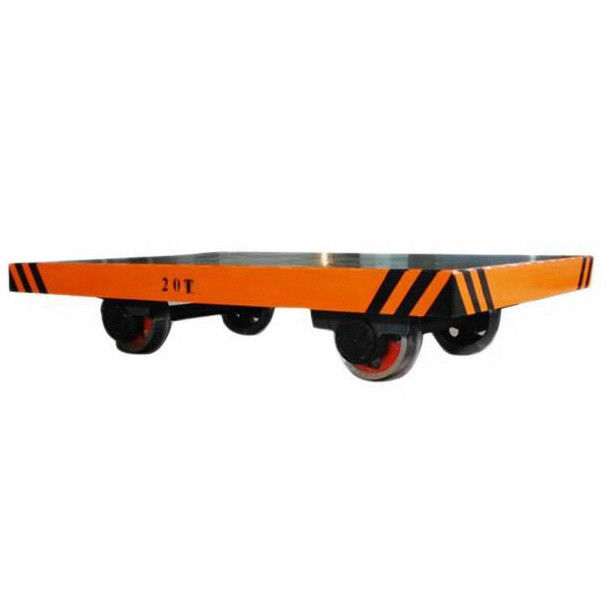

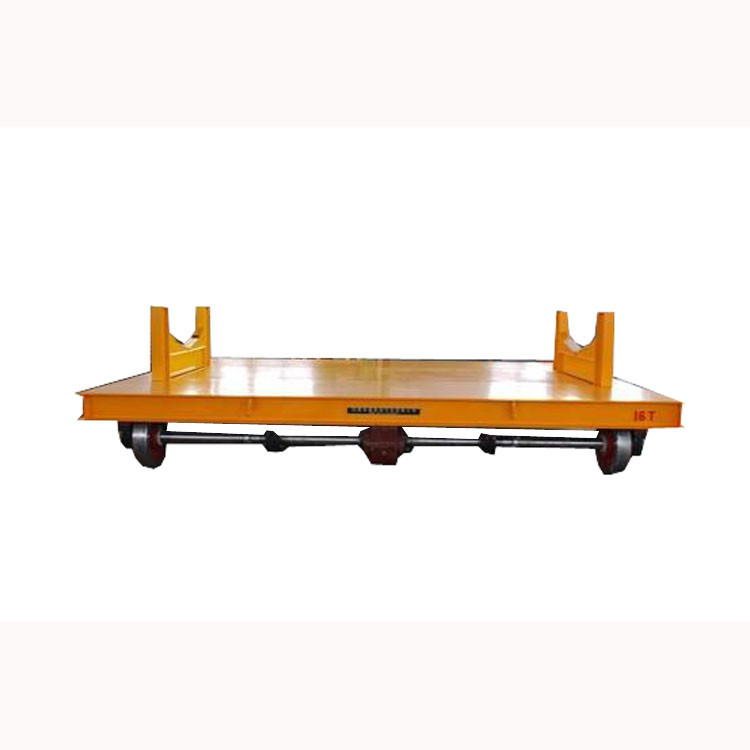

Hydraulic Lifting Table Material Transfer Cart , Motorised On Rail Transfer Car 2
