Stainless Steel Hydraulic Material Transfer Cart Battery Operated

Minimum Order Quantity :	1 set	Price :	Negotiable
Packaging Details :	packed by rain proof plastic cloth	Delivery Time :	15 days
Payment Terms :	L/C, T/T	Supply Ability :	5 sets

Place of Origin:	China	Brand Name:	Silence
Certification:	ISO CE	Model Number:	KPX

Detail Information
Detailed:	Material Transfer Cart	Keyword:	Transfer Cart;electric Flat Car
Structure:	Platform	Material:	Stainless Steel
Power Source:	Battery Operated	Running Speed:	0-30 M/min (adjust)
High Light:	Hydraulic Material Transfer Cart , Stainless Steel Material Transfer Cart , Battery Operated Material Transfer Cart

Product Description

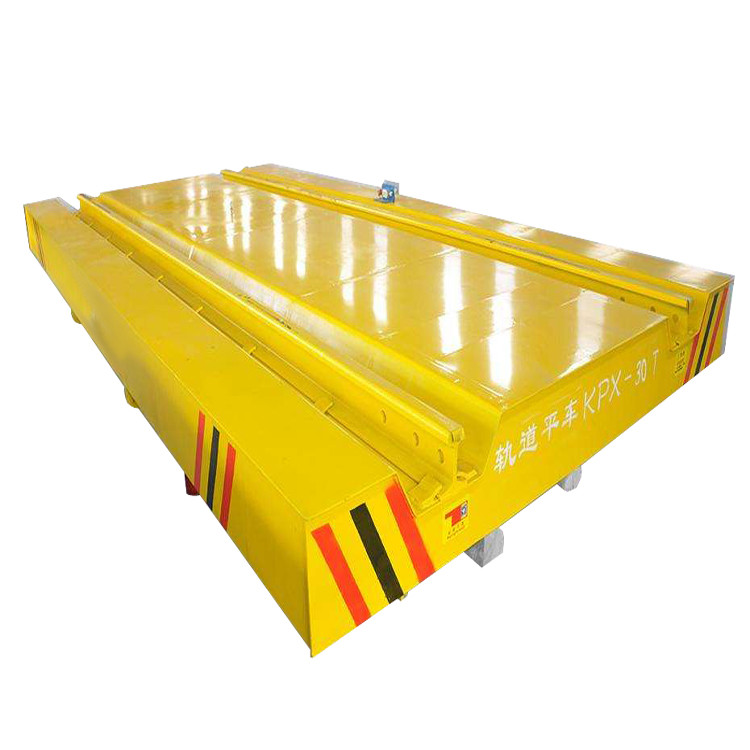

Stainless Steel Hydraulic Material Transfer Cart Battery Operated

Material Transfer Cart is an electric flat cart with rails, which is the traditional and mature type electric flat cart. More importantly, it has been new favorite in the industry transport field all over the world with hot market. Especially for the workshop transportation.

Product Features

1. The running distance of the transfer cart is less than 200m

2. The transfer cart is required to run on the rails

3. The whole working route needn't turn

Product superiority

High temperature and explosion proof;

The Dragged cable powered flat bed trailer for material transfer With simple structure and low price;

The hydraulic can be installed on the flat carts;

The Dragged cable powered flat bed trailer's using time is not limited;

The flat bed trailer for material transfer has no strict requirement on the rail’s construction;

Product details

Stainless Steel Hydraulic Material Transfer Cart Battery Operated 0

Technical parameters

Table Size (m)	Length (L)	2000	3500	3600	4000	4000	4500	4500	5000	5500	5600
	Width (W)	1500	2000	2000	2000	2200	2200	2200	2500	2500	2500
	Height (H)	450	450	500	500	600	600	600	650	650	750
Wheel Base(mm)		1200	2500	2600	2800	3200	3200	3200	4200	4200	4300
Rail Inner Gauge (mm)		1200	1435	1435	1435	1435	1435	1435	1435	1435	1435
Wheel Diameter(mm)		Φ270	Φ300	Φ300	Φ350	Φ400	Φ400	Φ400	Φ500	Φ500	Φ600
Wheel Quantity		4	4	4	4	4	4	4	4	4	4
Ground Clearance(mm)		50	50	50	50	50	50	50	50	50	75
Motor Power(KW)		1	1.2	1.6	2	2.2	3	3.5	4	5	6.3
Running Distance(m)		80	80	80	80	80	80	80	60	50	50
Max Wheel Load(KN)		14.4	25.8	42.6	64.5	77.5	94.5	110.5	142.5	174	221.4
Reference Weight(t)		2.8	3.6	4.2	5.5	5.9	6.5	6.8	7.6	8	10.8
Recommended Rail Model		P15	P18	P18	P24	P24	P38	P38	P43	P43	P50

Application
