Heavy Industry Cargo Electric Rail Transfer Trolley Strong Bearing Capacity

Minimum Order Quantity : 1 set Price : Negotiable
Packaging Details : packed by rain proof plastic cloth Delivery Time : 15 days
Payment Terms : L/C, T/T Supply Ability : 5 sets
Place of Origin: China Brand Name: Silence
Certification: ISO Model Number: BXC

Detail Information

Running Speed: 0-30m/min (Adjustable) Power Source: Conductor Rail
Capacity: Customized Power Supply: Battery,cable Drum Power,cable Reel
Detailed: High-Duty Rail Transfer Cart Used In Heavy Industry Style: Square
High Light:

on rail transfer cart

,

industrial transfer car

Product Description

Heavy Industry And Cargo Tow Tractor Trail Car Electric Rail Transfer Trolley


Functional description

1. Using the occlusion or reflection of the detected object to the beam, the circuit is connected by the synchronous circuit to make the flat car stop operation temporarily and protect the safety of workers.

2. When the induction surface of the flat car proximity switch reaches the preset distance, the flat car can be decelerated and stopped without any mechanical contact and any pressure applied.

3. It can inform the running condition of flat car according to sound and light alarm

4. Effectively increase the impact buffer, reduce impact damage, flat car and cargo protection

5. In case of emergency, press the emergency stop button to stop the flat car and avoid safety accidents

6. Used to protect the electric flat car from leaving the track when it is close to the end of the track.


Product features

1. The running distance of the transfer cart is less than 200m

2. The transfer cart is required to run on the rails

3. The whole working route needn't turn

4. The working frequency is higher

5. The transfer cart is required easy operation with low cost


Product superiority

1. This series of flat cars has the advantages of safety, mobility and flexibility, the operation is not limited by distance, the speed is adjustable, the dc motor of flat cars has the advantages of stable start, large start torque, small impact on the reducer, low voltage, long service life and so on.

The track laying requirements are not high, suitable for use frequency is not high, long-distance transport occasions.

2. The transfer cart adopts dc motor, suitable for frequent use, with higher safety and mobility flexibility.

It can be equipped with hard tooth surface reducer to make the maintenance of flat car easier.

3. This series of electric flat car mechanism is relatively simple, convenient for maintenance, easy to disassemble and assemble, strong bearing capacity, long service life, low requirement for track laying, low cost, suitable for harsh environment, high-temperature environment, and other occasions.

4. Transfer cart is suitable for all kinds of environment, can work in indoor, outdoor, flammable and explosive environment, can also be added to the flat car hydraulic device, buffer device. Simple operation, in the case of transport distance is far, can be added on the flat car with the operating platform, to meet the customer long-distance transport, to achieve a humanized design.

5. PLC control system can be added to the flat car, automatic rail car, greatly increase the work efficiency.

Product details

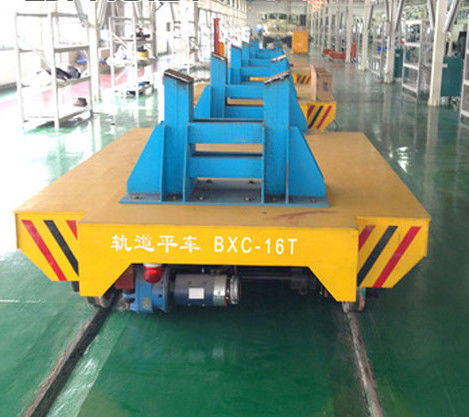

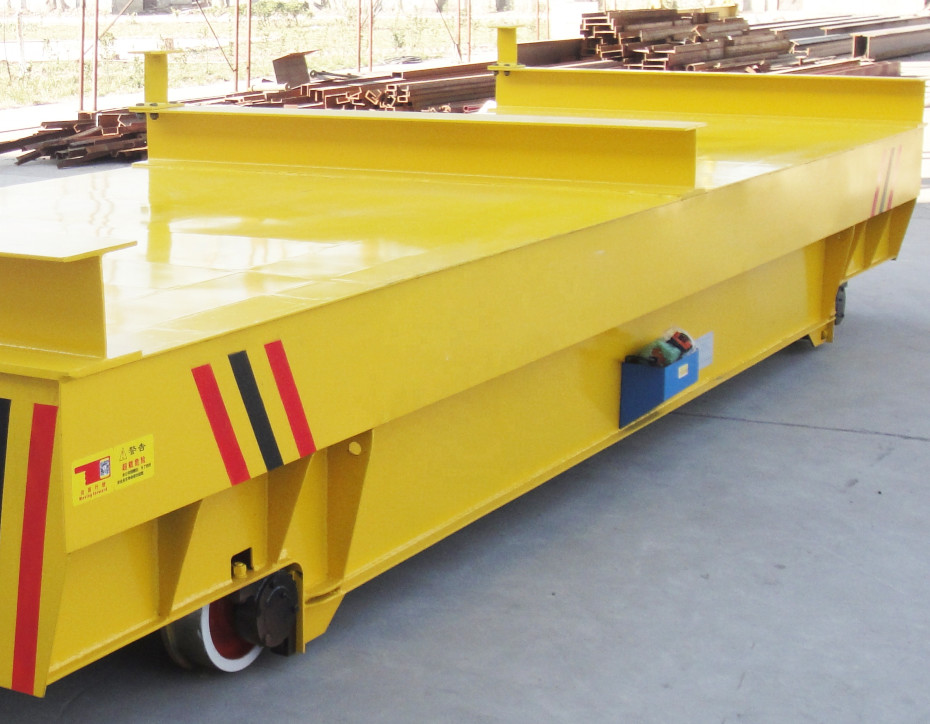

Heavy Industry Cargo Electric Rail Transfer Trolley Strong Bearing Capacity 0Heavy Industry Cargo Electric Rail Transfer Trolley Strong Bearing Capacity 1

Technical parameters

Heavy Industry Cargo Electric Rail Transfer Trolley Strong Bearing Capacity 2

ModleKPX-10TKPX-30TKPX-50TKPX-80TKPX-100TKPX-150T
Table Size (m)3.6*2.0*0.54.5*2.2*0.65.5*2.5*0.656.0*2.6*0.86.5*2.8*0.910*3.0*1.2
PowerMaintenance Free Battery
Rail inner Gauge1435mm1435mm1435mm1800mm2000mm2000mm
Wheel Dia.350mm400mm500mm600mm600mm600mm
Running Speed0-20m/min0-20m/min0-20m/min0-20m/min0-20m/min0-20m/min
Motor Power1.6kw3.5kw5kw8kw10kw15kw
Battery Capacity180Ah250Ah330Ah400Ah440Ah600Ah
Battery Volatge48v48v48v72v72v72v
Max Wheel Load42.6Kn110.4Kn174Kn278.4Kn343.8Kn265.2Kn
Reference weight4.2t6.8t8t12.8t14.6t26.8t
Recommend RailP24P38P43P50QU100QU100


Application

Heavy Industry Cargo Electric Rail Transfer Trolley Strong Bearing Capacity 3
