Building Material Transfer Cart , Four Wheels Electric On Rail Transfer Cart

Minimum Order Quantity : 1 set Price : Negotiable
Packaging Details : packed by rain proof plastic cloth Delivery Time : 15 days
Payment Terms : L/C, T/T Supply Ability : 5 sets
Place of Origin: China Brand Name: Silence
Certification: ISO CE Model Number: KPJ

Detail Information

Control Model: Push Button Control Structure: Roll Container
Power Supply: Battery Powered Application: Warehouse ,factory ,and Working Line,assembly Line
Oem: Accepted Size: Customized Size
High Light:

electric transfer cart

,

on rail transfer cart

Product Description

Building Material Shops Use Four Wheels Electric Transfer Bridge Cart On Rails


Functional description

1. Load-bearing transportation is the most basic and important function of electric flat cars. This series of flat cars can run on s-shaped, c-shaped and other arc-shaped tracks.

2. The hydraulic lifting system can be installed on the electric flat car to achieve lifting and other functions.

3. The flat car can realize the power and energy of the side dump by the hydraulic device.

4. Safety devices can be installed on the electric flat car, such as proximity switch, stop in case of contact, alarm system, buffer, etc. to achieve the corresponding safety functions.

5. According to the reasonable requirements of customers, the company can develop the corresponding non-standard electric flat vehicle to achieve the required functions



Product features

1.The running distance is not limited for the battery powered transfer cart.


2.Low using frequency(The spare battery can be provided if higher using frequency).


3.Despite of turning or going straight, the transfer cart can realize.


4.Despite of running on indoor or outdoor, high temperature or explosive environment, ferry or cross rail, the transfer cart can realize .



Building Material Shops use four wheels electric transfer bridge cart on rails


5.Dimensions,capacity, loading platform superstructure, speed and many others special function can be customized as per client request.



Product superiority

1. This series of flat cars has the advantages of safety, mobility and flexibility, the operation is not limited by distance, the speed is adjustable, the dc motor of flat cars has the advantages of stable start, large start torque, small impact on the reducer, low voltage, long service life and so on.

The track laying requirements are not high, suitable for use frequency is not high, long-distance transport occasions.

2. The transfer cart adopts dc motor, suitable for frequent use, with higher safety and mobility flexibility.

It can be equipped with hard tooth surface reducer to make the maintenance of flat car easier.

3. This series of electric flat car mechanism is relatively simple, convenient for maintenance, easy to disassemble and assemble, strong bearing capacity, long service life, low requirement for track laying, low cost, suitable for harsh environment, high-temperature environment, and other occasions.

4. Transfer cart is suitable for all kinds of environment, can work in indoor, outdoor, flammable and explosive environment, can also be added to the flat car hydraulic device, buffer device. Simple operation, in the case of transport distance is far, can be added on the flat car with the operating platform, to meet the customer long-distance transport, to achieve a humanized design.

5. PLC control system can be added to the flat car, automatic rail car, greatly increase the work efficiency.

Application

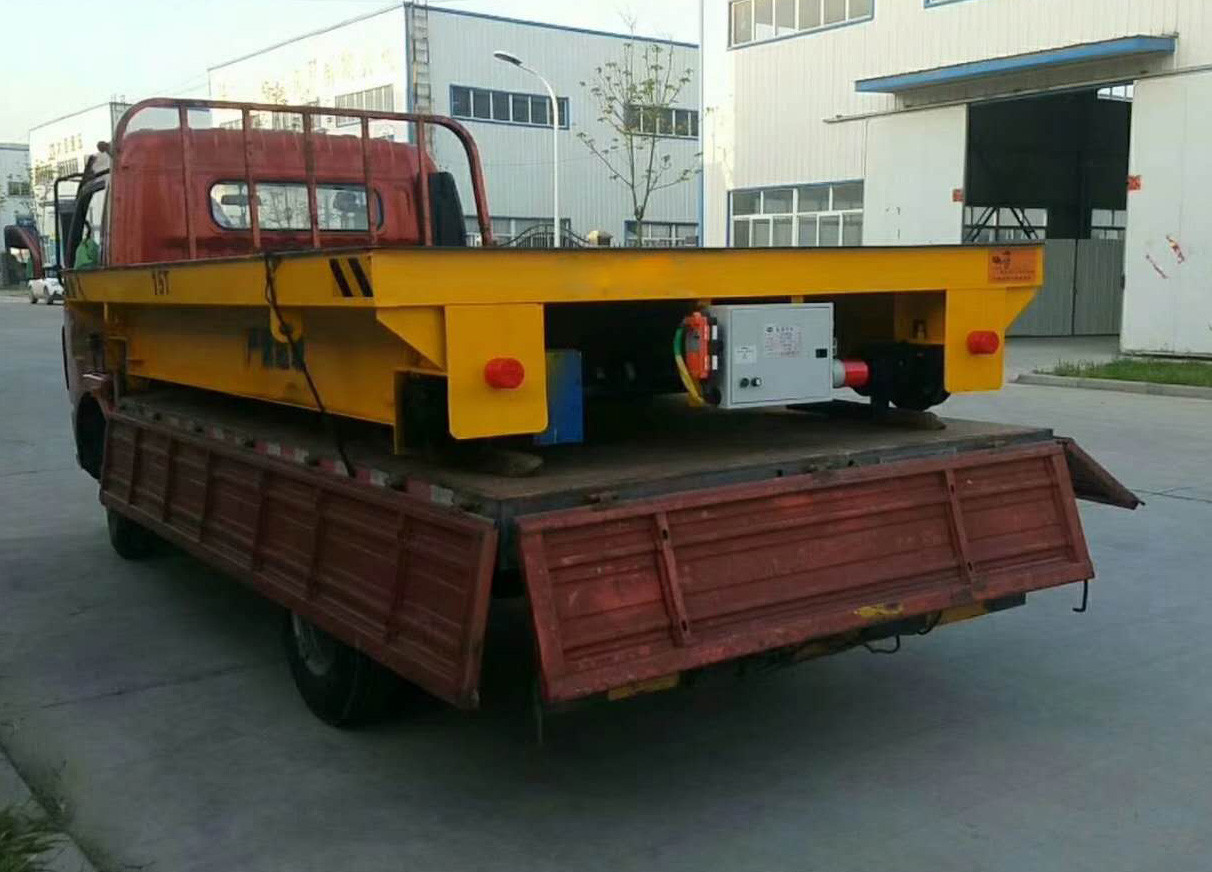

Building Material Transfer Cart , Four Wheels Electric On Rail Transfer Cart 0

Technical parameters

Building Material Transfer Cart , Four Wheels Electric On Rail Transfer Cart 1

Model KPJ-2T KPJ-20T KPJ-50T KPJ-63T KPJ-100T KPJ-150T
Capacity(T) 2 20 50 63 100 150
Wheel base(mm) 1200 2800 4200 4300 4900 7000
wheel back distance(mm) 1200 1435 1435 1435 2000 2000
Wheel diameter(mm) 270 350 500 600 600 600
Number of wheel(pcs) 4 4 4 4 4 8
Ground clearance(mm) 50 50 50 75 75 75
Speed(m/min) 0-25 0-20 0-20 0-20 0-20 0-18
Power(Kw) 1 2.2 5 8 10 15
Accumulator capacity(A/H) 180 180 330 400 440 600
Battery voltage(V) 24 48 48 72 72 72
