5T Heavy Material Transfer Cart CE Approved Customized Diameter 2 Universal Wheels

Minimum Order Quantity : 1 set Price : Negotiable
Packaging Details : packed by rain proof plastic cloth Delivery Time : 15 days
Payment Terms : L/C, T/T Supply Ability : 5 sets
Place of Origin: China Brand Name: Silence
Certification: ISO CE Model Number: KPX

Detail Information

Advantage: Easy Transportation Running Speed: 0-20m/min
Power Source: Cable Reel, Rail, Battery Wheel Type: 2 Universal Wheels
Application: Moving Objects Diameter: Customized For Crane Wheel
High Light:

on rail transfer cart

,

industrial transfer car

Product Description

CE Approved 5T Heavy Materials Railway Transfer Cart For Heavy Duty Warehouse


Configuration instruction
Rail Transfer Cart is powered by the rail, the 380V AC power supply is reduced by the transformer to a 36V safe AC voltage. According to work requirements, the load is less than 50 T and connected to the two rails, the 36-volt AC is introduced into the vehicle electrical box through the wheels. The control system converts to DC, and controls the DC motor start, stop, advance, retreat, and adjustment speed of the vehicle.
If the load is more than 50 T, a power supply rail needs to be set up in the middle of the track, and the 36AC is divided into three tracks. The 36AC is introduced into the vehicle electrical box through the power take-off column, Upgraded to 380V by the on-board transformer to provide the AC motor. Install inverter to achieve AC motor speed control requirements.
Rail Transfer Cart can be used in vertical, s-track, curved rails and high temperature applications. And it can be wired or wirelessly operated, also can be equipped with a PLC system for full automation.

Functional description

1. Load-bearing transportation is the most basic and important function of electric flat cars. This series of flat cars can run on s-shaped, c-shaped and other arc-shaped tracks.

2. The hydraulic lifting system can be installed on the electric flat car to achieve lifting and other functions.

3. The flat car can realize the power and energy of the side dump by the hydraulic device.

4. Safety devices can be installed on the electric flat car, such as proximity switch, stop in case of contact, alarm system, buffer, etc. to achieve the corresponding safety functions.

5. According to the reasonable requirements of customers, the company can develop the corresponding non-standard electric flat vehicle to achieve the required functions



Product features

1.The running distance is not limited for the battery powered transfer vehicle
2.Low using frequency(The spare battery can be provided if higher using frequency)
3.Despite of turning or going straight, the transfer vehicle can realize
4.Despite of running on indoor or outdoor, high temperarture or explosive environment, ferry or cross rail, the transfer cart can realize.
5.Dimensions,capacity, loading platform superstructure, speed and many others special funcition can be customized as per client request C


Product superiority

1. This series of flat cars has the advantages of safety, mobility and flexibility, the operation is not limited by distance, the speed is adjustable, the dc motor of flat cars has the advantages of stable start, large start torque, small impact on the reducer, low voltage, long service life and so on.

The track laying requirements are not high, suitable for use frequency is not high, long-distance transport occasions.

2. The transfer cart adopts dc motor, suitable for frequent use, with higher safety and mobility flexibility.

It can be equipped with hard tooth surface reducer to make the maintenance of flat car easier.

3. This series of electric flat car mechanism is relatively simple, convenient for maintenance, easy to disassemble and assemble, strong bearing capacity, long service life, low requirement for track laying, low cost, suitable for harsh environment, high-temperature environment, and other occasions.

4. Transfer cart is suitable for all kinds of environment, can work in indoor, outdoor, flammable and explosive environment, can also be added to the flat car hydraulic device, buffer device. Simple operation, in the case of transport distance is far, can be added on the flat car with the operating platform, to meet the customer long-distance transport, to achieve a humanized design.

5. PLC control system can be added to the flat car, automatic rail car, greatly increase the work efficiency.

Product details

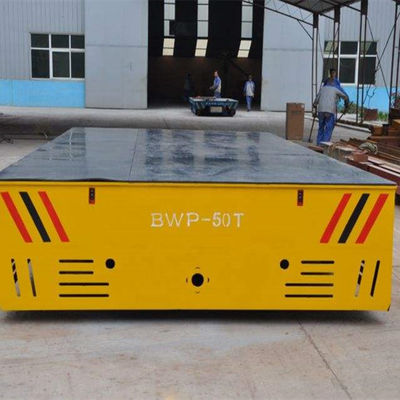

5T Heavy Material Transfer Cart CE Approved Customized Diameter 2 Universal Wheels 0

Technical parameters

5T Heavy Material Transfer Cart CE Approved Customized Diameter 2 Universal Wheels 1

ModleKPX-10TKPX-30TKPX-50TKPX-80TKPX-100TKPX-150T
Table Size (m)3.6*2.0*0.54.5*2.2*0.65.5*2.5*0.656.0*2.6*0.86.5*2.8*0.910*3.0*1.2
PowerMaintenance Free Battery
Rail inner Gauge1435mm1435mm1435mm1800mm2000mm2000mm
Wheel Dia.350mm400mm500mm600mm600mm600mm
Running Speed0-20m/min0-20m/min0-20m/min0-20m/min0-20m/min0-20m/min
Motor Power1.6kw3.5kw5kw8kw10kw15kw
Battery Capacity180Ah250Ah330Ah400Ah440Ah600Ah
Battery Volatge48v48v48v72v72v72v
Max Wheel Load42.6Kn110.4Kn174Kn278.4Kn343.8Kn265.2Kn
Reference weight4.2t6.8t8t12.8t14.6t26.8t
Recommend RailP24P38P43P50QU100QU100
