    Product Details:

    Place of Origin: Henan, China
    Brand Name: SANTO
    Certification: CE ISO TUV
    Model Number: BZ BX BB

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiable
    Packaging Details: Steel frame parts of jib crane packaged in rain cover and electrical parts packaged in wood box.
    Delivery Time: 20-30 working days after receiving the deposit.
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 1300 set per year
    Detailed Product Description
    Application: Cranes, Lifting, Pulling, Hoisting Load Capacity: 1-10ton
    Span: 5m Max. Lifting Height: 10m
    Hoisting Mechanism: CD1/MD1type Electric Hoist Control Method:: Radio Controlled Pendent Control
    Power Source: 3 Phase 380V 50hz Rotation Angle: 90/180 /270 /345/360 Degree





    New type free standing 360 degree rotate slewing 5ton jib crane price, workshop used jib crane for sale

    This floor mounted slewing jib crane is designed for heavy lifting, able to rotate 360 degrees. Used indoors or outdoors for production lines, depatch areas or general workshop applications.
    The SANTO design allows maximum height of lift in restricted areas.

    Crane comes complete with the following:   Free Standing Jib Crane With Slewing Cantilever Arm / Limit Switch Available


    • Set of signs to meet workcover requirements.
    • 15 year structural warranty certificate.
    • Operator and maintenance manual.
    • Crane is supplied with end warning stripes, capacity sign & data plate.

    Note:

    • Swing distance and height can be modified on request.
    • Suitability of existing base structure for imposed loads is the responsibility of the purchaser.

    Features:

    • Model Capacity Range: 0.5 ton to 10 ton
    • Outreach Range: 2m to 12m
    • Maximum Slew: 360 degrees
    • Surface Treatment: Indoor or Outdoor Paint System
    • Cranes Built to Quality Standard ISO9001

    Crane Options:

    • Hoist and Trolley (motorised or manual)
    • Jib Lock
    • Slew limits
    • Motorised or Manual Slew Drives
    • Crane Electrics
    • Explosion Protection in accordance to ATEX
    • Custom Paint Systems, Hot Dip Galvanised

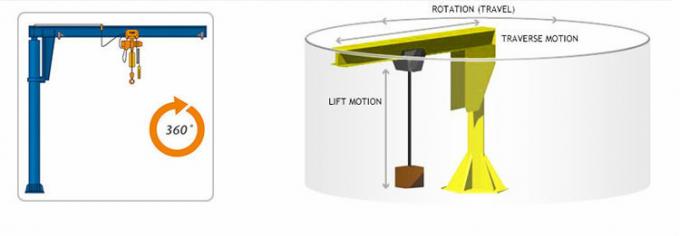

    Sketch & Parameters

    Load Capacity: 0.5 ton, 1 ton, 2 ton, 3 ton, 5 ton, 10 ton

    Arm Length, Span: 2m on wards

    Lift Height: 1.5m onwards

    Free Standing Jib Crane With Slewing Cantilever Arm / Limit Switch Available

    Load Capacity, t Arm Length, A, m Lift Height, h, m Total Height, H, m Lift Speed, m/min Travel Speed, m/min
    0.5 As Required 1.5 h+0.5 7 10/20
    1 As Required 1.5 h+0.55 8 10/20
    2 As Required 1.5 h+0.55 8 10/20
    3 As Required 1.5 h+0.6 8 10/20
    5 As Required 1.5 h+0.7 7 10/20
    10 As Required 1.5 h+0.75 7 10/20

    Free Standing Jib Crane With Slewing Cantilever Arm / Limit Switch Available

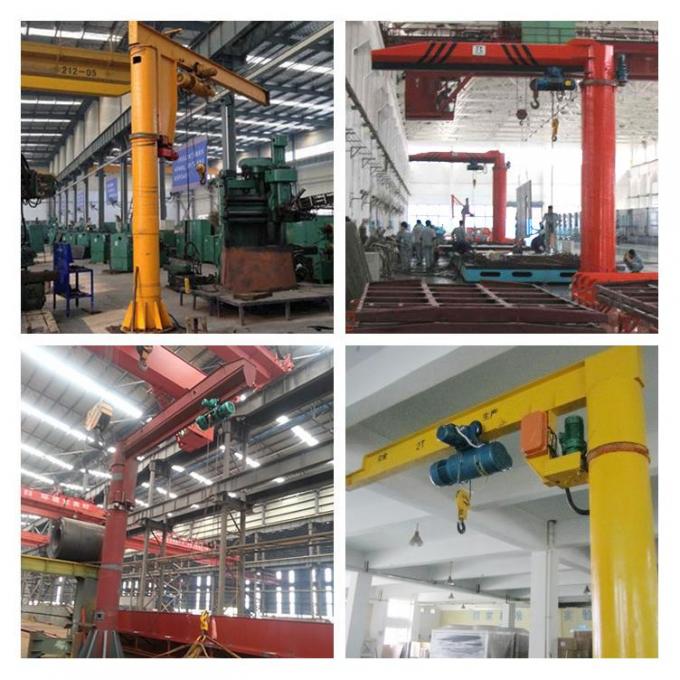

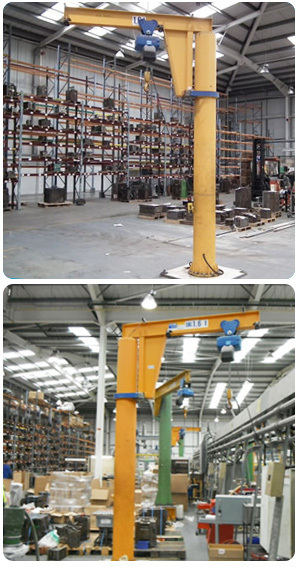

    Product Showing



    Free Standing Jib Crane With Slewing Cantilever Arm / Limit Switch Available

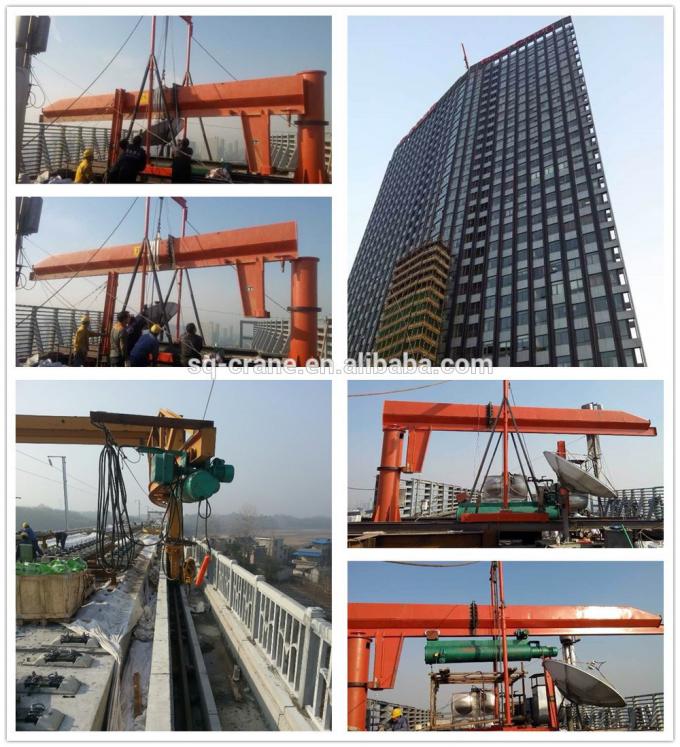

    Jib Crane for Building Construction
    Free Standing Jib Crane With Slewing Cantilever Arm / Limit Switch Available

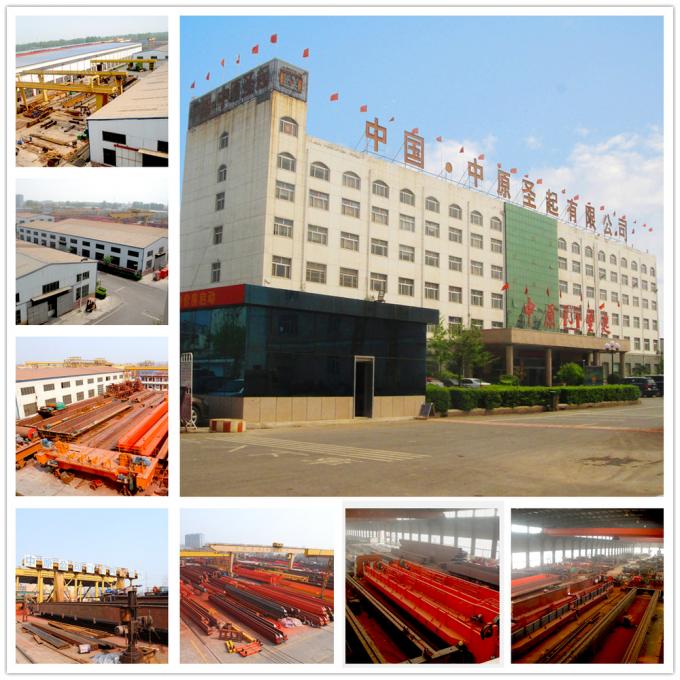

    Company View

    Free Standing Jib Crane With Slewing Cantilever Arm / Limit Switch Available

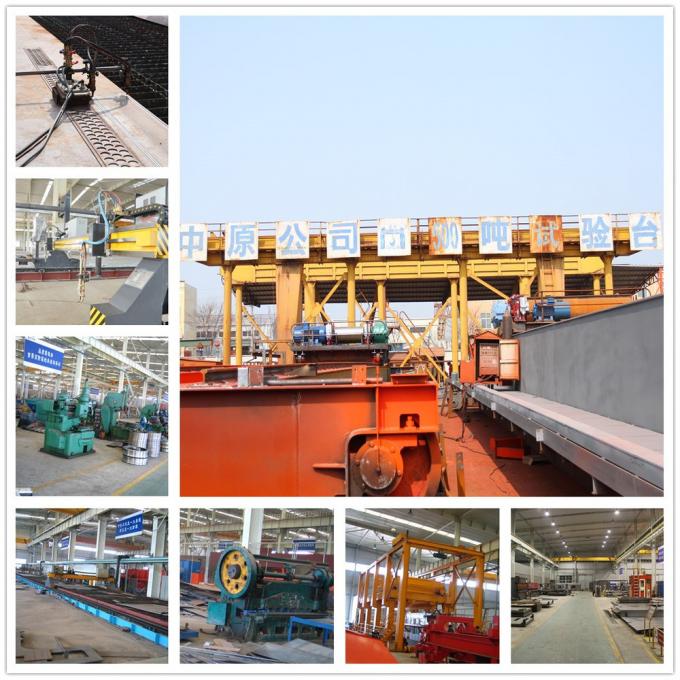

    Equipment Showing

    Free Standing Jib Crane With Slewing Cantilever Arm / Limit Switch Available

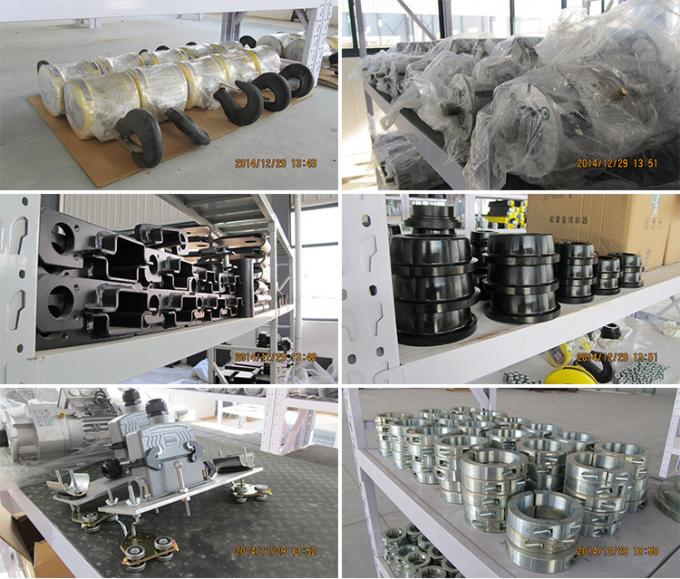

    Spare parts Showing

    Free Standing Jib Crane With Slewing Cantilever Arm / Limit Switch Available

    Customer Visiting

    Free Standing Jib Crane With Slewing Cantilever Arm / Limit Switch Available




    Package & Shipment
    Free Standing Jib Crane With Slewing Cantilever Arm / Limit Switch Available

    Certificates


    Free Standing Jib Crane With Slewing Cantilever Arm / Limit Switch Available
