7.5 Ton Low Headroom Trolley Hoist 6.6m/min High Efficiency Long Working Life

China 7.5 Ton Low Headroom Trolley Hoist 6.6m/min High Efficiency Long Working Life supplier
7.5 Ton Low Headroom Trolley Hoist 6.6m/min High Efficiency Long Working Life supplier 7.5 Ton Low Headroom Trolley Hoist 6.6m/min High Efficiency Long Working Life supplier 7.5 Ton Low Headroom Trolley Hoist 6.6m/min High Efficiency Long Working Life supplier 7.5 Ton Low Headroom Trolley Hoist 6.6m/min High Efficiency Long Working Life supplier

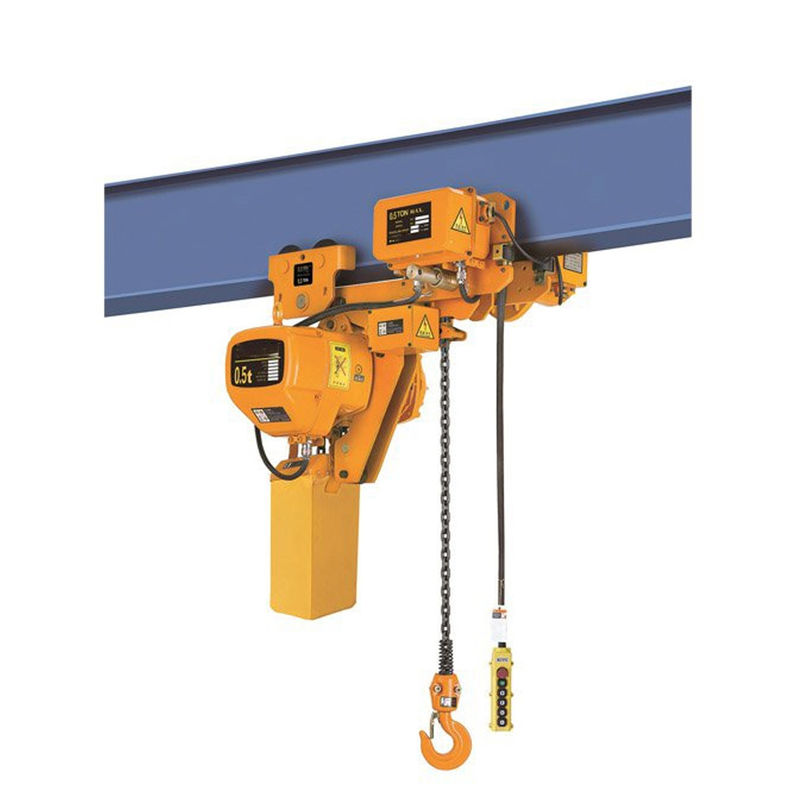

Large Image :  7.5 Ton Low Headroom Trolley Hoist 6.6m/min High Efficiency Long Working Life

Product Details:

Place of Origin: China
Brand Name: Silence
Certification: ISO CE
Model Number: HHBB

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: High quality standard plywood box
Delivery Time: 10 work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 3000 sets/per month
Contact Now
Detailed Product Description
Color: Yellow Voltage: 220V--- 440V
Lifting Speed: Single/double Speed Travelling Speed: 10 Or 20 M/min
Over Load Limit: Available Lift Speed: 6.6m/min

7.5 ton Low headroom hoist electric trolley type electric chain hoist


Product description

Electric Chain Hoist is designed to meet the user's particular application such as Hook Suspension.

Electric Trolley in Low Headroom type, and load capacity ranged from 250kg to 50ton. It is engineered for a high working efficiency and long working life.

Electric Chain Hoist is typical of unique optimal structure in shortening the distance between the machine body and the beam tracks, applicable to operations in side low buildings, especially suitable for use in temporarily erected plant buildings or on the sites where expansion of effective hoisting spaces inside the buildings is required the Most important parts of the Machine is Chain and brake system.



Technical parameters

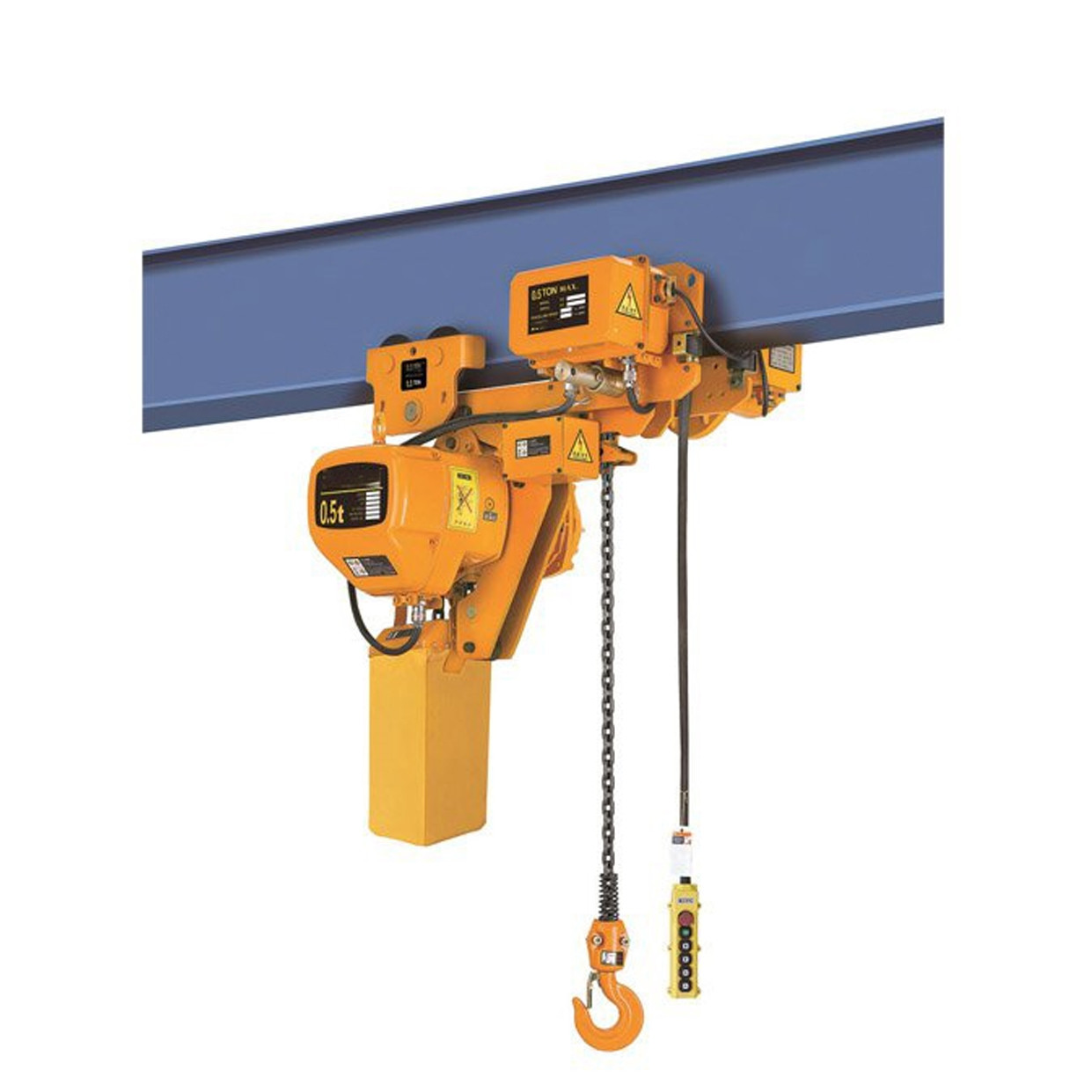

7.5 Ton Low Headroom Trolley Hoist 6.6m/min High Efficiency Long Working Life

Model HSY Capaacity TON Lifting Speed(M/min) Power (KW) Strands of load chain(mm) G/N(kg)
HHBB0.5-01 0.5 7.2 1.1 6.3 42/46
HHBB01-01 1 6.8 1.5 7.1 59/64
HHBB01-02 1 3.6 1.1 6.3 49/53
HHBB02-01 2 6.6 3 10 109/121
HHBB02-02 2 3.4 1.5 7.1 68/73
HHBB03-01 3 5.6 3 11.2 113/125
HHBB03-02 3 3.3 3 10 127/139
HHBB03-03 3 2.2 1.5 7.1 85/95
HHBB05-02 5 2.8 3 11.2 138/150
HHBB7.5-03 7.5 1.8 3 11.2 192/208
HHBB10-04 10 2.8 3.0*2 11.2 300/330



SIZE SPECIFICATION
MODEL H A B D E
HHBB0.5-01 635 460 230 288 165
HHBB01-01 650 520 260 300 176
HHBB01-02 660 460 230 288 165
HHBB1.5-01 770 615 295 430 265
HHBB02-01 770 615 295 430 265
HHBB02-02 815 520 260 300 236
HHBB2.5-01 830 615 295 430 265
HHBB03-01 830 615 295 430 265
HHBB03-02 930 615 295 430 320
HHBB03-03 940 520 260 350 205
HHBB05-02 1015 615 295 430 325
HHBB7.5-03 1200 615 295 505 320
HHBB10-04 1190 630 315 890 445



Product details

Shell: light aluminum alloy case, light and strong, high heat dissipation rate, fully sealed design suitable for use in poor operating conditions.

Reverse phase protection device: it is a special electrical device. When the power connection is wrong, the control circuit cannot move.

Switch: there are switch devices on and off heavy lifting to make the motor stop automatically to prevent the chain from exceeding and ensure safety.

24V/36V device: in case of leakage in the switch during operation, it can prevent other accidents.

Side magnetic brake device: this device can realize the instantaneous brake when the power is cut off.

Chain bag: light, beautiful and durable.

Chain: imported FEC80 super heat treatment alloy steel chain.



Product superiority

1. Light weight
2. High safety performance
3. Dual braking system
4. Emergency switch setting


Packaging and production line

7.5 Ton Low Headroom Trolley Hoist 6.6m/min High Efficiency Long Working Life7.5 Ton Low Headroom Trolley Hoist 6.6m/min High Efficiency Long Working Life
