0.5 - 10 Ton High Speed Electric Winch With Wireless Remote Control 380V 50Hz

0.5 - 10 Ton High Speed Electric Winch With Wireless Remote Control 380V 50Hz
0.5 - 10 Ton High Speed Electric Winch With Wireless Remote Control 380V 50Hz 0.5 - 10 Ton High Speed Electric Winch With Wireless Remote Control 380V 50Hz 0.5 - 10 Ton High Speed Electric Winch With Wireless Remote Control 380V 50Hz 0.5 - 10 Ton High Speed Electric Winch With Wireless Remote Control 380V 50Hz

Large Image :  0.5 - 10 Ton High Speed Electric Winch With Wireless Remote Control 380V 50Hz

Product Details:

Place of Origin: China
Brand Name: SILENCE
Certification: ISO CE
Model Number: JM JK

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: High quality plywood crate
Delivery Time: 15 days after receiving deposit
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100 set/per month
Detailed Product Description
Power Source: 380v 50hz Color: According To Your Requirements
Brake: Independent Hydraulic Brake Electric Brand: Schneider Brand
After-sale Service: Engineers Available To Service Machinery Overseas Working Temperature: -25-40℃
Application: Building Construction, Cranes, Bridge/Road, Shipyard, Boat
High Light:

electric wire rope winch

,

marine electric winch

0.5ton~10ton high speed electric winch with wire rope wireless remote control

Product description

  • Our main products are type JK (fast) JM(slow) JT(speed) JKL(slide release) series winch;
  • We can produce non-standard winches marines,marine,fixed hoist,mobile hoist,single and double girder cranes,ZQ series reducer,etc.
  • Our products are widely used in mining,metallurgy,construction,ports chemical,road and bridge,install,dock,oil fields,etc.
  • Our products are exported to oversea,Southeast Asia,Europe and Africa, and theproduction of single rope pull the largest JM200t hoist in china.
  • Silence Industry,who will follow their usual commitment to quality,service commitment and credibility of the commitment to customer satisfaction as our highest and most seek.

Feature of electric winch


1) Reasonable structure and design hoist
2) Easy to install and Maintenance
3) High efficiency and stable performance
4) Top quality with competitive and economic price
5) Double Speed: Low Speed and Normal Speed



Safty Device of electric winch


1. Double Limit Switch,
2. Current overload protection function,
3. High quality polyurethane materials buffer.
4. Emergency stop system.


Product details

1. Pure copper motor: pure copper motor has the characteristics of magnetic sensitivity, high melting point and low loss, and large cooling port.

2. High-quality reel: the reel is made of seamless steel tube, strong and durable without deformation.

3. Channel steel base: thicken the channel steel base to enhance the stability of the machine.

4. Refined steel enclosure: the motor enclosure is made of high-quality refined steel, which protects the internal parts from being assembled tightly.

Technical parameters

Model Rated pull of rope(KN) Wire rope speed rating(m/min) Minimum wire rope diameter(mm) Motor Total weight(kg) Size
type power length width height
JM1 10 15 9.3 YZR 112M-6 2.2 270 740 690 490
JM2 20 16 13

YZR

160M-6

7.5 550 940 900 570
JM3 30 9.5 15.5 YZR 160M-6 7.5 1100 1430 1160 910
JM5 50 9.5 21.5

YZR

160L-6

11 1800 1620 1260 948
JM10 100 8 30 YZR 200L-6 22 3800 2280 1500 950
JM16 160 10 37

YZR

250M-8

37 8800 3750 2400 1850
JM20 200 10 43 YZR 280S-8 45 9900 3950 2560 1950
JM25 250 9 48 YZR 280M-8 55 13500 4350 2800 2030
JM32 320 9 52 YZR 315S-8 75 20000 4500 2850 2100




Product process

0.5 - 10 Ton High Speed Electric Winch With Wireless Remote Control 380V 50Hz 0
Professional equipment production workshop, product quality assurance, production process orderly division of labor.

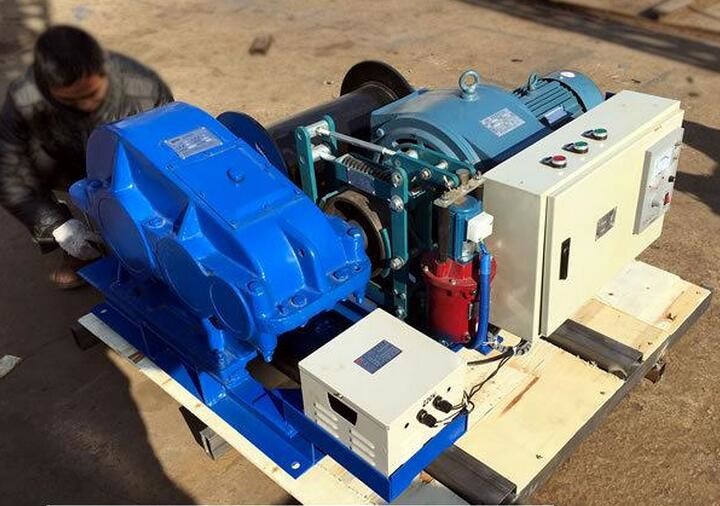

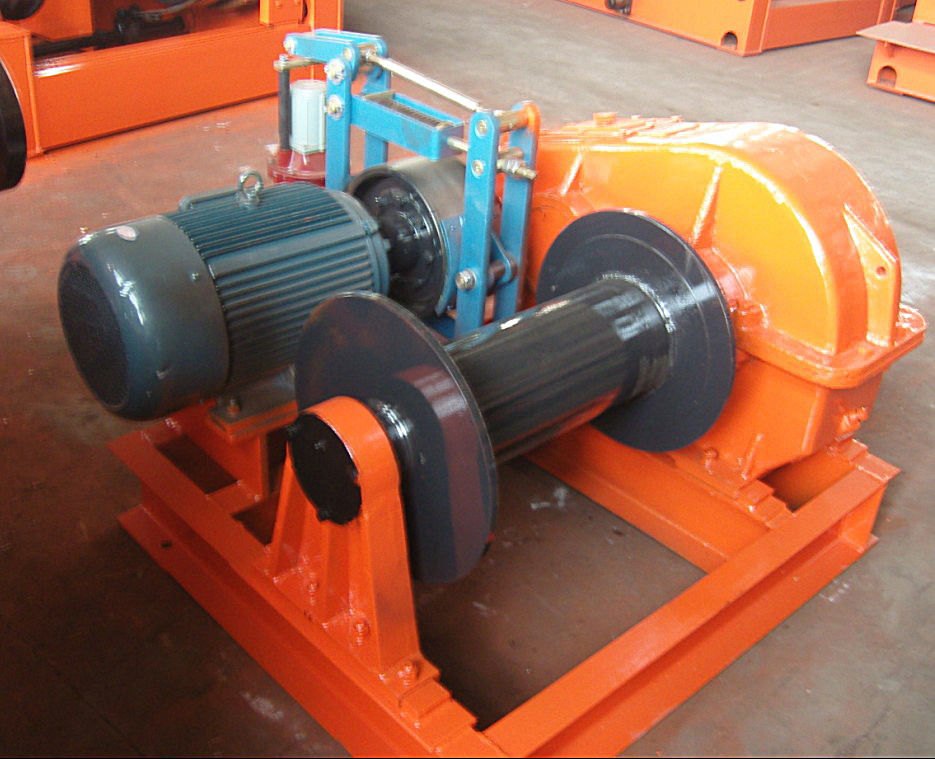

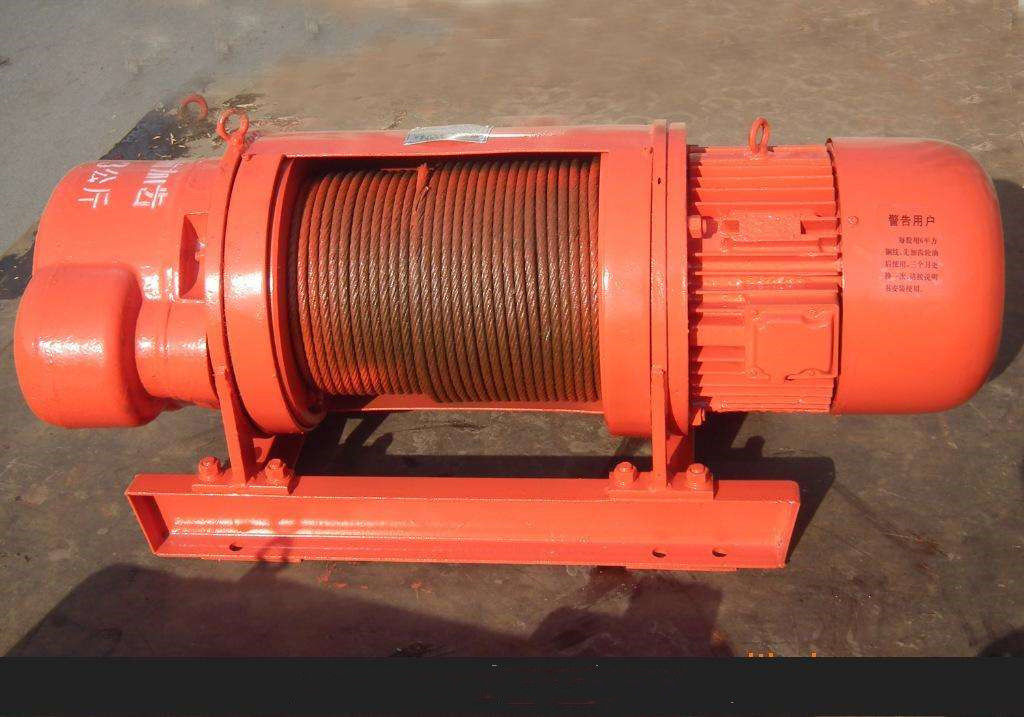

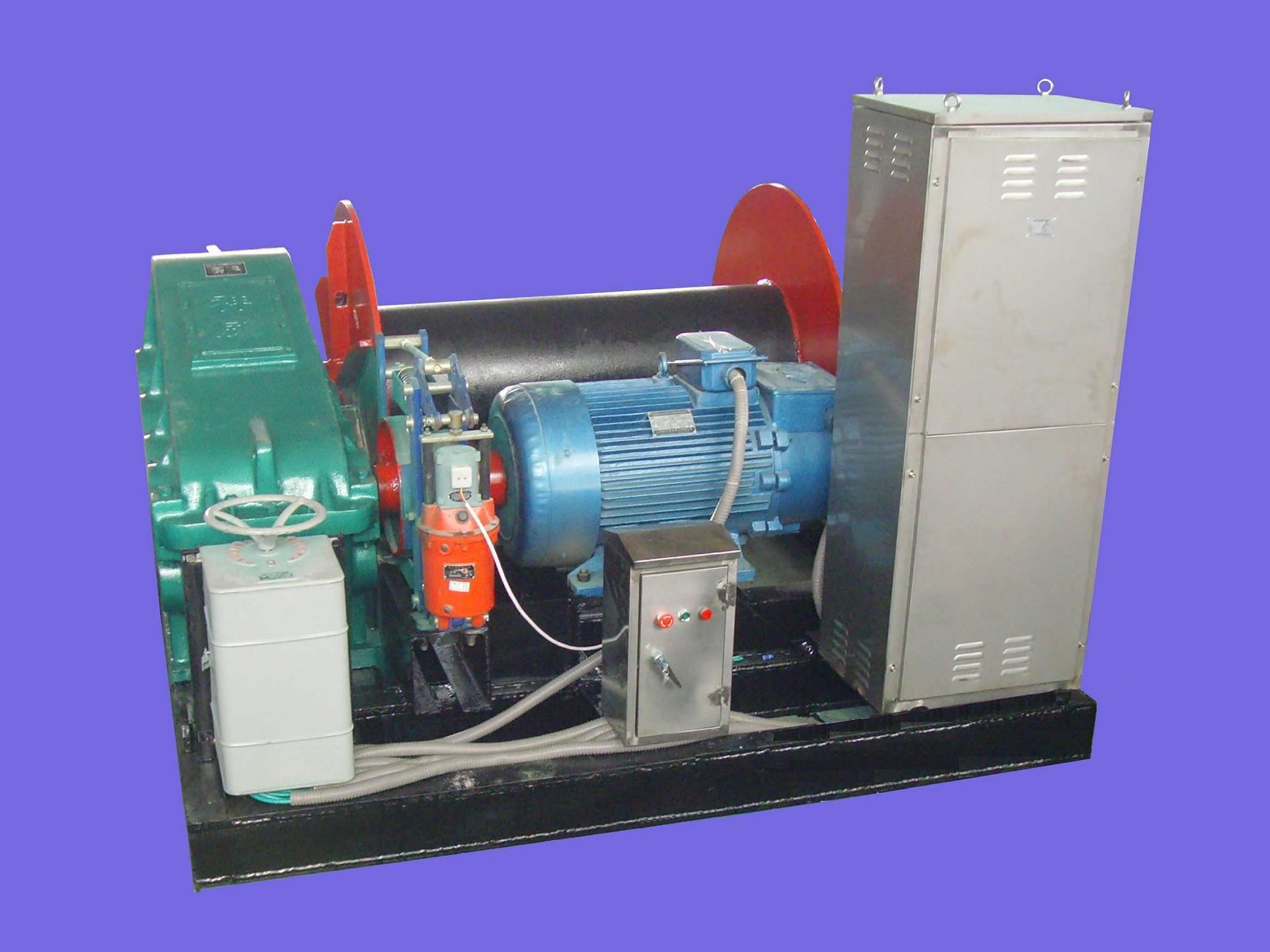

Product display



0.5 - 10 Ton High Speed Electric Winch With Wireless Remote Control 380V 50Hz 1



Packaging

0.5 - 10 Ton High Speed Electric Winch With Wireless Remote Control 380V 50Hz 2
