Vertical Lifting Industrial Electric Winch , 10 Ton Marine Electric Winch

Vertical Lifting Industrial Electric Winch , 10 Ton Marine Electric Winch
Vertical Lifting Industrial Electric Winch , 10 Ton Marine Electric Winch Vertical Lifting Industrial Electric Winch , 10 Ton Marine Electric Winch Vertical Lifting Industrial Electric Winch , 10 Ton Marine Electric Winch Vertical Lifting Industrial Electric Winch , 10 Ton Marine Electric Winch

Large Image :  Vertical Lifting Industrial Electric Winch , 10 Ton Marine Electric Winch

Product Details:

Place of Origin: China
Brand Name: SILENCE
Certification: ISO CE
Model Number: JM JK

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: High quality plywood crate
Delivery Time: 15 days after receiving deposit
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100 set/per month
Detailed Product Description
Power Source: 380v 50hz Sling Type: Wire Rope
Brake: Independent Hydraulic Brake Electric: Schneider Brand
Structure: Cable Drum, Motors, Wire Rope, Electric Speed: Up To 30 M/min
Application: Building Construction, Cranes, Bridge/Road, Shipyard, Boat
High Light:

high speed electric winch

,

electric wire rope winch

Motor lift electric winch 10 ton marine used

Product description



In the industry, motor lift electric winch 10 ton marine is most commonly used , widely for hoisting and dragging the weight materials, The wire rope is arranged in orderly, which can divided into construction winch, marine winch, anchor winch, mine winch, building winch, cable winch, etc. According to the speeds and structures, it contains JM, JK, JMM, JKL, JC, ZKJ, JKD, etc. All the designing are required of Chinese Crane Standard.



Feature of electric winch


1) Reasonable structure and design hoist
2) Easy to install and Maintenance
3) High efficiency and stable performance
4) Top quality with competitive and economic price
5). Double Speed: Low Speed and Normal Speed



Safty Device of electric winch


1. Double Limit Switch,
2. Current overload protection function,
3. High quality polyurethane materials buffer.
4. Emergency stop system.


Product details

1. Pure copper motor: pure copper motor has the characteristics of magnetic sensitivity, high melting point and low loss, and large cooling port.

2. High-quality reel: the reel is made of seamless steel tube, strong and durable without deformation.

3. Channel steel base: thicken the channel steel base to enhance the stability of the machine.

4. Refined steel enclosure: the motor enclosure is made of high-quality refined steel, which protects the internal parts from being assembled tightly.

Technical parameters

Model Rated pull of rope(KN) Wire rope speed rating(m/min) Minimum wire rope diameter(mm) Motor Total weight(kg) Size
type power length width height
JM1 10 15 9.3 YZR 112M-6 2.2 270 740 690 490
JM2 20 16 13

YZR

160M-6

7.5 550 940 900 570
JM3 30 9.5 15.5 YZR 160M-6 7.5 1100 1430 1160 910
JM5 50 9.5 21.5

YZR

160L-6

11 1800 1620 1260 948
JM10 100 8 30 YZR 200L-6 22 3800 2280 1500 950
JM16 160 10 37

YZR

250M-8

37 8800 3750 2400 1850
JM20 200 10 43 YZR 280S-8 45 9900 3950 2560 1950
JM25 250 9 48 YZR 280M-8 55 13500 4350 2800 2030
JM32 320 9 52 YZR 315S-8 75 20000 4500 2850 2100




Product process

Vertical Lifting Industrial Electric Winch , 10 Ton Marine Electric Winch 0
Professional equipment production workshop, product quality assurance, production process orderly division of labor.

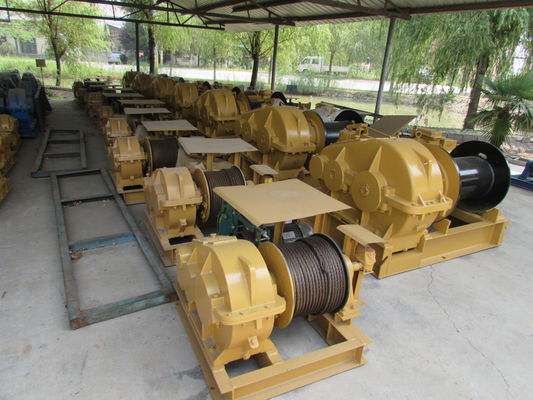

Product display



Vertical Lifting Industrial Electric Winch , 10 Ton Marine Electric Winch 1



Packaging

Vertical Lifting Industrial Electric Winch , 10 Ton Marine Electric Winch 2
