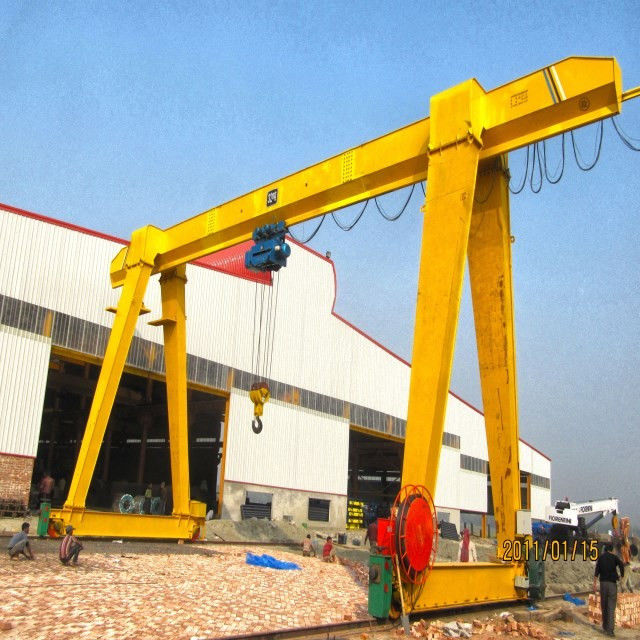

Material Handling 10 Ton Mobile Gantry Crane Single Girder Steel Box Type

Minimum Order Quantity : 1 set Price : Negotiable
Packaging Details : Electrical, hoist and other parts packed by high quality plywood crate; Beams packed by rain proof plastic cloth Delivery Time : 20 days
Payment Terms : L/C, T/T Supply Ability : 4 sets
Place of Origin: China Brand Name: Silence
Certification: ISO CE Model Number: MH

Detail Information

Track Type: P30 P38 Lifting Speed: 0-8m/min
Warranty: 24 Months Rated Lifting Moment: 100KN
After-sales Service Provided: Video Technical Support Crane Feature: Safety,steel Box Type
High Light:

single beam gantry crane

,

container gantry crane

Product Description

Material Handling 10 Ton Mobile Single Girder Gantry Crane Manufacturer


Product presentation

Single girder gantry crane is a kind of track traveling mid-light type crane, used together with CD, MD, HC model electrical hoist, according to the shape, it also divided into MH type and MHLP type gantry crane.

MH type single girder gantry crane has box type and truss type, the former has good techniques and easy fabrication, the latter is light in dead weight and strong in wind resistance. For different usage, the MH gantry crane also has cantilever and non-cantilever gantry crane.

If you have cantilevers, the crane can load the goods to the crane edge through the supporting legs, which is very convenient and high efficiency.

MHLP type single girder gantry crane is L-type partial hanging gantry crane, with small size and light-duty, special for putting steel pipes, girders, or other long materials into the special place, widely used in steel plant, concrete girder yard.

Construction features

1. Metal part

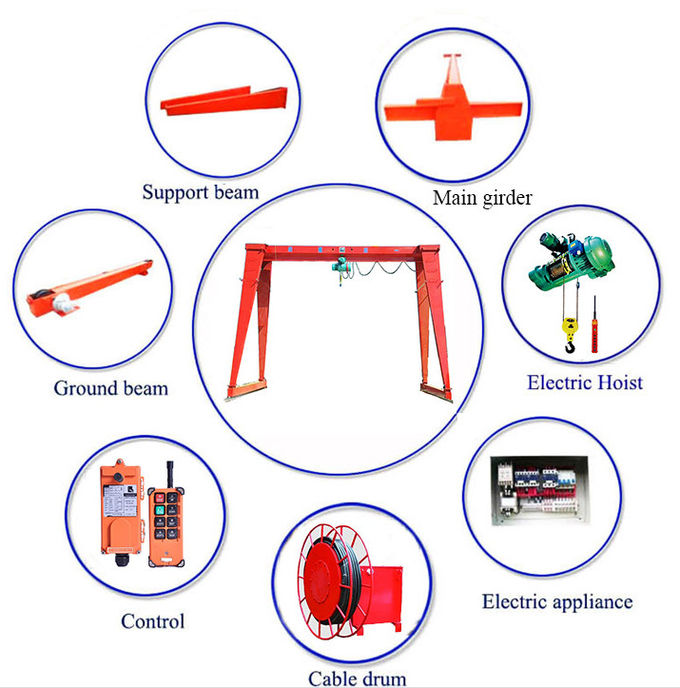

This electric hoist gantry crane is mainly composed of the main beam, supporting leg and lower beam.

The main beam and lower beam are box structure welded by four steel plates, and the supporting leg is box structure welded by four steel plates.

The electric hoist walks directly under the i-steel lower flange plate of the main beam.

For convenient storage and transportation, the main beam, supporting leg and lower beam is connected with M20 bolts to become one.

2. Electric hoist

Wire rope lifting, single speed, with traveling trolley and reducer, drum and motor, include overload limiter switch

Protection class F class

Drop Forged Hook, Plain ‘C’ type, Swiveling on Thrust Bearing, equipped with belt buckle and wire ropes sheath

Nanjing special brand motor, soft start for smooth running, long design service life, the best motor in China

Self-produced. Drums made of high-quality seamless steel processed by the CNC machine.

Rope guide made of engineering plastic, lightweight, excellent wear resistance, reducing tear and wear of wire rope

High-quality wire rope, Strength of extension: 1670 N/m2

3. Operating mechanism

This product is in the form of separate drive, drive braking by cone rotor motor to complete;

Transmission is the use of "one open and one close" gear transmission.

4. Electrical equipment

Module control speed, micro-speed and double speed;

Traveling and lifting smoothly;

The power for trolley moving adopts flat cable, sliding smoothly;

Control box layout is reasonable, easy to repair;

Protection class IP55;

Optional main power source ;

All external cable line number with the mark;

Safety smooth touchline, high conductivity, small pressure drop;

Lightweight, installation convenience;

Set electric taxi speed is high, ensure continuous power supply;

Optional speed control module, and can realize the micro speed and double speed.

5. The specification of this product is expressed as follows:

(1).Ground controlling

Example: lifting weight 5t, span 7m, working-level A3.

Representation: MH5-7A3-D JB/t5663-2008

D is for ground control.

6.rail system:

Crane rails, clamp plate & press plate

High quality reputed make


Product details

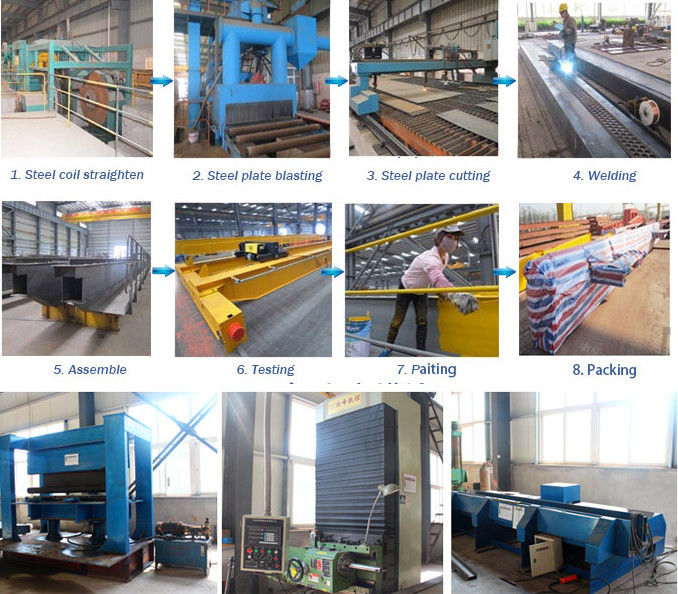

Material Handling 10 Ton Mobile Gantry Crane Single Girder Steel Box Type 0

Material Handling 10 Ton Mobile Gantry Crane Single Girder Steel Box Type 1

Technical parameters

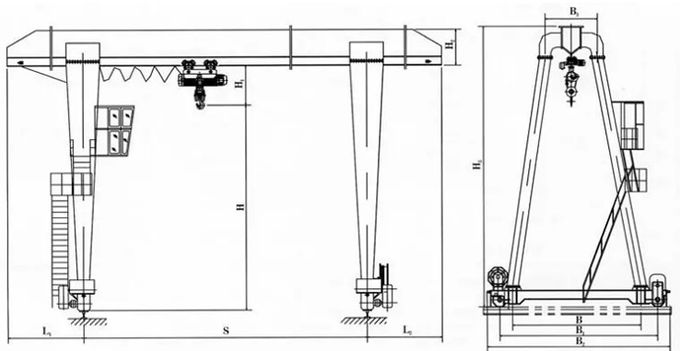

Material Handling 10 Ton Mobile Gantry Crane Single Girder Steel Box Type 2

Lifting capacity T 3 5 10 16
Span m 12,16,20,24,30
Operational method   Pendent line with press button/cabin/remote
speed Lifting m/min 8,8/0.8 8,8/0.8 7,7/0.7 3.5
Cross traveling 20 20 20 20
Long traveling Ground 20 20 20 20
Cabin 20,30,45 20,30,40 30,40 30,40
Motor Lifting Type/kw ZD41-4/4.5 ZDS1-4/0.4/4.5 ZD141-4/7.5 ZDS10.8/4.5 ZD151-4/13 ZDS11. .5/4.5 ZD151-4/13
Cross traveling ZDY12-4/0.4 ZDY121-4/0.8 ZDY21-4/0.8×2 ZDY121-4/0.8×2
Electric hoist Model CD1/MD1 CD1/MD1 CD1/MD1 CD1
Lifting height m 6,9,12,18,24,30
