Movealbe 100KN Single Girder Underslung Crane Steel Box Type

Minimum Order Quantity : 1 set Price : Negotiable
Packaging Details : Electrical, hoist and other parts packed by high quality plywood crate; Beams packed by rain proof plastic cloth Delivery Time : 20 days
Payment Terms : L/C, T/T Supply Ability : 4 sets
Place of Origin: China Brand Name: Silence
Certification: ISO CE Model Number: MH

Detail Information

Name: Single Beam Gantry Crane Track Type: P30 P38 Track
Lifting Speed: 0-8m/min Warranty: 24 Months
Rated Lifting Moment: 100KN Crane Feature: Safety,steel Box Type
High Light:

100KN Single Girder Underslung Crane

,

Box Type Single Girder Underslung Crane

,

100KN single beam gantry crane

Product Description

Movealbe 100KN Single Girder Underslung Crane Steel Box Type


Single Girder Underslung Crane is a cost-effective alternative wherever the installation of bridge cranes is impractical due to a need for a raised runway structure. They are also an ideal supplement to bridge cranes at the workstation level. It can lower the investment on structure and space.



Technical parameters

Movealbe 100KN Single Girder Underslung Crane Steel Box Type 0

Lifting capacity T 3 5 10 16
Span m 12,16,20,24,30
Operational method   Pendent line with press button/cabin/remote
speed Lifting m/min 8,8/0.8 8,8/0.8 7,7/0.7 3.5
Cross traveling 20 20 20 20
Long traveling Ground 20 20 20 20
Cabin 20,30,45 20,30,40 30,40 30,40
Motor Lifting Type/kw ZD41-4/4.5 ZDS1-4/0.4/4.5 ZD141-4/7.5 ZDS10.8/4.5 ZD151-4/13 ZDS11. .5/4.5 ZD151-4/13
Cross traveling ZDY12-4/0.4 ZDY121-4/0.8 ZDY21-4/0.8×2 ZDY121-4/0.8×2
Electric hoist Model CD1/MD1 CD1/MD1 CD1/MD1 CD1
Lifting height m 6,9,12,18,24,30

Construction features

1. Metal part

This electric hoist gantry crane is mainly composed of the main beam, supporting leg and lower beam.

The main beam and lower beam are box structure welded by four steel plates, and the supporting leg is box structure welded by four steel plates.

The electric hoist walks directly under the i-steel lower flange plate of the main beam.

For convenient storage and transportation, the main beam, supporting leg and lower beam is connected with M20 bolts to become one.

2. Electric hoist

Wire rope lifting, single speed, with traveling trolley and reducer, drum and motor, include overload limiter switch

Protection class F class

Drop Forged Hook, Plain ‘C’ type, Swiveling on Thrust Bearing, equipped with belt buckle and wire ropes sheath

Nanjing special brand motor, soft start for smooth running, long design service life, the best motor in China

Self-produced. Drums made of high-quality seamless steel processed by the CNC machine.

Rope guide made of engineering plastic, lightweight, excellent wear resistance, reducing tear and wear of wire rope

High-quality wire rope, Strength of extension: 1670 N/m2

3. Operating mechanism

This product is in the form of separate drive, drive braking by cone rotor motor to complete;

Transmission is the use of "one open and one close" gear transmission.

4. Electrical equipment

Module control speed, micro-speed and double speed;

Traveling and lifting smoothly;

The power for trolley moving adopts flat cable, sliding smoothly;

Control box layout is reasonable, easy to repair;

Protection class IP55;

Optional main power source ;

All external cable line number with the mark;

Safety smooth touchline, high conductivity, small pressure drop;

Lightweight, installation convenience;

Set electric taxi speed is high, ensure continuous power supply;

Optional speed control module, and can realize the micro speed and double speed.

5. The specification of this product is expressed as follows:

(1).Ground controlling

Example: lifting weight 5t, span 7m, working-level A3.

Representation: MH5-7A3-D JB/t5663-2008

D is for ground control.

6.rail system:

Crane rails, clamp plate & press plate

High quality reputed make

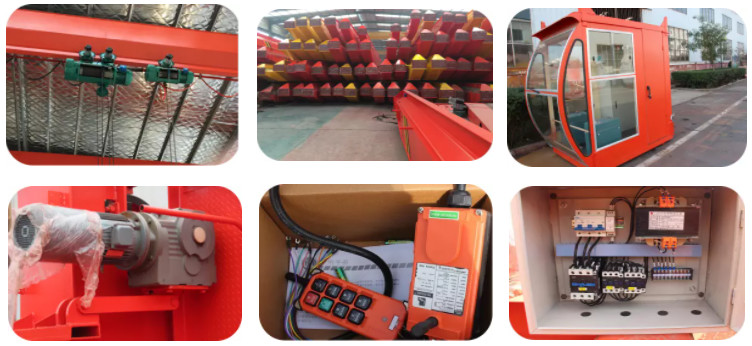

Single Girder Gantry Crane details
Movealbe 100KN Single Girder Underslung Crane Steel Box Type 1

Movealbe 100KN Single Girder Underslung Crane Steel Box Type 2
