Product Description
3.2 Ton Electric Wheel Portable Gantry Crane 2 Years Warranty Convenient Installation

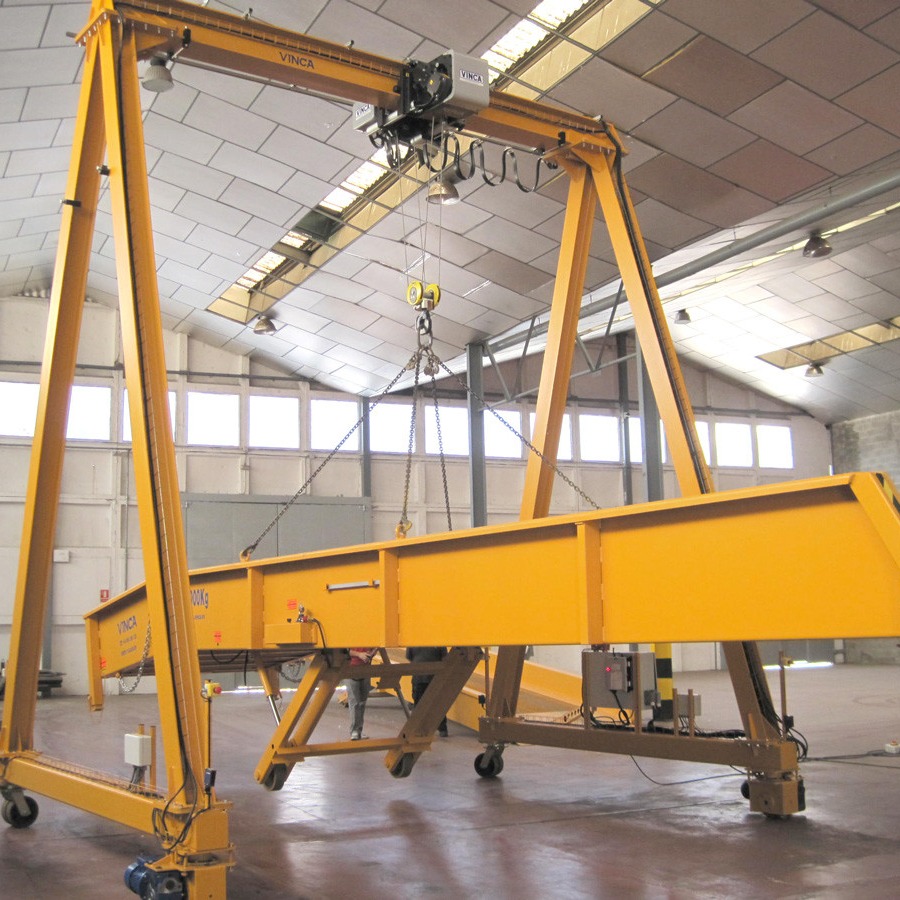

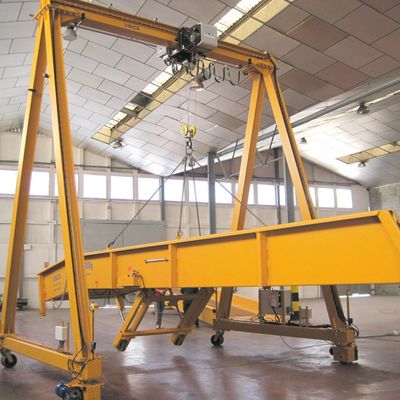

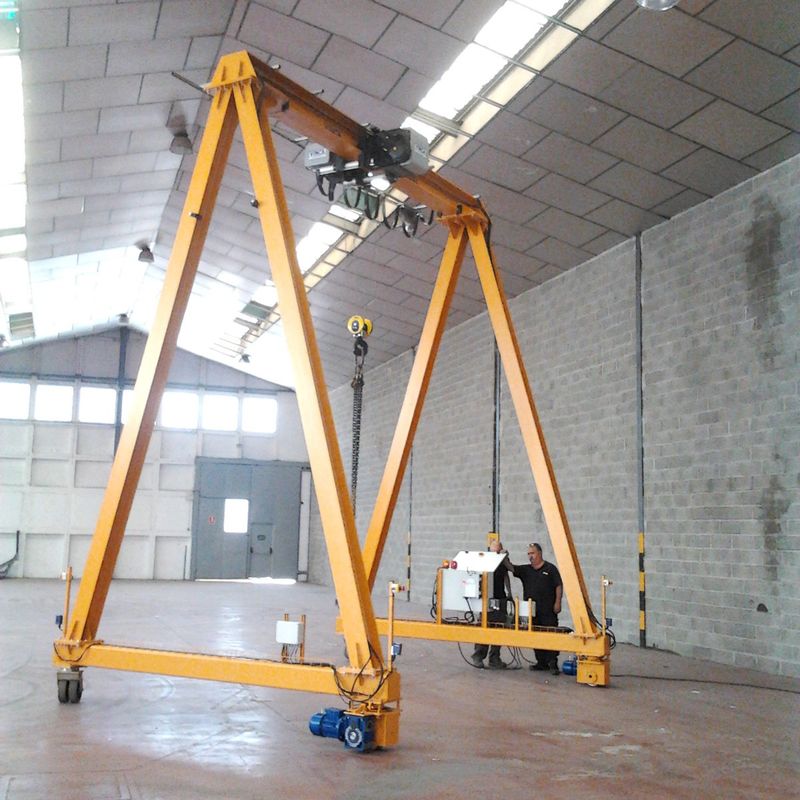

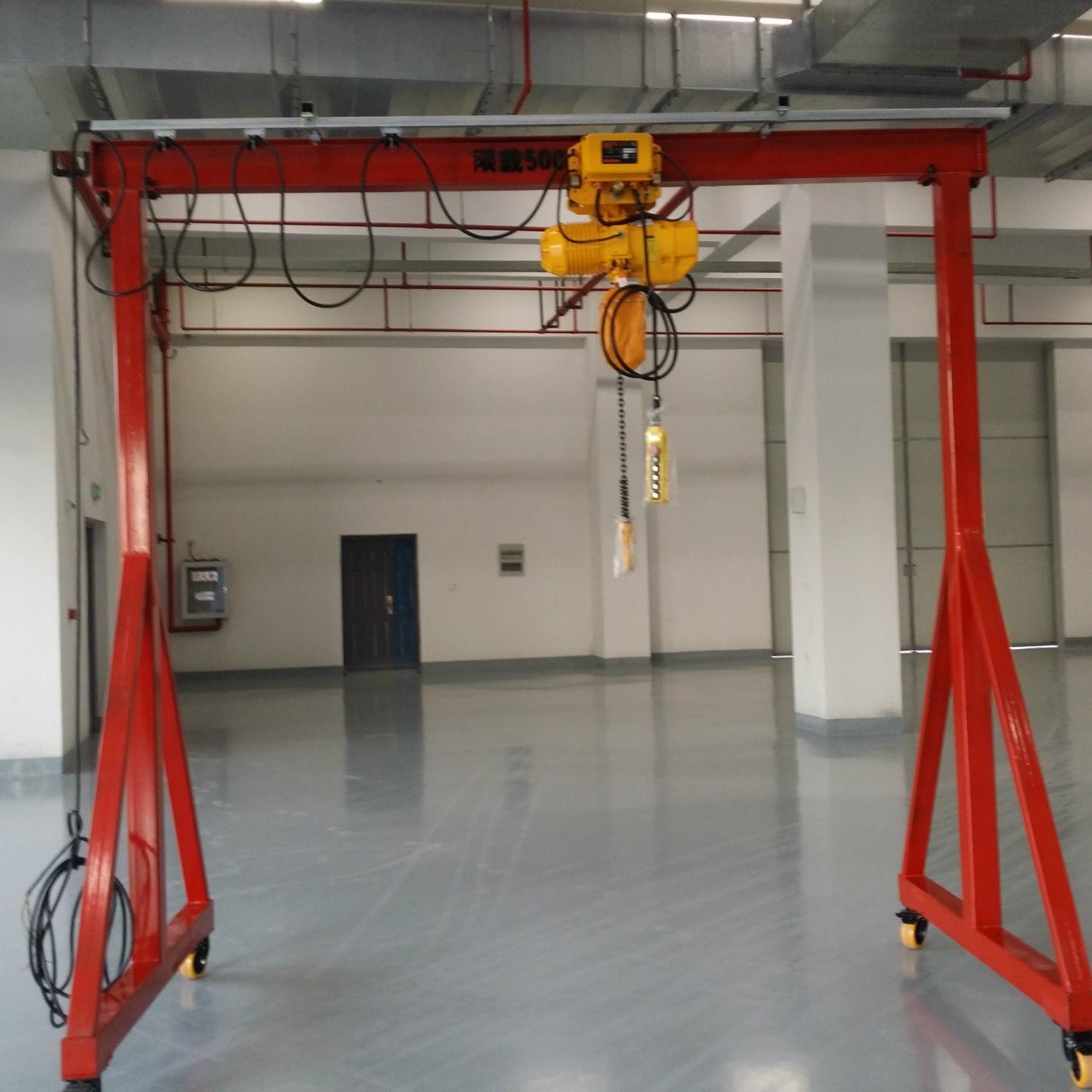

Product description of Portable Gantry Crane
The main girder of gantry crane bridge adopts I-shaped steel or combined section of steel mold and steel plate.Lifting trolley is usually assembled by hand hoist, electric hoist or hoist as lifting mechanism parts.It is forbidden to be used in the environment of flammable, explosive and corrosive media for lifting goods on different occasions.It has two operation modes, ground and air.
The ground operation has two kinds of wire handle operation and remote control handle operation;Air operation means operation in the driver's cab.The driver's cab has two kinds of open and closed, which can be divided into two forms of left or right installation according to the actual situation.
The entry direction has two kinds of side and end face, so as to meet the user's choice in different situations.Longmen crane is widely used in machinery manufacturing workshop, metallurgical workshop, petroleum, petrochemical, port, railway, civil aviation, power station, paper making, building materials, electronics and other industries of workshop, warehouse, material yard, etc.It has the advantages of compact size, low building headroom height, light weight, small wheel pressure and so on.
Technical parameters of Portable Gantry Crane
| Loading capacity |
0.25 ~ 20t |
| Lifting height |
3 ~ 10 m or customized |
| Lifting speed |
Single speed: 3~ 8 m/min; or customized |
| Span |
3~10 m |
| Lifting mechanism |
Hoist trolley |
| Working class |
A2 ~ A3 |
| Working temperature |
-20-+40℃ |
| Power supply |
AC-3Phase-220//230380/400/415/440V-50/60Hz |
| Control voltage |
DC-24 / 36V |
| Motor protection class |
IP54 IP55 IP65 |
| Control way |
Ground handle control(Push button),wireless remote control |
| Safety device |
Buffer, current overload protection,overload device,power failure protection |
| Application area |
Factory,workshop,warehouse,power station,logstic,etc. |
| Painting color |
Yellow,Red or Customzied |

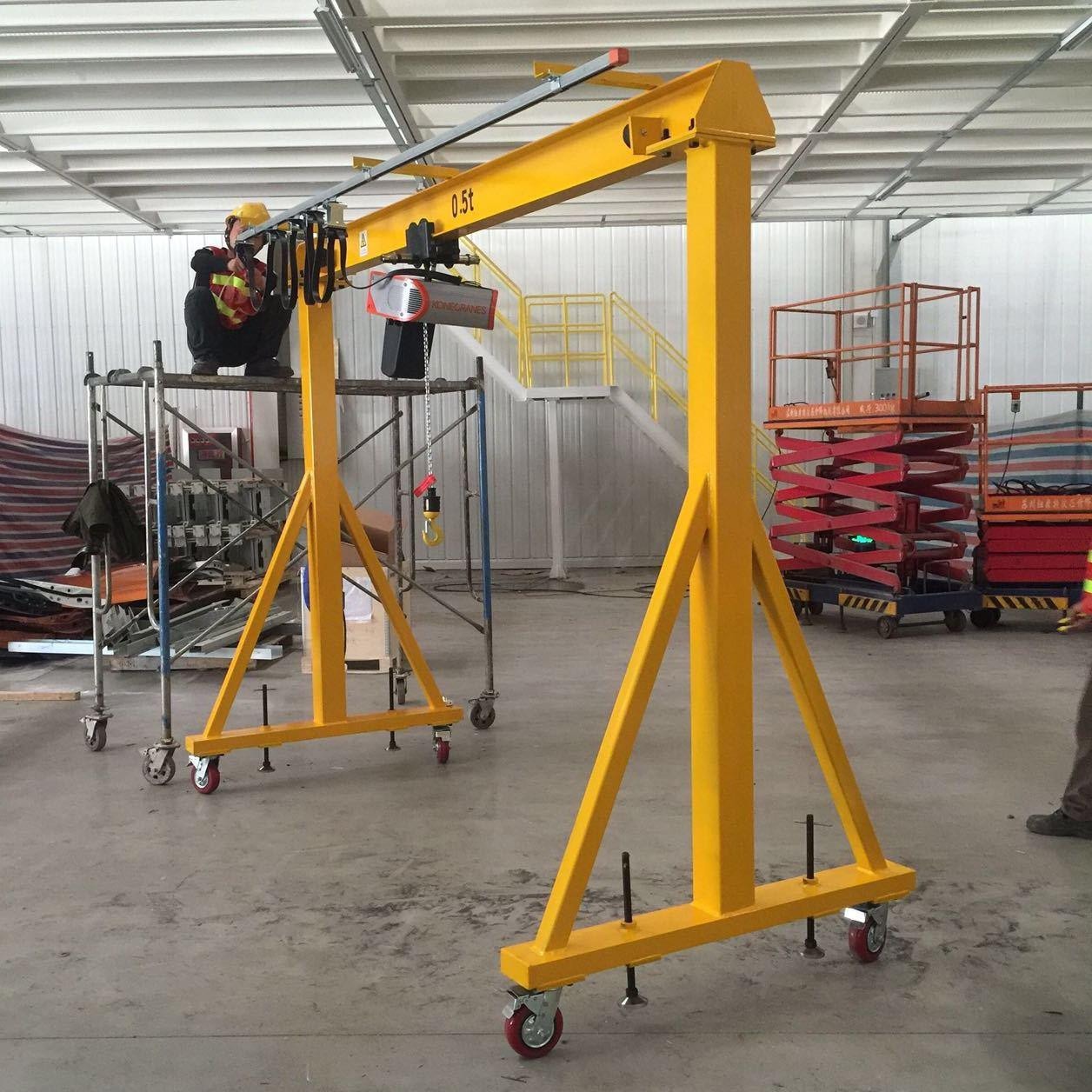

Features of Portable Gantry Crane
The unique portable gantry system can be safely lifted up to 5000kg with only 4 bolts for manual assembly.
Innovative, light weight, portable, safe and powerful carrying capacity
Portable gantry hoisting systems are the first choice for customers seeking safety
Meet multiple site enhancement solutions and healthy return on investment
Its unique features and security have been proven to meet the needs of users in various industries
Movable, to meet the lifting needs of different stations, especially for maintenance stations;
Adjustable height, good product passability, strong product applicability;
Modular combination, simple and quick disassembly, suitable for different station hoisting transfer field;
