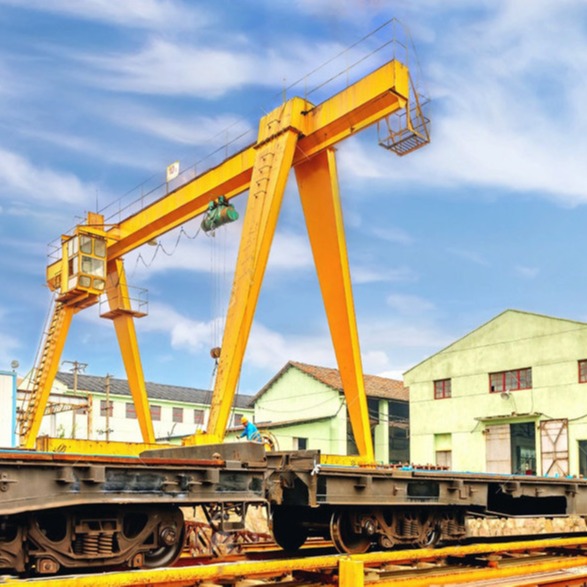

Rigid Box Type Mineral Area Single Beam Gantry Crane Span Up To 30M

Minimum Order Quantity : 1 set Price : USD15000-50000/set
Packaging Details : Electrical, hoist and other parts packed by high quality plywood crate; Beams packed by rain proof plastic cloth Delivery Time : 40 days
Payment Terms : L/C, T/T, Western Union Supply Ability : 2 sets/per month
Place of Origin: CHINA Brand Name: Silence
Certification: ISO CE Model Number: MH

Detail Information

Working Duty: A5 Lifting Speed: 0~8m/min
Crane Feature: High Reliability Running Speed: 20m/min
Application: Workshop Usage, Container Usage, Construction Usage Power Source: Electric
High Light:

Span 30M Single Beam Gantry Crane


Mineral Area Single Beam Gantry Crane


Span 30M rail mounted gantry crane

Product Description

Rigid Box Type Mineral Area Usage Single Girder Gantry Crane Span Up To 30M

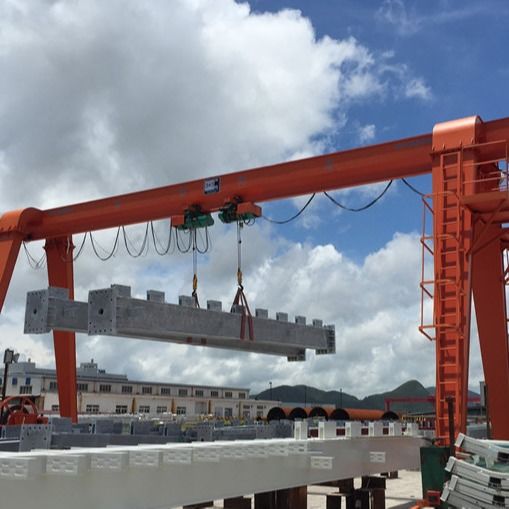

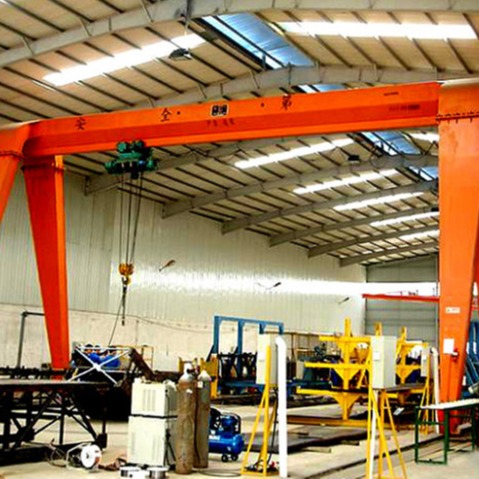

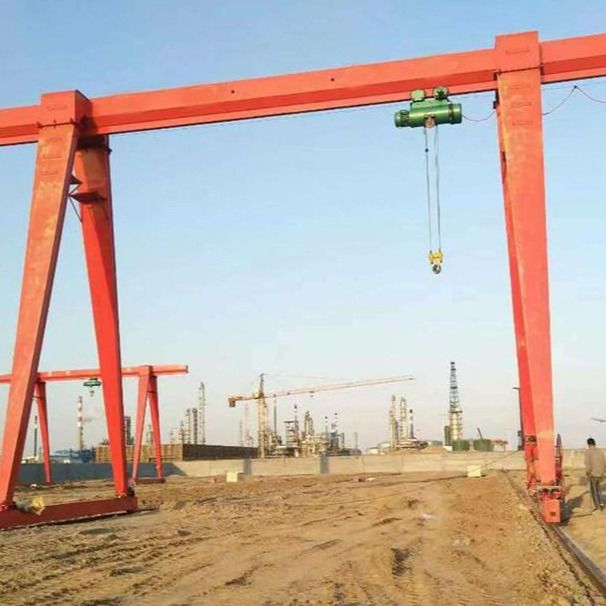

Product presentation of Single girder gantry crane


Single gantry cranes are a cost-effective alternative wherever the installation of bridgecranes is impractical due to a need for a raised runway structure. They are also an ideal supplement to bridge cranes at the workstation level. It can lower the investment on structure and space.
-High operational value
-Cranes to meet specific customer needs
-Single-girder gantry cranes with load capacities up to 32tons
-Indoor or outdoor operation
-Controlled by pendant traveling station or optional radio controls
-Modular design
We designed single girder Gantry cranes with different capacities and spans that will meet your requirements.

Technical parameters of Single girder gantry crane:


Lifting capacity t 16
Span m 12 16 20 24 30
Lifting height m 6~9 9
Travelling mechanism Travelling speed Ground m/min 20
Controling room 30 40
Motor Ground   YZR132M2-6/4 X2 YZR160m1-6/6.3 X2
Controling room   YZR160M2-6/8.5 X2
Reducer   ZSC400 ZSC(A)600
Wheel diameter mm Φ400 Φ500
Electric hoist Type   CD1 MD1
Lifting speed m/min 3.5 3.5/0.35
Travelling speed m/min 20
Motor Lifting   ZDS11.5/13
Travelling   ZDY121-4/0.8 X2
Working system A5
Steel track recommended P38 P43
Power source 3-Phase 380V 50Hz
The crane weight Ground t 16.2/18.2 18.6/20.7 23.3/25.5 25.9/28.1 35
Controling room t 17.1/19.5 19.5/22 24.2/26.8 26.8/29.4 33.7
Max. wheel load KN 143/150 152/159 165/174 169/176 180/190
Basic dimendions L1 mm 3000 4000 5000 6000
H1 2300
H2 1100 1200 1300 1400 1600
H3 9500/12600 9600/12600 9700/12700 9800/12800 9950/9700
B 5500/6000 6500/7500
B1 6500/7000 7500/8500
B2 7000/7500 8200/9200
B3 1600 1700



Rigid Box Type Mineral Area Single Beam Gantry Crane Span Up To 30M 0

Box Type Single Girder Gantry Crane Drawing



Detailed Configuration of single girder hoist gantry crane:


1- Lifting Mechanism:

-Monorail wire rope hoist or chain hoist or manual hoist as option:

-lifting speed: single or dual as per required

-Trolley Speed: Single or Dual or Step less as per required

-High performance with most economical price

2-Driven Bogie and Bottom Beam:

-Forged Flanged wheel

-Rigid welded box type beam

-Compact layout

3-Griders and Legs:

-Main girder and 4 legs are welded box type or truss girders as option.

-Material: carbon steel with high quality of Q235B or Q345B

-The main girder is connected by strength bolt.

-Weld joint tested by X ray or ultrasonic examination;

-Modula design

-Designed Deflection≤1/800 of span


-Cabin control

-Independent pendent control as option

-Wireless control as option

5-Electric Part:

-Conductor power supply

-All hoist and crane movements are independent and can be run simultaneously.

-Protection degree IP55

-The components are positioned in a maintenance friendly way, and the whole layout provides with good protection

-Festoon cables are suspended on cable saddles, fixed to cable trolleys, running in a galvanized C-track.


-Corrosion protection through rust removal by mechanical shot blasting SA 2.5

-First layer of coating epoxy 30 microns

-Second layer of coating epoxy 30 microns

-Third Layer of coating of polyurethane 40 microns

-Average thickness: about 100 microns

-Color: yellow or Orange as per requirements


Packing and shipping


Rigid Box Type Mineral Area Single Beam Gantry Crane Span Up To 30M 1
