BMH Model Semi Single Girder Gantry Crane 17 Ton Box Type Easy Installation

Minimum Order Quantity : 1 set Price : USD15000-50000/set
Packaging Details : Electrical, hoist and other parts packed by high quality plywood crate; Beams packed by rain proof plastic cloth Delivery Time : 40 days
Payment Terms : L/C, T/T, Western Union Supply Ability : 2 sets/per month
Place of Origin: CHINA Brand Name: Silence
Certification: ISO CE Model Number: BMH

Detail Information

Warranty: 12 Months Max. Lifting Height: 15m
Application: Workshop,Widely Power Source: User Requirments
Type: BMH Semi Single Girder Gantry Crane Crane Feature: Easy Operated,steel Box Type
High Light:

Semi 17 Ton Single Girder Gantry Crane

,

17 Ton Single Girder Gantry Crane

,

17 Ton Girder Gantry Crane

Product Description

BMH Model Semi Single Girder Gantry Crane 17 Ton Box Type Easy Installation

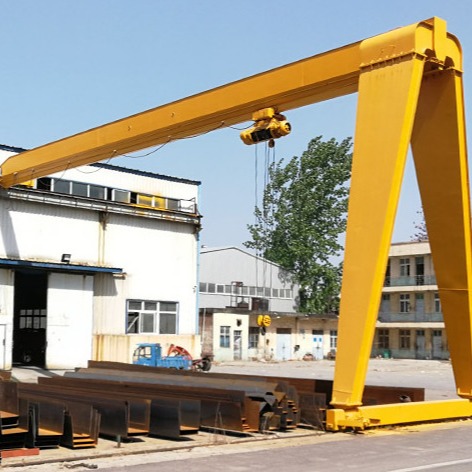

Product presentation of Semi Single girder gantry crane



The single girder semi gantry crane is a general purpose light crane used in workshop or outdoors. Semi Gantry Crane can be divided into Three types, single girder semi gantry crane, double girder truss type semi gantry crane, and double girder box-type semi gantry crane. This kind of crane is composed of gantry frame, main girder, legs (two sets), slide sill, lifting mechanism, travelling mechanism, and electric box. The leg height of this single girder semi-gantry crane can be different according to the engineering needs on the construction field.


Technical parameters of Semi Single girder gantry crane:



Capacity t Span m Lifting height m Lifting speed m/min Trolley speed m/min Crane speed m/min Working class Track
3 12 6~9 8, 8/0.8 20 20 A3-A5 P34 P38
16
20
24
5 12 6~9 8, 8/0.8 20 20 A3-A5 P24 P38
16
20
24
30 9
10 12 6~9 7, 7/0.7 20 20 A3-A5 P38 P43
16
20
24
30 9
16 12 6~9 3.5, 3.5/0.35 20 20 A3-A5 P38 P43
16
20
24
30 9




Specidications of Semi single girder gantry crane



1. Lifting capacity: 5-50tons



2. Lifting height: 3-30m or customized



3. Span: 3-35m



4. Lifting mechanism: hoist or trolley or winch



5. Working class: A3-A5



6. Control way: pendant control, remote control, cabin control



7. Working temperature: -20 ℃ to 40 ℃



Advantages of Semi single girder gantry crane:


1. Compact structure, good rigidity.


2. Favorable performance.


3. Smooth starting and stopping.


4. Safe and reliable traveling, strong ability of lateral load proof.


5. Low noise, no pollution.


6. Flexible installation and operation, convenient maintenance.


7. Electricity saves.


8. Excellent exchange ability for parts and components.


9. Less investment.



Semi single girder gantry crane main parts



Electric Hoist :


Model CD1,MD1 wire rope electric hoist is a small-sized lifting equipment, which can be mounted on single beam, bridge, gantry and arm cranes. With slight modification, It can also be used as a winch. It is widely used in factories,mines,harbours,warehouse.



Main Beam :


Main beam will have sandblast derusting and painted with zinc rich epoxy primer.


Main beam is cut by plasma numerical control cutting machine.


The butt weld of tension flange shall undergo ultrasonic or x-ray flaw detection as specified.



Outrigger :


Consist of rigid outrigger and flexible outrigger, all connection points are connected by high -tension bolt.


The ladder is used by operator to enter into cab or arriving at winch.


When the span is beyond 30m, there needs a flexible leg to reduce the lateralthrust of the trolley to the rail when the girder lifts materials.



Ground End Beam :


End beam will have sandblast derusting and painted with zinc rich epoxy primer.


The wheels of end beam are produced in special vacuum casting workshop which make wheels more elastic and outer surface hard-wearing and durable.



BMH Model Semi Single Girder Gantry Crane 17 Ton Box Type Easy Installation 0

Packing and shipping





BMH Model Semi Single Girder Gantry Crane 17 Ton Box Type Easy Installation 1
