Working Duty A5 Cabin Control Single Girder Gantry Crane

Minimum Order Quantity : 1 set Price : USD15000-50000/set
Packaging Details : Electrical, hoist and other parts packed by high quality plywood crate; Beams packed by rain proof plastic cloth Delivery Time : 40 days
Payment Terms : L/C, T/T, Western Union Supply Ability : 2 sets/per month
Place of Origin: CHINA Brand Name: Silence
Certification: ISO CE Model Number: MH

Detail Information

Lifting Height: 6~9m Span: 16~28m
Application: Widely Industrial Usage Lifting Mechanism: Hoist Trolley
Speed: Frequency Inverter Working Duty: A5
High Light:

A5 Single Girder Gantry Crane


Cabin Control Single Girder Gantry Crane


A5 electric gantry crane

Product Description

L Model Single Girder Gantry Crane Working Duty A5 Cabin Control Low Cost Maintenance


Product presentation of Single girder gantry crane


L type box frame single beam gantry crane is a box type single girder gantry crane, consists of four parts, for bridge frame, L(C) type supporting legs, electric trolley and crane traveling mechanism, and all electric equipment. The control method is cabin, remote control and pendent line. And generally for lifting steel ladles, tubes, or other long goods, the L shape structure is very convenient for electric trolley traveling and goods overturn.

Technical parameters of Single girder gantry crane


Lifting capacity t 5 10 20
Span m 16,20,30 16,20,30 18,26,35
Lifting height m 9 9 9
Travelling speed Ground m/min 20 20 20
Controlling Room m/min 20,30,40 20,30,40 30/40
Electric hoist Type   CD1 MD1
Lifting speed m/min 8 or 0.8/8 7 or 0.7/7 3.5 or 0.35/3.5
Travelling speed m/min 20 20(30) 20(30)
Working system   A3
Power source   3-phase A.C. 380V 50HZ


Why Are L-shaped Gantry Cranes Constructed in This Way?

Unlike A frame or U frame gantry crane that is built with two legs at each side, this type of gantry crane is designed with a L-shaped support leg at each side for the convenience of carrying long pieces of goods like steel tubes and plates. It is also ideal for tilting operations. The L-type single beam gantry crane is specifically engineered for light duty to moderate service that can be equipped with two hoists and hooks for better stability of loads as well as ensuring a secure lifting operation.

Quality promise of L-shaped single girder Gantry Cranes:

1.All products have production permit or recognition permit; no fake or renovated products;

2.Quality of all products reach class A or distinguished class;

3.Main data of the products satisfy related codes;

4.Strictly follow technological requirements in manufacturing;

5.Strictly test products with standard testing devices to prevent unqualified products from leaving the plant;

6.Set up complete files to keep order contract, manufacturing record, test record, material receiving certificate and factory-leaving record;

7.All products to be delivered are no-damage in appearance and painting and are supplied with mating parts to satisfy clients.

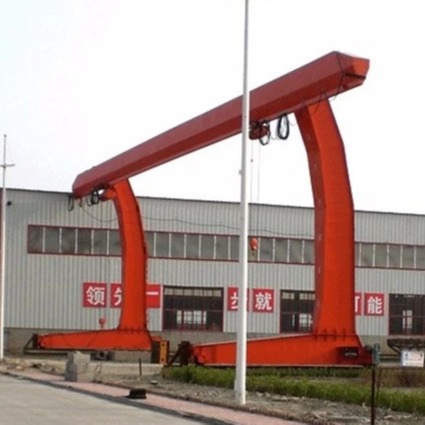

Working Duty A5 Cabin Control Single Girder Gantry Crane 0

Working Duty A5 Cabin Control Single Girder Gantry Crane 1


Working Duty A5 Cabin Control Single Girder Gantry Crane 2Working Duty A5 Cabin Control Single Girder Gantry Crane 3



Packing and shipping



Working Duty A5 Cabin Control Single Girder Gantry Crane 4


After-Sales Service

Our after-sales service provide:
1. 14 months warranty when products leave the factory, or 12 months warranty after installation
and commissioning in addition to the human damage factors.
2. 2 years spare-parts provided for better maintenance.
3.Professional technical staffs provide installation, commissioning and training services.
4.Delivery with English user manual, parts manual, product certification and other relevant certificates.
5.Technical advisory for any time and Engineers available to service machinery overseas.
