electric trolley Steel Box 35T Gantry Overhead Crane

Minimum Order Quantity : 1 set Price : USD15000-50000/set
Packaging Details : Electrical, hoist and other parts packed by high quality plywood crate; Beams packed by rain proof plastic cloth Delivery Time : 40 days
Payment Terms : L/C, T/T, Western Union Supply Ability : 2 sets/per month
Place of Origin: CHINA Brand Name: Silence
Certification: ISO CE Model Number: MH

Detail Information

Warranty: 1 Year Max. Lifting Height: 32m
Capacity: 35Ton Feature: L Type Gantry Crane
Application: Outdoor Color: According To Your Demand,Yellow
High Light:

35T Gantry Overhead Crane


Electric Trolley Gantry Overhead Crane


35T rail mounted quay crane

Product Description

L Type Single Girder Gantry Crane Steel Box Long Service Life 35 Ton Custom Span


Product presentation of Single girder gantry crane


L type single girder gantry crane with electric trolley is a medium and light gantry crane with an electric trolley, which has the obvious features of "L" legs, making it easier for the crane to handle goods at a long distance.It is ideal for outdoor applications where lifting facilities are provided without the cost of a building or any supporting steelwork.



L type single girder electric trolley gantry crane is mainly composed of bridge, L-leg, crane travelling system, electric trolley, electric system and so on.


The frame adopts box-type welding mechanism, the L type single leg is welding structure in order to increases the work space, and it is convenient for the transportation, installment and maintains. Crane travelling mechanism adopts separate drive.

Technical parameters of Single girder gantry crane


Technical Parameter of L Single Girder Gantry Crane
Capacity t 5 10 16 20 32 50
Span m 18~35 18~35 18~35 18~35 18~35 18~35
Lifting height m 6~18 6~18 6~18 6~18 6~18 6~18
Lifting speed m/min 11.2 9.6 9.6 7.2 7.6 5.9
Trolley speed m/min 36.6 39.7 39.5 39.3 38.6 38.5
Crane speed m/min 46.2 40.1 40.1 40.1 48.2 39.7
Work duty   A5 A5 A5 A5 A5 A5
Track type   P43 P43 P43 P43 QU80 QU80


Application Scope of Single girder gantry crane


L type single girder gantry crane with trolley is the best choice for outdoor material processing. It is suitable for the application of unsupported building or steel structure engineering or supporting building.


The L type single girder gantry crane with trolley is widely used in cement factory, construction industry, electronics industry, warehouse, railway, food, paper, engineering and other industries. However, it is strictly prohibited to use in high temperature, flammable, explosive and other dangerous environments. Corrosion and other environments, etc.


Warning: Overloading is strictly forbidden.

Features of L Type Single girder gantry crane

■ Novel structure, special design


■ Advanced technology, attractive appearance


■ High working efficiency and safety


■ High quality and cost effective price


■ High adaptability and wide application


■ L shape leg design saves more space for cargoes


■ Convenient for handling cargo with long length


■ Flexible legs can be transferred to another site



Safety Protection of L Single Beam Gantry Crane

■ Rain cover for outside hoist, driving units, electrical cubicle.


■ Warning indicator: flashing lights and warning sound.


■ Wireless infra-detector for anti-collusion.


■ Over load protection device, over current protection device, over pressure protection device, rail clamp, Weight overload protection device, Top quality long time bearing polyurethane materials buffer, Crane traveling limit switch, Voltage lower protection function, Emergency stop system, current overload protection system and so on.

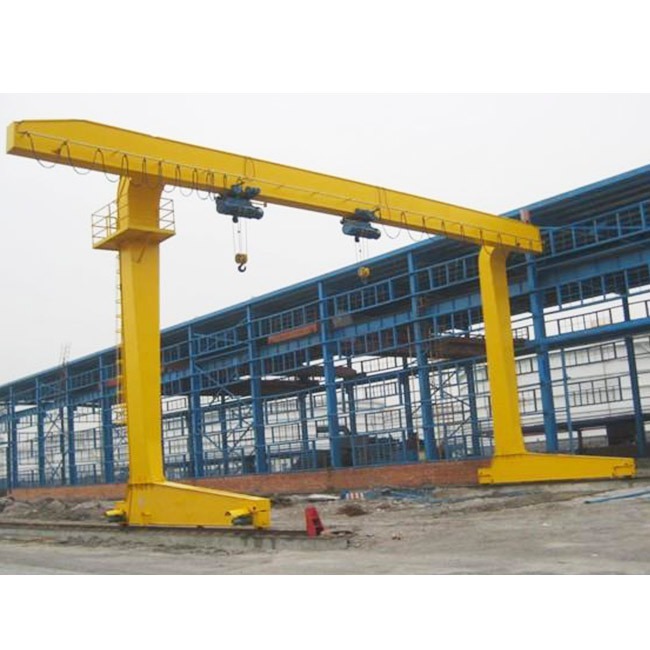

electric trolley Steel Box 35T Gantry Overhead Crane 0

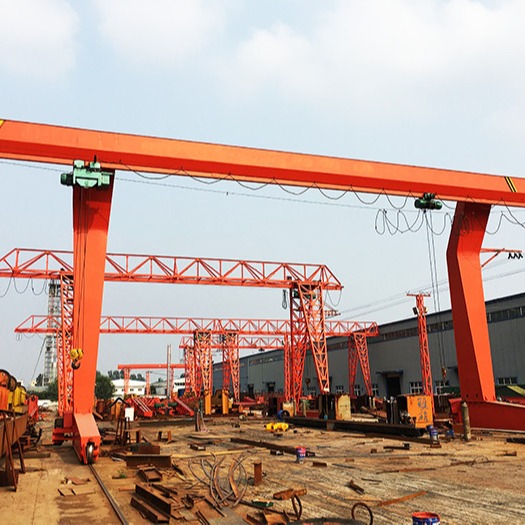

electric trolley Steel Box 35T Gantry Overhead Crane 1


electric trolley Steel Box 35T Gantry Overhead Crane 2electric trolley Steel Box 35T Gantry Overhead Crane 3



Packing and shipping


electric trolley Steel Box 35T Gantry Overhead Crane 4
