CE 15T Single Girder Gantry Crane With Cantilever Beam

Minimum Order Quantity : 1 set Price : USD15000-50000/set
Packaging Details : Electrical, hoist and other parts packed by high quality plywood crate; Beams packed by rain proof plastic cloth Delivery Time : 40 days
Payment Terms : L/C, T/T, Western Union Supply Ability : 2 sets/per month
Place of Origin: CHINA Brand Name: Silence
Certification: ISO CE Model Number: MH

Detail Information

Working Duty: A4 Warranty: 12 Months
Usage: Open Ground And Warehouse Crane Feature: CE Approved Electrical
Span: 12~30m Rated Loading Capacity: 3-25 Ton
High Light:

15T Single Girder Gantry Crane

,

Cantilever Beam Single Girder Gantry Crane

,

15T automated rail mounted gantry crane

Product Description

ISO CE Certificated 15 Ton Single Girder Gantry Crane Warranty 1 Year With Cantilever Beam



Product presentation of Single girder gantry crane



The electric single-beam gantry crane model is MH type, supporting CD type single-speed electric hoist, MD type double-speed electric hoist, HC square electric hoist, etc., is a small and medium-sized gantry crane running on rails, its applicable lifting weight is 1T-20 tons, applicable span is 12m-30 meters, the working environment is -20℃-+40℃.There are three types of ground control, cab control and remote control.


Single beam gantry crane is mainly used for loading, unloading, or grabbing materials in open places and warehouses. It is forbidden to be used in inflammable and explosive environments. If it is needed in special environments, it can be customized with non-standard design.




Technical parameters of Single girder gantry crane



Capacity T 3 5 10 16
Span m 12,16,20,24,30
Operational method   Pendent Line With Press Button /Cabin/ Remote
Speed Lifting   8 ,8/0.8 8,8/0.8 7,7/0.7 3.5
Cross travelling m/min 20 20 20 20
Long travelling Ground   20 20 20 20
Cabin   20, 30,45 20, 30,40 30,40 30,40
Motor Lifting Type /kw ZD41-4/4.5 ZD141-4/7.5 ZDS10.8/4.5 ZD151-4/13 ZDS11.5/4.5 ZD151-4/13
ZDS1-4/0.4/4.5
Cross travelling ZDY12-4/0.4 ZDY121-4/0.8 ZDY21-4/0.8×2 ZDY121-4/0.8×2
Electric hoist Model CD1/MD1 CD1/MD1 CD1/MD1 CD1
Lifting height m 6,9,12,18,24,30
Working duty   A3
Power supply   380V 60HZ 3phase AC (According to your demand )






Technical requirements of single girder gantry crane:


1. There should be enough space inside the body of a good girder lifting machine to facilitate the assembly and installation of prefabricated beams and working objects.


2. For the convenience of transportation, the company's girder lifting machine is convenient for disassembly, and does not affect the stiffness, strength and stability of the main steel structure of the equipment.


3. The girder lifting machine requires that its two major components, namely the lifting structure and the speed of the running structure, be controlled at a relatively low gear. In this way, the alignment precision of the precast beam can be improved and the impact on the body and parts of the girder lifting machine can be buffered.


4. When two girder lifting machines are required to work together, it is necessary to ensure that the two girders can run and work synchronously.In order to extend the service life of hoist gantry crane.


Operational Considerations of single girder gantry crane:


1. Trained qualified operators shall operate according to the training contents and operation steps.


2. All the staff operating the girder lifting machine must be trained and qualified, otherwise they cannot be on duty to operate the machine.


3. To do a good job of the girder lifting machine electrical devices and other major, easy to wear out parts of regular post-maintenance and maintenance.


4. No matter any problem is found during operation, please stop the machine immediately and check it until the problem is eliminated before continuing operation.

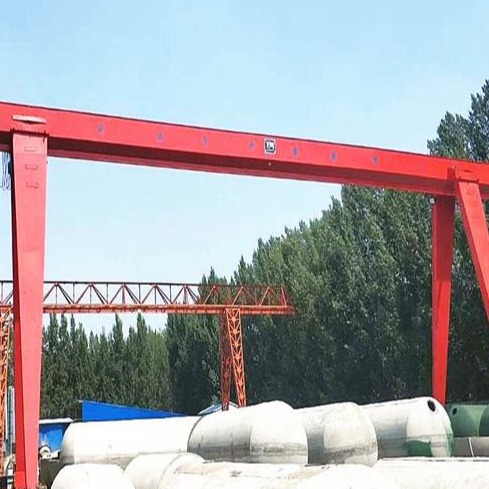

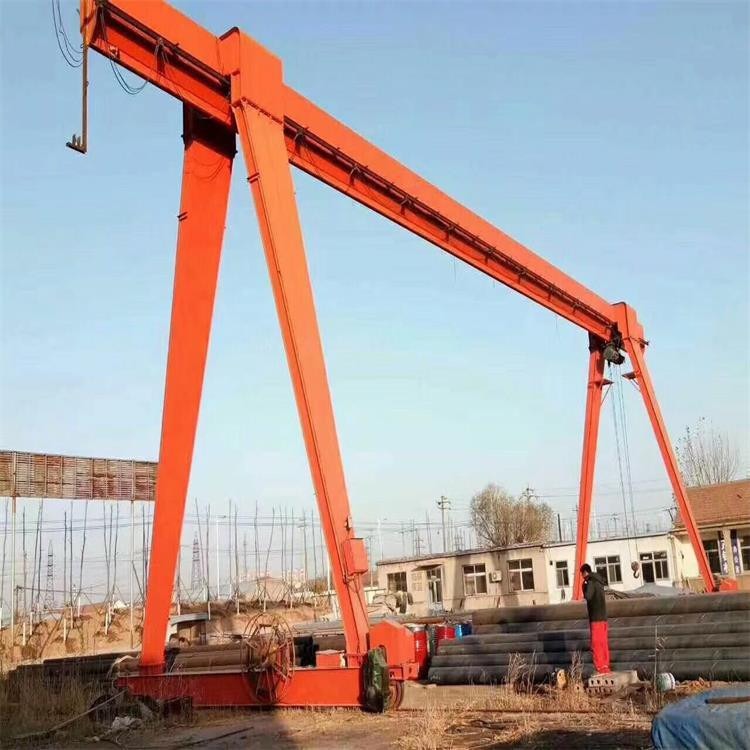

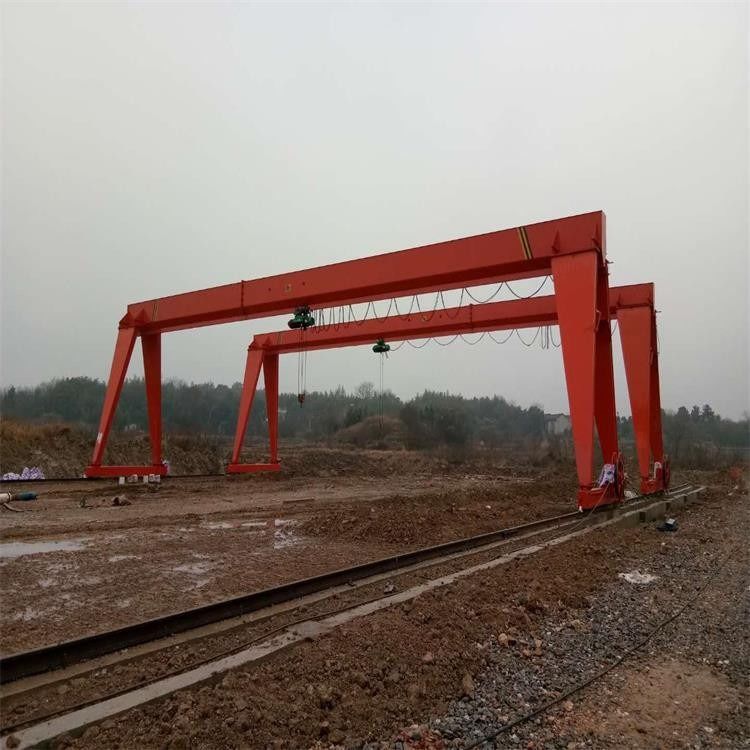

CE 15T Single Girder Gantry Crane With Cantilever Beam 0CE 15T Single Girder Gantry Crane With Cantilever Beam 1CE 15T Single Girder Gantry Crane With Cantilever Beam 2





Packing and shipping



1. Electric parts are packed by high quality plywood crate, to reduce distortion in conveying.
2. Main beams, end beams and trolly/winch are packed by plastic woven cloth. It can reduce abrasion during the transportation.
3. If the size are suitable for container ship, usually by container.
4. Big size, usually by bulk ship or by container after truncation.
5. Transport ways are based on reducing cost & keep safety.

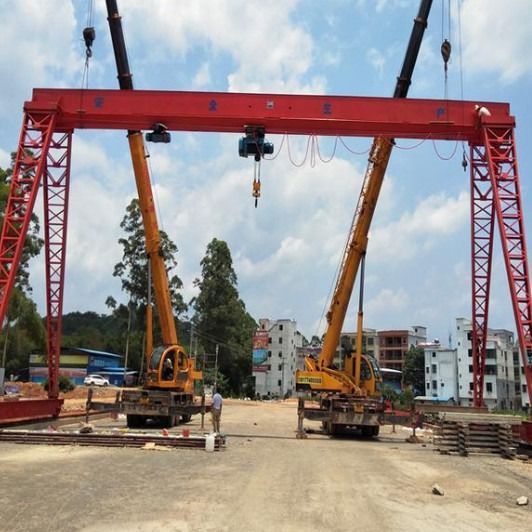

CE 15T Single Girder Gantry Crane With Cantilever Beam 3
