Double Speed 15T Span 15m Single Girder Gantry Crane

Minimum Order Quantity : 1 set Price : USD15000-50000/set
Packaging Details : Electrical, hoist and other parts packed by high quality plywood crate; Beams packed by rain proof plastic cloth Delivery Time : 40 days
Payment Terms : L/C, T/T, Western Union Supply Ability : 2 sets/per month
Place of Origin: CHINA Brand Name: Silence
Certification: ISO CE Model Number: MH

Detail Information

Lifting Speed: 7/0.7m/min Crane Feature: High Reliability,steel Box Type
Lifting Mechanism: Electric Hoist Power Source: 3 Phase 380V 50hz,User Requirments
Type: MH Model Single Girder Gantry Crane Rated Loading Capacity: 5-32t
High Light:

Span 15m Single Girder Gantry Crane

,

15T Single Girder Gantry Crane

,

Span 15m moveable gantry crane

Product Description

Double Speed Single Girder Gantry Crane 15T Can Be Customized Span 15m



Product presentation of Single girder gantry crane



Single beam gantry crane is also called electric single beam gantry crane, single main beam gantry crane or electric hoist gantry crane, single beam gantry crane style is MH.MH type single beam gantry crane is a small and medium-sized gantry crane with rail operation, which is used together with CD, MD and other models of electric hoist.It is mainly suitable for lifting weight of 3T--32 tons, span of 12M--30 meters, working environment of -20°C--+40°C, working system of 25%, wind pressure of no more than 125Pa.




Technical parameters of Single girder gantry crane



Loading Capacity 0.5~30t
Lifting Height 3~30m or customized
Lifting speed Single speed: 3~8 m/min or customized
Variable speed: 1/10 m/min or customized
Span 3~35m
Lifting mechanism Wire rope hoist or electric chain hoist
Work duty A3~A5
Power supply AC-3Phase-220//230380/400/415/440V-50/60Hz
Control method Ground handle control(Push button),wireless remote control,cabinet control
Application area Factory,workshop,warehouse,power station,logistic,etc.
Color Customized
Working temperature -20~40°
Protection class IP54; IP55; IP65



Safety protection device for single-beam gantry crane:


1. Overload limiter.
2. High quality, long time use, impact resistant polyurethane buffer.
3. Crane travel limit switch.
4. Loss of voltage protection and misphase protection.
5. Emergency stop system, brake system.
6. Lifting height limiter



Technical features of single girder gantry crane:


Three-in-one transmission system, electric non-contact module speed control, and can realize the micro speed and double speed close frequency conversion function, so that the operation, lifting, electric is particularly stable.Equipped with overload alarm, slanting pull diagonal crane, two protection against hook hitting the top, missing item overcurrent protection, etc., the operating platform (handle) adopts 12V safety voltage to realize the multi-function protection of hoist gantry crane.Voltage 380V+5~-10% within the electronic control can be used for a long time up to 2 million times.

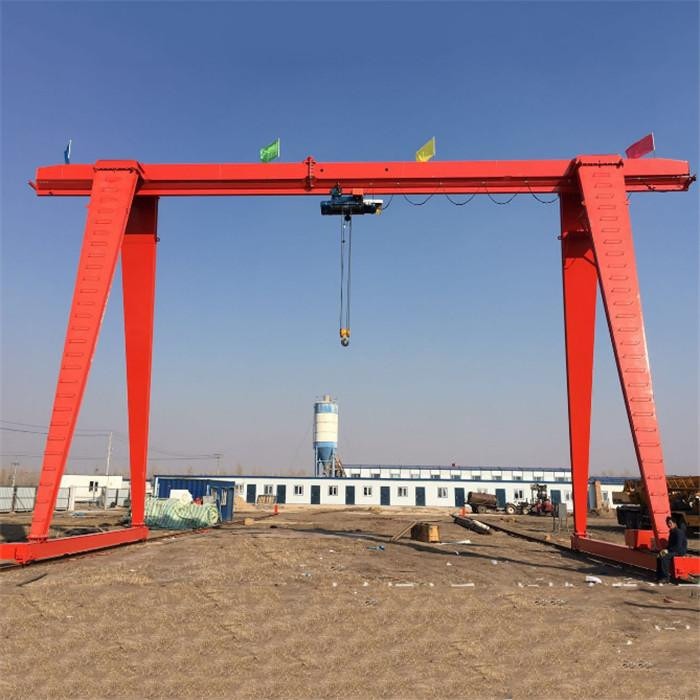

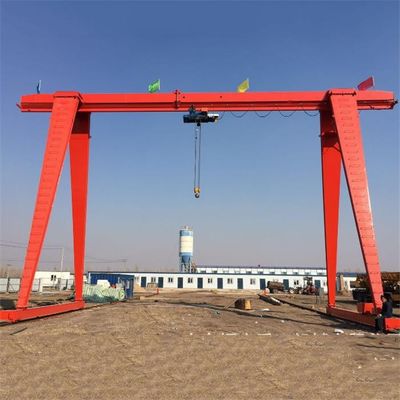

Double Speed 15T Span 15m Single Girder Gantry Crane 0



Company Introduction

Henan Silence Industry Co., Ltd focuses on lifting resolutions for customers. We provide design, production, and service of different lifting equipment, which covers electric wire rope hoist, chain hoist, jib crane, bridge crane, gantry crane, etc.

Under principle Customer First, Modern Crane people always provide customers with first-class products and excellent service. SILENCE CRANE people follow a strict QUALITY CONTROL system which ensures the perfection of each lifting equipment.

Our products have completely passed ISO9001, CE, GS and other quality system certificates. Thanks to our high-quality products and outstanding customer service.

SILENCE CRANE has earned a reputation from our customers and gained a global sales network reaching Brazil, India, Philippine, Ukraine, Argentina, Spanish, Malaysia and the other 30 countries.

With the commitment of customer satisfaction, we are expecting to widen and deepen the cooperation and communication with all friends all over the world.





Packing and shipping

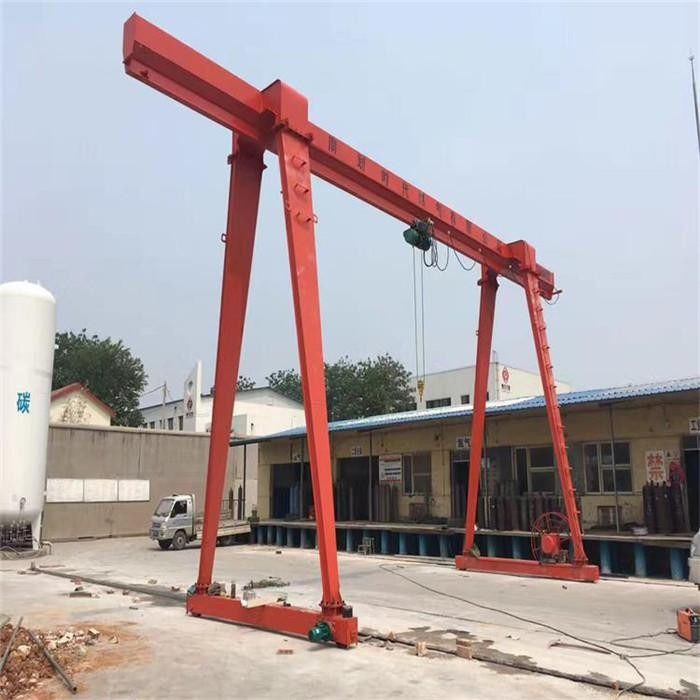

Double Speed 15T Span 15m Single Girder Gantry Crane 1
