A Frame Small Portable Gantry Crane 3.2 Ton Rail Operation
Contact Person : Iris
Phone Number : +86 19939938244
WhatsApp : +8619939938244
Minimum Order Quantity : | 1 set | Price : | USD1000-5000/set |
---|---|---|---|
Packaging Details : | Electrical, hoist and other parts packed by high quality plywood crate; Beams packed by rain proof plastic cloth | Delivery Time : | 10 days |
Payment Terms : | T/T, L/C, Western Union | Supply Ability : | 10 sets |
Place of Origin: | China | Brand Name: | SILENCE |
---|---|---|---|
Certification: | ISO CE | Model Number: | PT |
Detail Information |
|||
Lifting Mechanism: | Wire Rope Hoist | Usage: | Lift Material |
---|---|---|---|
Material: | Q235/Q345 | Application: | Lifting |
Product Name: | Portable Mobile Gantry Crane | Span: | 9m |
High Light: | 2T Simple Gantry Crane,Single Beam Simple Gantry Crane,2T Single Beam Gantry Crane |
Product Description

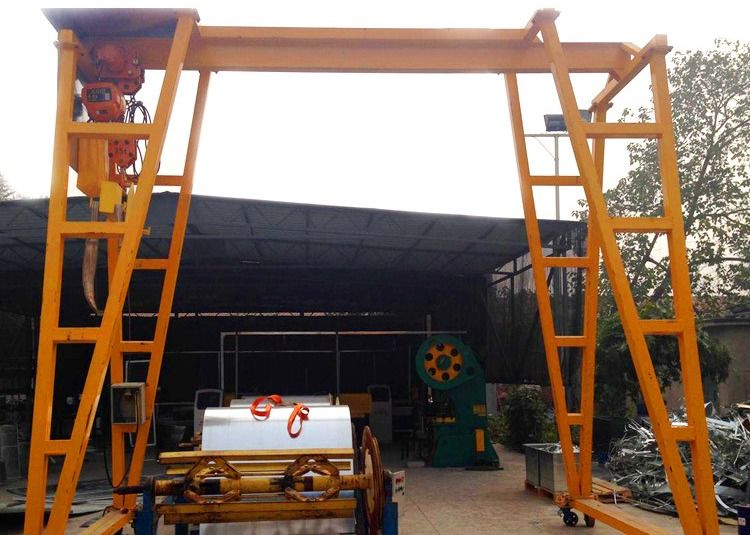

2T PT Model Outdoor Used Light Duty Mobile Small Simple Gantry Crane Single Beam
Product description of Portable Gantry Crane
Typically, portable gantry cranes are used to lift and hold something in place while it's being worked on, fabricated, or assembled.
The load isn't necessarily being moved through the facility, but the gantry itself can be moved around to work on different parts or equipment.
Portable gantry systems can also offer more flexibility than a jib crane or workstation crane.
A jib crane typically has to be installed onto a poured concrete foundation and once it's installed-it's pretty much permanent.
A smaller portable gantry crane can perform the same type of work as a jib crane, but can be moved about your facility as your business grows and you begin optimizing and laying out warehouse space.
Technical parameters of Portable Gantry Crane
Capacity(t) | Total height(mm) | Rated lift height(mm) | Outside across(mm) | Inner across(mm) | H-value(mm) |
0.5 | 2000-3000 | 2610 | 2000 | 1840 | 250 |
0.5 | 2000-3000 | 2610 | 3000 | 2840 | 250 |
0.5 | 2000-3000 | 2610 | 4000 | 3840 | 250 |
0.5 | 2600-4000 | 3610 | 3000 | 2840 | 250 |
0.5 | 2600-4000 | 3610 | 4000 | 3840 | 250 |
1 | 2000-3000 | 2581 | 2000 | 1840 | 259 |
1 | 2000-3000 | 2581 | 3000 | 2840 | 259 |
1 | 2000-3000 | 2581 | 3000 | 2840 | 259 |
1 | 2600-4000 | 3581 | 4000 | 3840 | 259 |
1 | 2600-4000 | 3581 | 4000 | 3840 | 259 |
Advantages of Portable Gantry Crane
Lightweight robust construction
Low effort to lift maximum load
Fully forged hooks
CE and ISO high grade alloy load chain
Durable baked enamel paint protection
Overload protection device available upon request
Excellent after-sale serve, market agent support and protection
Excellent quality, top in China, always the leader
Sample order and trail order are acceptable
We are the manufactuer
Product Features of of Portable Gantry Crane:
1. Light dead weight, compact structure, flexible and small wheel load.
2. Move under load, start and stop smoothly.
3. Rapid assembly and disassembly, removable design makes transportation and installation easier.
4. Portable design allows for relocation for use in more than one facility or work area.
5. Brake bearing universal wheel can move on the ground, reduce the human power, production costs, and improve work efficiency.
6. A-frame 3 Ton 5 Ton Portable Mobile Gantry Crane can work with manual hoist or electric hoist
7. Easy operation Control by pendent controller with push buttons or wireless controller.
Working conditions
Working temperature: -25°C to 40°C
Power source: 3ph, 380V, 50HZ or other under customer requirement.
Flammable, explosive and corrosive gas is forbidden in the work environment.
The crane is forbidden to lift fuse and blend deleterious article and flammable explosive article
