Wireless Control Mini 4 Wheels Workshop Gantry Crane A Frame

Minimum Order Quantity : 1 set Price : USD1000-5000/set
Packaging Details : Electrical, hoist and other parts packed by high quality plywood crate; Beams packed by rain proof plastic cloth Delivery Time : 10 days
Payment Terms : T/T, L/C, Western Union Supply Ability : 10 sets
Place of Origin: China Brand Name: SILENCE
Certification: ISO CE Model Number: PT

Detail Information

Lifting Mechanism: Chain Hoist Control Method: Hand Control Or Electric Control
Usage: Workshop Workstation Construction Application Delivery: By Sea
Type: Adjusting Height Power Source: Manual And Electric
High Light:

4 Wheels Workshop Gantry Crane


Wireless Workshop Gantry Crane


4 Wheels bridge gantry crane

Product Description

4 Wheels Mini Workshop Gantry Crane a Frame Mobile Simple Gantry Crane Wireless Control
Product description of Portable Gantry Crane
1.Small Portable Gantry Crane mobile gantry crane with adjustable height can be operated in alternating workplaces where loads have to be moved every now and then.
If your working height is not enough, you can buy this adjustable height small portable gantry crane, it can reach high lifting height outdoors, and be stored in small limited height space.
With added positioning hole and under help of hand winch, it solves problem of limited working space. If you are interested in this gantry crane, contact me.
2.When it comes to sudden machine repair, tool change, or unscheduled assembly, you are able to move and transport loads up to 5000kg effortlessly.
Technical parameters of Portable Gantry Crane

Type Rated load(t) Adjustable Height(m) Span(m) Beam Height(mm) Motion Type Height Range Instruction
PT2-2-0.5 0.5 2.6-3.8 3-9 140 Hand push type universal castor with brake device According to the actual use requirements to increase the lifting height and height of the body
PT2-2-1 1 2.6-3.8 3-9 160
PT2-2-2 2 2.6-3.8 3-9 160
PT2-2-3 3 2.6-3.8 3-9 200
PT2-2-5 5 2.6-3.8 3-9 250

Advantages of Portable Gantry Crane
1.Quick and easy relocation using its wheels
2.Point-to-point load transport
3.Large effective lifting height
4.Height adjustment by means of rack-and-pinion jack possible
5.Support height and crane rail length can be adjusted to conditions on the spot
6.Easy installation
7.High quality coating
8. Height adjustable.

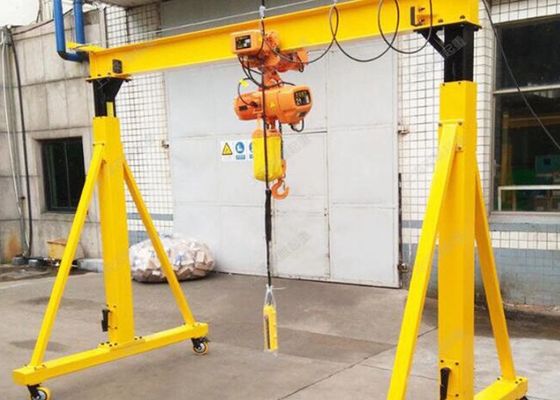

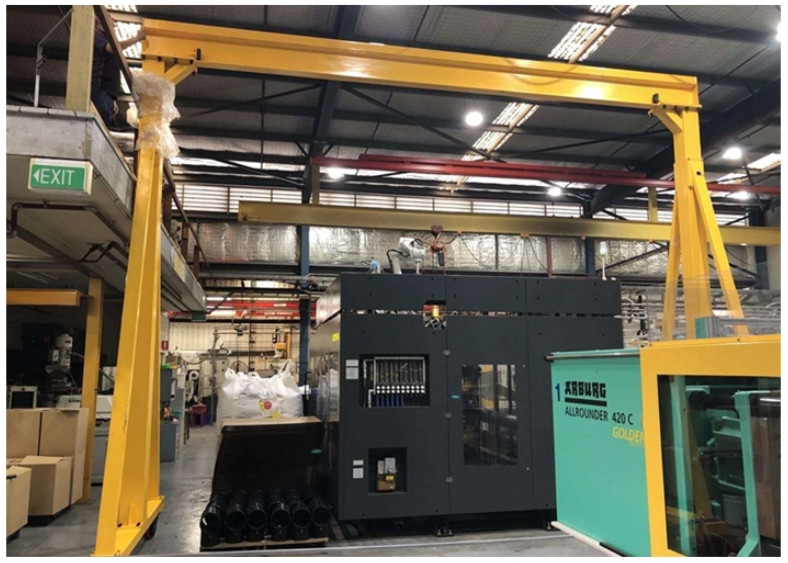

 Wireless Control Mini 4 Wheels Workshop Gantry Crane A Frame 0Wireless Control Mini 4 Wheels Workshop Gantry Crane A Frame 1
Product Details of of Portable Gantry Crane:
With wear resistance, cold resistance, impact resistance, aging resistance, water resistance, service life of 2-3 years.
Paint use epoxy zinc-rich primer and chlorinated rubber topcoat for bright surface and corrosion resistance
The wheels are wrapped in PU. The operation is light and the noise is low
Usually hoisted by hand-pull hoist, electric hoist and chain hoist can also be used
Each part is bolted for easy transportation and installation
Packing and shipping
Wireless Control Mini 4 Wheels Workshop Gantry Crane A Frame 2
 Using the step of Portable Gantry Crane:
1. After determining the construction site, it is necessary to investigate the construction site, determine the placement location of the gantry crane, and clear the surrounding useless debris to leave better space for the operation;
2, tonnage matching, lifting operation is strictly prohibited overload, so when choosing the gantry crane, it is necessary to select the gantry crane equipment suitable tonnage according to the construction of the lifting weight;
3. The crane hoist used in combination shall be installed firmly, and all functional tests shall be conducted before the operation;
4. When lifting heavy objects, it is necessary to fix the gantry crane first to ensure that there will be no sliding during lifting to ensure the lifting operation goes smoothly;
5. The operator must be familiar with the principle of the equipment and be able to control the equipment reasonably after the use training;
6. Heavy objects should be tied securely and lifted vertically, which are considered for safety in many ways.
