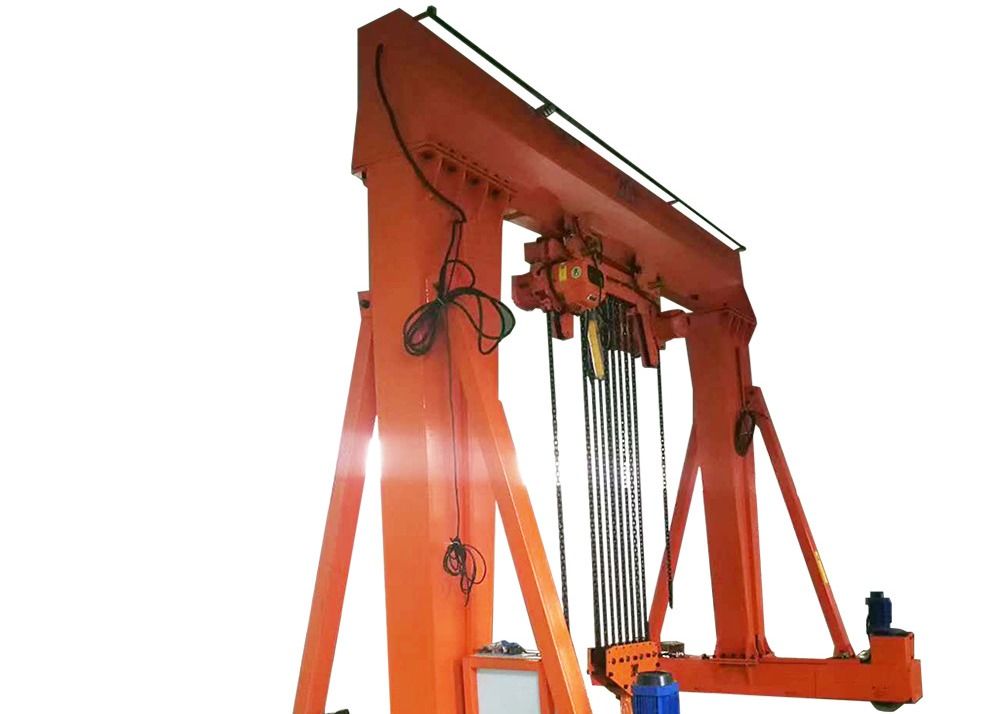

Manual Driven Glassworks Handling 0.5T Portable Gantry Crane

Minimum Order Quantity : 1 set Price : USD1000-5000/set
Packaging Details : Electrical, hoist and other parts packed by high quality plywood crate; Beams packed by rain proof plastic cloth Delivery Time : 10 days
Payment Terms : T/T, L/C, Western Union Supply Ability : 10 sets
Place of Origin: China Brand Name: SILENCE
Certification: ISO CE Model Number: PT

Detail Information

Capacity: 0.5 Ton Texture Of Material: Thickened Steel
Keyword: Gantry Crane Castor Wheel: Universal Belt Brake
Application: Mining, Industry And Other Industries Warranty: 2 Years
High Light:

0.5T Portable Gantry Crane


Glassworks Portable Gantry Crane


0.5T manual gantry crane

Product Description

0.5 ton Mini Size Manual Driven A Frame Gantry Crane Used For Glassworks Handling
Product description of Portable Gantry Crane
Can rise and fall gantry crane in some plant height is higher, and the factory gate is shorter place, we directly choose a higher height gantry crane is not easy to push it to go, in this case if you choose the gantry crane can rise and fall is more convenient.

When using this type of gantry crane, we can first reduce it to the lowest position, so that we can smoothly push it into the factory.


After arriving at the workplace, we can adjust the height of gantry crane according to the actual demand.


When adjusting the height, we should ensure that both sides are the same height, so as to smoothly use the work.

The use of the elevator gantry crane not only has the above advantages, when we do not use it to work, but also can be reduced to the lowest height, so that the product storage will be more space saving.

Technical parameters of Portable Gantry Crane

Loading capacity 0.25 ~ 10t
Lifting height 3 ~ 10 m or customized
Lifting speed Single speed: 3~ 8 m/min; or customized
Variable frequency speed: 1 ~ 20 m/min; or customized
Span 3~10 m
Lifting mechanism Hoist trolley
Working class A2 ~ A3
Working temperature -20 ~ 40 ℃
Power supply AC-3Phase-220//230380/400/415/440V-50/60Hz
Control voltage DC-24 / 36V
Motor protection class IP54 IP55 IP65
Control way Ground handle control(Push button),wireless remote control
Safety device Buffer, current overload protection,overload device,power failure protection
Application area Factory,workshop,warehouse,power station,logstic,etc.
Painting color Yellow,Red or Customzied

Installation steps of Portable Gantry Crane
Manual Driven Glassworks Handling 0.5T Portable Gantry Crane 0Manual Driven Glassworks Handling 0.5T Portable Gantry Crane 1
Product feature of of Portable Gantry Crane:

1.No permanent installation required, no need to pave the expensive rail, making Gantry Cranes ideal if you rent or lease your facility.

2. Quick and easy assembly.

3. Portable design allows for relocation for use in more than one facility or work area.

4. Gantry construction adopts standard welding way. All nuts, bolts, and pins are plated for corrosion resistance.

5. All Gantry Cranes are painted safety standard paint coating. Pendent push button control up to IP44

6.Simple Gantry Crane do the job efficiently and economically.

Packing and shipping
Manual Driven Glassworks Handling 0.5T Portable Gantry Crane 2
Using the step of Portable Gantry Crane:


1. After determining the construction site, it is necessary to investigate the construction site, determine the placement location of the gantry crane, and clear the surrounding useless debris to leave better space for the operation;

2, tonnage matching, lifting operation is strictly prohibited overload, so when choosing the gantry crane, it is necessary to select the gantry crane equipment suitable tonnage according to the construction of the lifting weight;

3. The crane hoist used in combination shall be installed firmly, and all functional tests shall be conducted before the operation;

4. When lifting heavy objects, it is necessary to fix the gantry crane first to ensure that there will be no sliding during lifting to ensure the lifting operation goes smoothly;

5. The operator must be familiar with the principle of the equipment and be able to control the equipment reasonably after the use training;

6. Heavy objects should be tied securely and lifted vertically, which are considered for safety in many ways.
