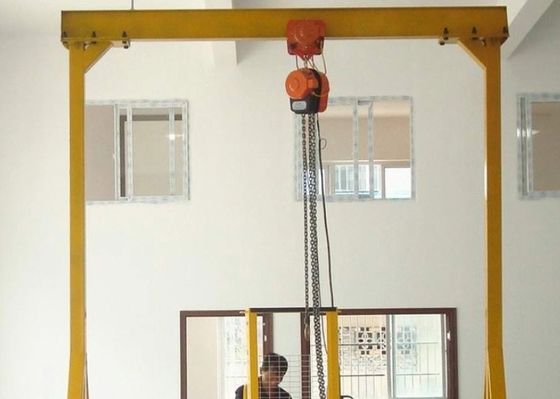

4T Span 5m Portable Gantry Crane For Lifitng Steel Coil

Minimum Order Quantity : 1 set Price : USD1000-5000/set
Packaging Details : Electrical, hoist and other parts packed by high quality plywood crate; Beams packed by rain proof plastic cloth Delivery Time : 10 days
Payment Terms : T/T, L/C, Western Union Supply Ability : 10 sets
Place of Origin: China Brand Name: SILENCE
Certification: ISO CE Model Number: PT

Detail Information

Max. Lifting Height: 5m Rated Lifting Moment: Load Capacity
Warranty: 1 Year Application: Factory,workshop
Product Name: Outdoor Mobile Gantry Crane 1ton 2ton 3ton 5ton Control Method: Hand
High Light:

Span 5m Portable Gantry Crane


4T Portable Gantry Crane


Span 5m hydraulic gantry crane

Product Description

4T Rubber Tyre Span 3-5m Portable Gantry Crane Used For Lifitng Steel Coil
Product description of Portable Gantry Crane
Simple gantry crane, also known as: light gantry crane, small gantry crane.
It has a weight of up to 5000 kg, is a mobile light gantry crane.
Where the use of hanging cranes can not be or not economical places can be easily used.
Light gantry cranes can be simply split into several easy-to-transport parts and can be quickly assembled in another place of use, a feature that is good for many occasions.
I-beam steel door crane from the lifting capacity of up to 5000 kg.
Simple gantry cranes are suitable for use in warehouses, logistics, workshops, and empty, no power supply. It is easy to use where the crane can not be used or not.
At the same time, we also carry out a variety of national standard production and non-standard design, to provide you with the best solution.
Simple gantry cranes are simple door-type railless cranes, light and small lifting equipment.
And hand pull (electric) gourd supporting for lifting and landing, lifting, handling heavy objects.
Different from the other gantry crane is characterized by the use of caster it can be in the ordinary concrete on the arbitrary movement, widely used in factories and mines, workshops, fields, warehouses, small equipment installation, cargo and workpiece handling;
and terminals, construction is low and not Erection of traffic and other places; can also be used to load and unload cargo in different locations, which can get the desired results.
This kind of lifting equipment has the characteristics of simple structure, convenient operation, large working space, wide application range, low investment and fast launch.
Technical parameters of Portable Gantry Crane

Loading capacity 0.25 ~ 10t
Lifting height 3 ~ 10 m or customized
Lifting speed Single speed: 3~ 8 m/min; or customized
Variable frequency speed: 1 ~ 20 m/min; or customized
Span 3~10 m
Lifting mechanism Hoist trolley
Working class A2 ~ A3
Working temperature -20 ~ 40 ℃
Power supply AC-3Phase-220//230380/400/415/440V-50/60Hz
Control voltage DC-24 / 36V
Motor protection class IP54 IP55 IP65
Control way Ground handle control(Push button),wireless remote control
Safety device Buffer, current overload protection,overload device,power failure protection
Application area Factory,workshop,warehouse,power station,logstic,etc.
Painting color Yellow,Red or Customzied

4T Span 5m Portable Gantry Crane For Lifitng Steel Coil 0
Applications of Portable Gantry Crane
4T Span 5m Portable Gantry Crane For Lifitng Steel Coil 1
Safety feature of of Portable Gantry Crane:
Crane traveling limit switch
Weight overload protection device
Lifting height limit device
Voltage lower protection function
Phase sequence protection function
Emergency stop function
Rain cover for outside hoist, driving units, electrical cubicle.
Warning indicator: flashing lights and warning sound.
Wireless infra-detector for anti-collusion
Packing and shipping
4T Span 5m Portable Gantry Crane For Lifitng Steel Coil 2
FOQ of Portable Gantry Crane
Q. What's the information should I provide when inquiry? More details or drawings, better.
A: Lift capacity B: span C: lift height D: power source other specials
you give us will be more appreciated.
Q. How many operating methods for my selection?
Standard operating methods:
A: pendent controller with push buttons .B: remote control with push buttons C: cabin(space capsule seat) control with joystick. Choose any type as you like.
Q. Can this type of work in a hazardous environment?
A: Sure! We can customize for you, acid proof or explosion-proof,no problem with that.
Q. Can you provide the serious lifting tools?
A: Sure, we can provide any lift tools such as lift sling belt, lift clamp, grab, magnet or other specials as your requirement!
Q. Safety device
A: Overload limiter, Limit Switch (lifting and traveling), Interlock protection device.
