Shipbuilding Lifting 32m 20T Double Girder Gantry Crane

Minimum Order Quantity : 1 set Packaging Details : Electrical, hoist and other parts packed by high quality plywood crate; Beams packed by rain proof plastic cloth
Delivery Time : 20 days Payment Terms : L/C, T/T
Supply Ability : 1 set
Place of Origin: China Brand Name: Silence
Certification: ISO CE Model Number: MG

Detail Information

Advantage: More Smooth OEM: Yes
Industry Working Voltage: According To Your Demand After Warranty Service: Online Support
Lifting Mechanism: Electric Trolley Max. Lifting Height: 32m
High Light:

32m Double Girder Gantry Crane

,

20T Double Girder Gantry Crane

,

Double Girder Shipbuilding Gantry Crane

Product Description

Outdoors Industry 20 Ton Marble Loading Double Girder Gantry Crane Factory Price





Product introduction



Double girder 35-ton precast gantry cranes are made up of bridge, trolley, crane traveling mechanism and electric system.



All the procedures are finished in the operating room. Applies to the open warehouse or rail along for general handling and lifting work.



It also can be equipped with many lifting devices for special work.



Prohibited for lifting high-temperature solution, flammable, explosive, corrosion, overloading, dust and other dangerous operations.





Product superiority



1. First of all, the lifting structure relies on the completion of the track, which eliminates the traditional fault source from the big wheel or diesel generator set, and reduces the fault incidence during the operation of the crane.


2. Secondly, the gantry crane is driven by electric power, so there is no need to change the oil during operation, and the maintenance consumables are effectively controlled.



The maintenance expenses are small, low cost, and the economic benefits are significant.


3. Thirdly, in the process of rail lifting, the track is in a fixed state, and it is coordinated with the positioning device of the cart to avoid deviation in the case of high load force, with high level of automation.


4. Finally, in the operation process of the gantry crane, it is directly connected with the high-voltage power supply.



When the mechanism does not operate, there is basically no noise pollution or air pollution.



Moreover, the energy feedback device can be introduced to achieve energy feedback under the descending state of the lifting mechanism, so as to achieve the purpose of saving energy consumption.

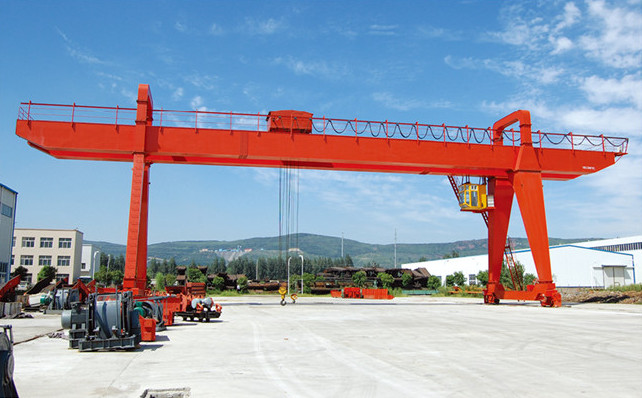

Shipbuilding Lifting 32m 20T Double Girder Gantry Crane 0

Maintenance


1. Lubrication


The working performance and life of crane mechanism depend on lubrication to a great extent.


When lubrication, the maintenance of mechanical and electrical products, lubrication refer to their own instructions, walking carts, heavy derrick cars should be filled with grease once a week.



Hoist refill industrial gear oil (SY1172-80) 200, should always check the oil level height, timely supplement.


2. Wire rope


Attention should be paid to the situation of broken wire rope.



If there is a broken wire, broken strand or wear to scrap standard, should be replaced in a timely manner, can choose wire rope phosphating coating wire rope, galvanized wire rope and smooth wire rope.



3. Sling


The spreader must be checked regularly.


4. Pulley block


Mainly check the wear of rope groove, whether the flange is cracked and whether the pulley is stuck on the shaft.


5. The wheel


Check the flange and tread regularly and replace the wheel when the wear or crack of the flange reaches 10% thickness.


When the diameter difference between the two driving wheels on the tread is more than D/600, or when there is a serious scar on the tread, the car should be cleaned up again.


6. Brakes


Each shift should be inspected once.


Brake action should be accurate, the pin shaft must not be stuck.



Brake shoes should fit the brake wheel correctly, and the gap of brake shoes should be equal when releasing the brake





Technical parameters



Main Specification
Crane Model LH Double Girder Overhead Crane without main girder
Lift Capacity 15T
Lift height/Hoist 10m
Work duty M4
Control Method Pendant control
Power Supply 3P 415V 50HZ
Electrical Package 110V
Electric Part CHINT Electric Components
Lifting System
Lifting speed 3.5m/min
Lifting motor ZD51-4-13KW
Wire rope Diameter 18mm 4/1 reeve
Traveling System
  Hoist Trolley Traveling System Crane Traveling System
Traveling speed 20m/min 20m/min
Traveling motor 0.8KWX2 YSEW95LZ-1.5KWX2sets
Wheel diameter 300mm*4units 300mmX4units



Company Introduction

Henan Silence Industry Co., Ltd focuses on lifting resolutions for customers. We provide design, production, and service of different lifting equipment, which covers electric wire rope hoist, chain hoist, jib crane, bridge crane, gantry crane, etc.

Under principle Customer First, Modern Crane people always provide customers with first-class products and excellent service. SILENCE CRANE people follow a strict QUALITY CONTROL system which ensures the perfection of each lifting equipment.

Our products have completely passed ISO9001, CE, GS and other quality system certificates. Thanks to our high-quality products and outstanding customer service.

SILENCE CRANE has earned a reputation from our customers and gained a global sales network reaching Brazil, India, Philippine, Ukraine, Argentina, Spanish, Malaysia and the other 30 countries.

With the commitment of customer satisfaction, we are expecting to widen and deepen the cooperation and communication with all friends all over the world.





Product details

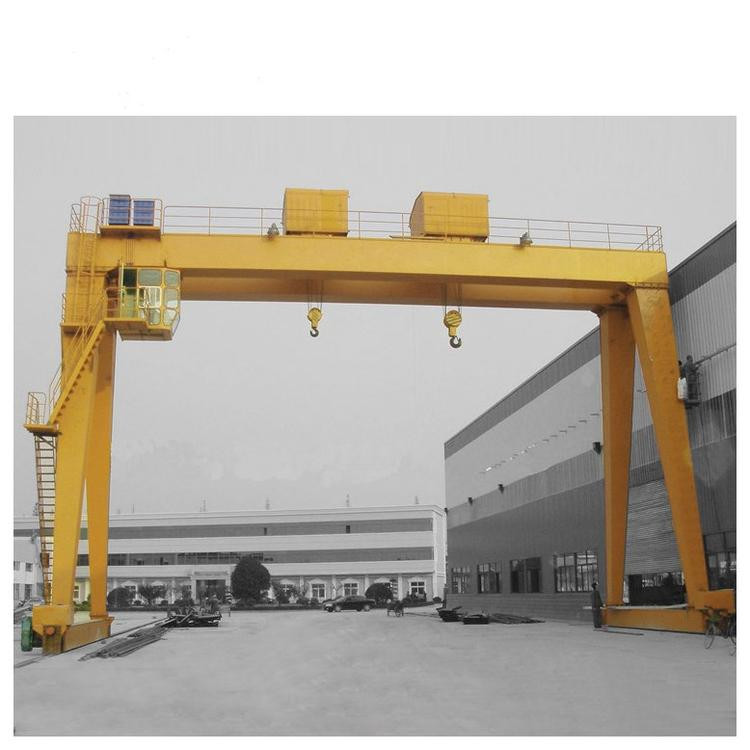

Shipbuilding Lifting 32m 20T Double Girder Gantry Crane 1
