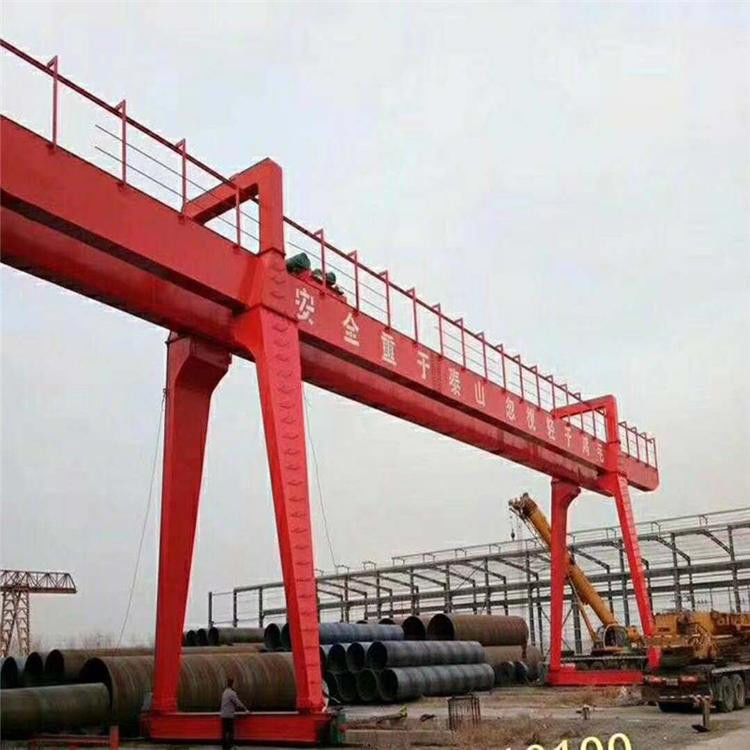

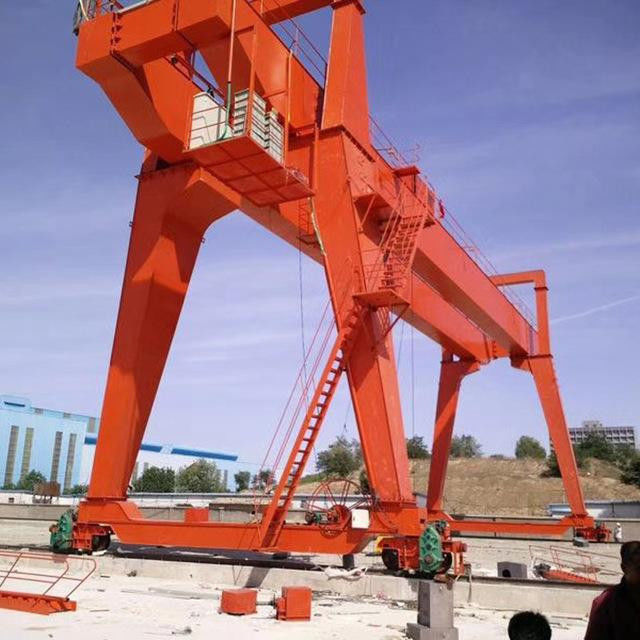

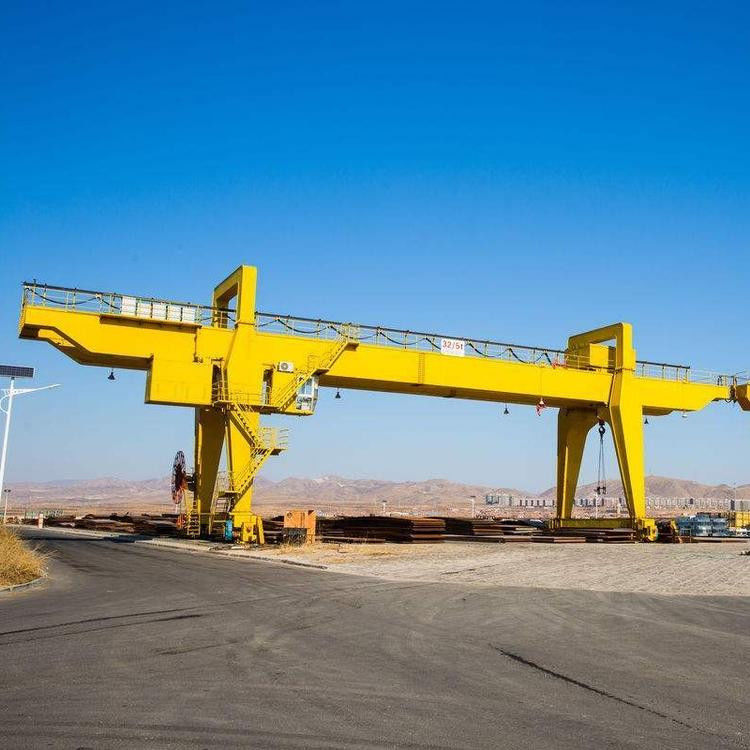

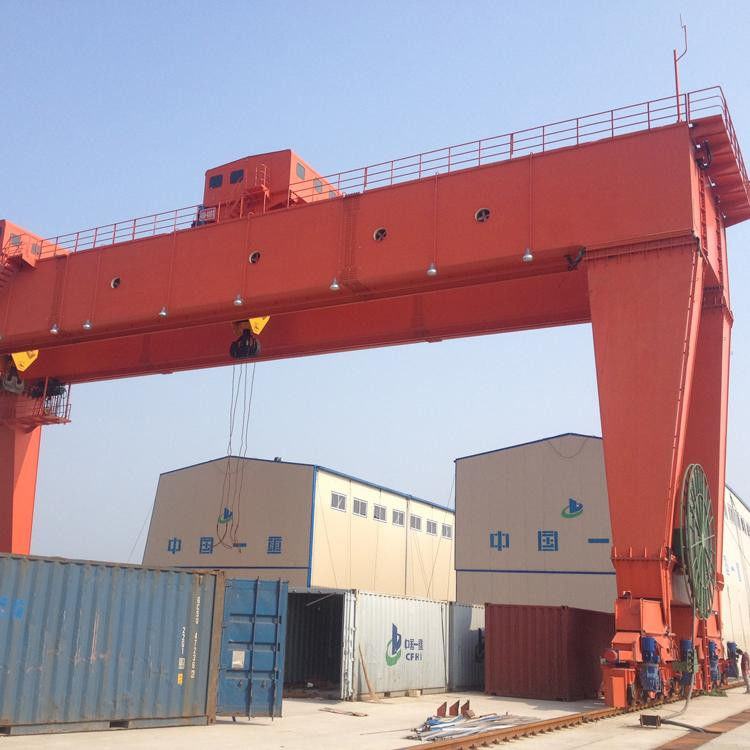

Railway Station 30000KN 30T Double Girder Goliath Crane

Minimum Order Quantity : 1 set Packaging Details : Electrical, hoist and other parts packed by high quality plywood crate; Beams packed by rain proof plastic cloth
Delivery Time : 20 days Payment Terms : L/C, T/T
Supply Ability : 1 set
Place of Origin: China Brand Name: Silence
Certification: ISO CE Model Number: MG

Detail Information

Max. Lifting Load: Customized DIY Deisign After-sales Service Provided: Video Technical Support, Field Installation, Commission
Lifting Mechanism: Rotating Trolley Rated Lifting Moment: 30000KN
Application: Railway Station, Shipping Yard Material Handling Crane Feature: Heavy Duty
High Light:

30T Double Girder Goliath Crane

,

30000KN Double Girder Goliath Crane

,

Railway Station Goliath Crane

Product Description

Widely Shipping Yard Material Handling 30Ton Outdoor Double Girder Goliath Crane





Product introduction




Goliath crane is commonly known as gantry crane. It's the pictograph of gantry crane, in fact, it's gantry crane.



Gantry crane is generally used for project installation, such as large equipment, but requires a wide site.



Most of the time, it is used to lift heavy goods. Its structure is like a gantry, laying the track on the ground.



The old-fashioned one has a motor at both ends, and the drag crane moves back and forth on the track.



In order to install more accurately, many gantry types also use frequency conversion motor and servo drive.







Product superiority



1. The box double beam welding structure is adopted to increase the working space and facilitate the transportation, installation and maintenance.


2. The trolley adopts special rail cable conductive device.


3. Parts standardization, seriation and generalization.


4. There are two types of crane power supply: cable drum type (divided into left and right ends) and sliding contact line type



(divided into left and right ends), which can be selected by users.


5. The driver's cab has a wide field of vision, and is equipped with a linkage console, which is flexible, stable and comfortable to operate.



Fans, hot air heaters, cold fans, air conditioners and walkie talkies can also be added according to the user's requirements.



They are suitable for different occasions and convenient for users to use.



Technical parameters



Railway Station 30000KN 30T Double Girder Goliath Crane 0

Model Double Girder Gantry Crane Note
Crane Capacity 25t/5t
Span 30m+5m External cantilever 5meters
Main Lifting Height 13.5m
Aux. Lifting Height 14m
Trolley Cover Rain-proof cover included
Main Lifting Speed 7.7m/min
Aux. Lifting Speed 8.5m/min
Cross Traveling Speed 37.2m/min
Long Traveling Speed 30m/min
Control Method Cabin with Joystick Controller
Control Voltage 110V AC
Motor Protection Level IP55
Motor Isolation Grade F
Power Supply 380V 50HZ 3P
Working Temperature -20℃~50℃
Electrical Insulation Class H -
Working Class M7 24hours operating
Max. Wheel Load 195KN
Total Power 105.5KW
Self -Weight 85000kg



The parameters in the picture are for reference only and can be customized according to the customer's requirements.



Product application



(1)High site utilization



(2)Large scope of work



(3)It has a wide range of adaptations



(4)It has strong universality,



(5)Generally used in port yard, etc



Railway Station 30000KN 30T Double Girder Goliath Crane 1

Company Introduction

Henan Silence Industry Co., Ltd focuses on lifting resolutions for customers. We provide design, production, and service of different lifting equipment, which covers electric wire rope hoist, chain hoist, jib crane, bridge crane, gantry crane, etc.

Under principle Customer First, Modern Crane people always provide customers with first-class products and excellent service. SILENCE CRANE people follow a strict QUALITY CONTROL system which ensures the perfection of each lifting equipment.

Our products have completely passed ISO9001, CE, GS and other quality system certificates. Thanks to our high-quality products and outstanding customer service.

SILENCE CRANE has earned a reputation from our customers and gained a global sales network reaching Brazil, India, Philippine, Ukraine, Argentina, Spanish, Malaysia and the other 30 countries.

With the commitment of customer satisfaction, we are expecting to widen and deepen the cooperation and communication with all friends all over the world.



Packing and delivery



Railway Station 30000KN 30T Double Girder Goliath Crane 2
