Span 35m L Type Gantry Crane 50T Rail Mounted Quay Crane
Contact Person : Iris
Phone Number : +86 19939938244
WhatsApp : +8619939938244
Minimum Order Quantity : | 1 set | Packaging Details : | Electrical, hoist and other parts packed by high quality plywood crate; Beams packed by rain proof plastic cloth |
---|---|---|---|
Delivery Time : | 30 days | Payment Terms : | L/C, T/T |
Supply Ability : | 1 set |
Place of Origin: | China | Brand Name: | Silence |
---|---|---|---|
Certification: | ISO CE | Model Number: | MG |
Detail Information |
|||
Lifting Mechanism: | Heavy Duty Cart | Type: | 4 Wheels,MG |
---|---|---|---|
Work Duty: | A5-A8 | Power Source: | 3-Phrase A.C.50Hz 380V |
Control Method: | Remote / Cabin/Pendant Control | Rated Loading Capacity: | 5-500t,10~500ton |
High Light: | A8 Rail Mounted Gantry Crane,MG Rail Mounted Gantry Crane,15t Double Girder Gantry Crane |
Product Description

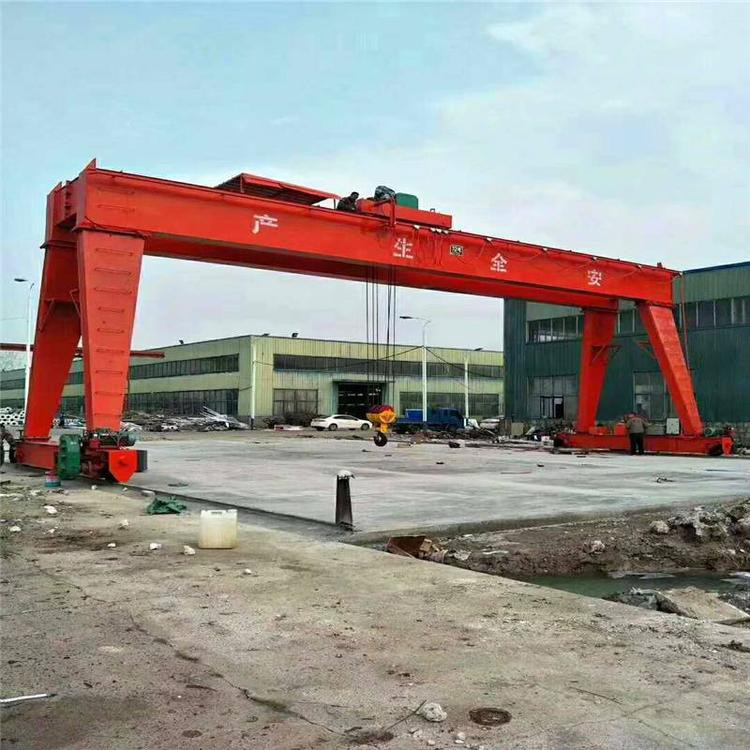

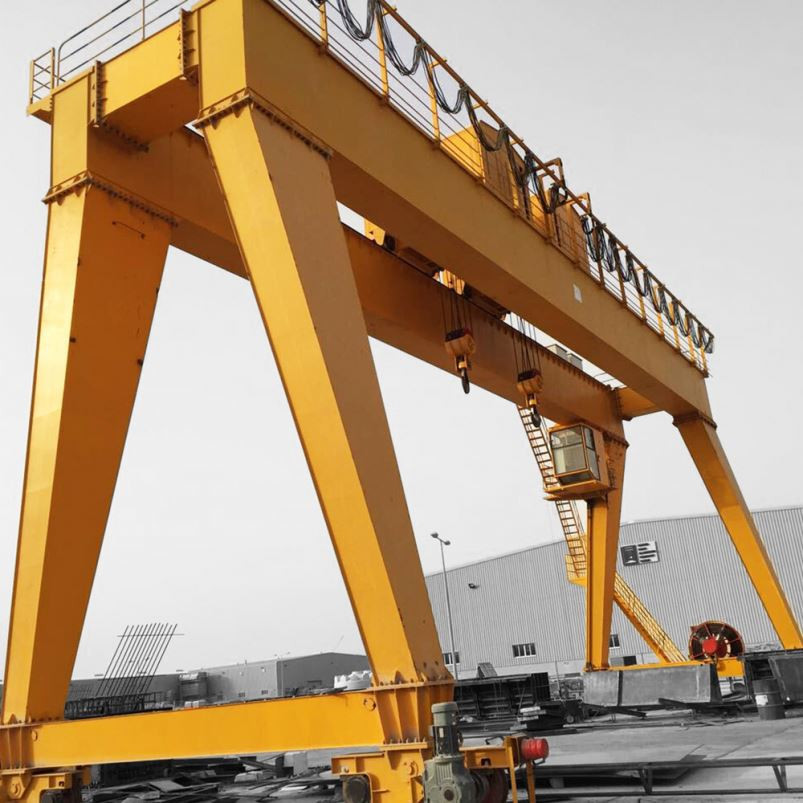

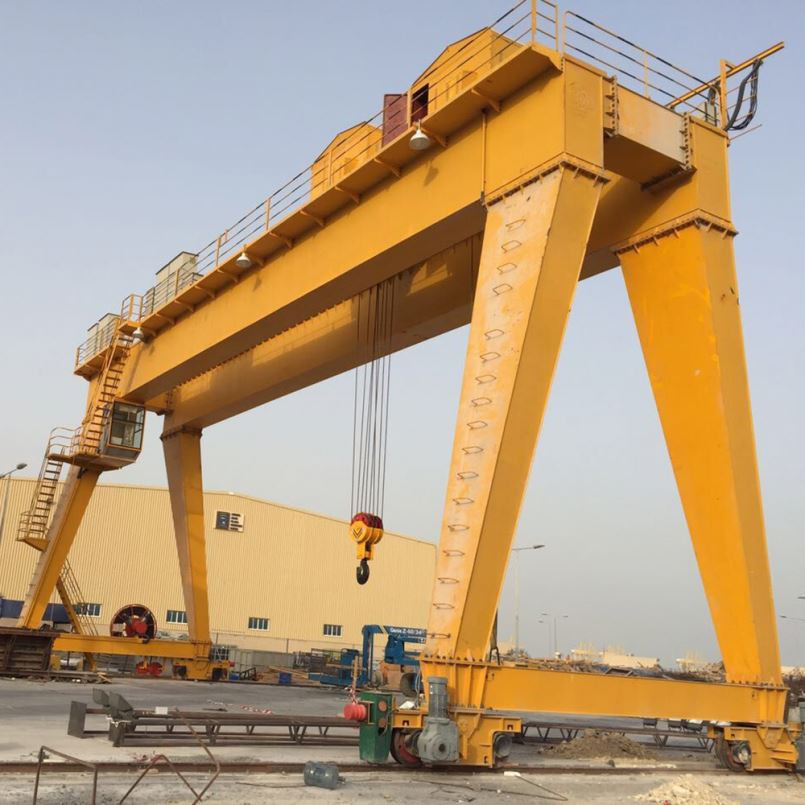

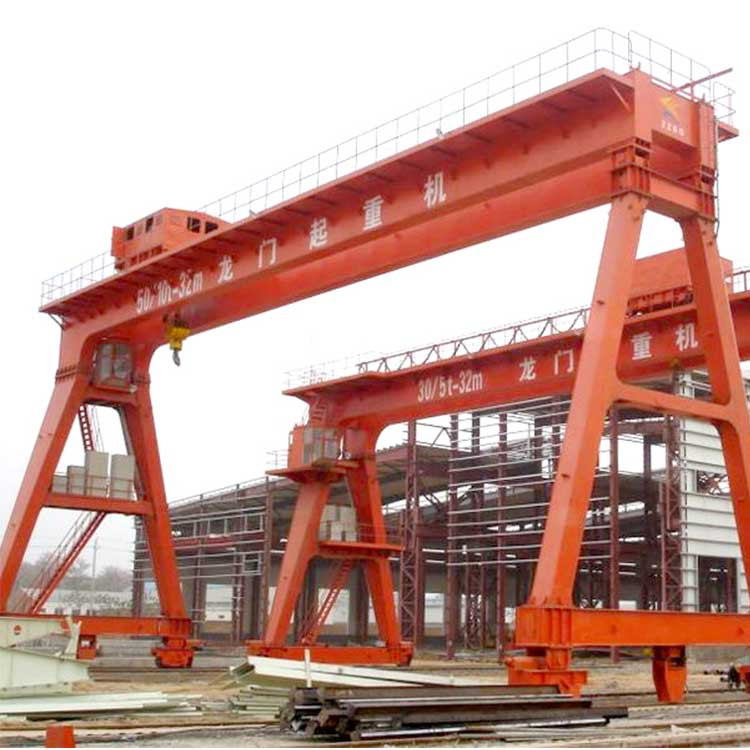

Storage Use Radio Remote Control 15t Double Girder Rail Mounted Gantry Crane Factory
Product introduction
Double beam Gantry crane is a kind of deformation of bridge crane.In the port, mainly used for outdoor yard, yard cargo, bulk cargo loading and unloading operations.
Its metal structure resembles a portal frame, and two legs are installed under the main beam, which can walk directly on the track of the ground.
The two ends of the main beam can have overhanging cantilever beams.
Gantry crane has the characteristics of high site utilization rate, wide operation range, wide adaptability and strong versatility, and has been widely used in port freight yard.
Product features
The crane shall be processed and inspected in accordance with GB/ T14406-93 "General Gantry Crane" and GB5905-86 "Crane test
Specification and Procedure", and shall meet the following main requirements:
1. The metal structure of the crane shall be made of carbon structural steel according to GB700 (steel brand Q235 B) and low-alloy structural steel according to GB1591;
2. The steel of important components shall be treated with surface spray (shot blasting) before painting to reach sa21/2 as stipulated in GB8923;The remaining members reach Sa2 or St2 level;
3. The groove of welding seam conforms to the provisions of GB985 and 986, and the appearance of welding seam is free from defects (such as cracks, holes, solid slag inclusion, non-fusion, non-penetration, shape defects, etc.);
The butt joint of the main beam and the fillet weld of the leg are all made by submerged arc automatic welding.
The butt weld of the flange plate and the web in the tensile zone is 100% non-destructive testing.
Ultrasonic flaw detection shall not be lower than class I specified in JB1152;Not lower than GB3323 grade II for radiographic inspection:
4. The brake wheel for each mechanism of the crane shall be made of no less than 45 steel as stipulated in GB699 or ZG340~640 steel as stipulated in GB11352.
The hardness of the surface heat treatment shall be 45~55HRC and the hardness of the depth of 15~20mm shall be no less than 40HRC.
5. The main accessories of the crane include motor, reducer, hydraulic brake, reel, pulley block, hook and control electric appliances, which are supplied by the designated manufacturer of the crane and conform to relevant standards;
6. In order to ensure the safe operation of the crane, each crane mechanism is equipped with a limit switch. When the mechanism runs to a specific position, the limit switch will act, the motor will be cut off, the brake will hold the brake and the operation will be terminated.
In order to ensure the personal safety of the staff, a walking platform with a width of not less than 500mm is set on both sides of the main girder of the bridge.
A guardrail with a height of 1050mm is set on the outside (plus a horizontal bar for each 350mm), and a guard plate with a height of not less than 70mm is set on the bottom.
7. After the crane is assembled on the standard platform, inspected, adjusted and tested (no load), it is approved to leave the factory
Technical parameters
Lifting Capacity | T | 10 | 16 | 20/10 | 32/10 | 36/16 | 50/10 | |
Span | m | 22~35m | ||||||
Speed | Main Hook Lifting | m/min | 8.5 | 7.9 | 7.2 | 7.5 | 7.8 | 6 |
Aux. Hook Lifting | 10.4 | 10.4 | 10.5 | 10.4 | ||||
Traveling of Trolley | 43.8 | 44.5 | 44.5 | 41.9 | 41.9 | 38.13 | ||
Traveling of Crane | 37.6/40 | 38/36 | 38/36 | 40 | 40/38 | 38 | ||
Operational Model | Cabin | |||||||
Working Duty | A5 | |||||||
Power Supply | Three-phase A.C. 380V, 50Hz | |||||||
We can design and manufacture all kinds of non-standard product according to your requirement |
Questions and Answers
Q. What's the information should I provide when inquiry More details or drawings, better.
A Lift capacity
B span
C lift height
D power sourceor other specials you give us will be more appreciated.
Q. How many operating methods for my selection Standard operating methods
A pendent controller with push buttons .
B remote control with push buttons
C cabin(space capsule seat) control with joystick. Choose any type as you like.
Q. Can this type work in hazardous environment
A Sure! We can customize for you, acid proof or explosion proof, no problem for that.
Q. Can you provide the serious lifting tools
A Sure, we can provide any lift tools such as lift sling belt, lift clamp, grab, magnet or other specials as your requirement!
Q. How can we install the crane
A Our senior engineer can be your side to do the installation guide service and training. Moreover, our best sales can visit your country.
Q. Safety device
A Overload limiter, Limit Switch (lifting and traveling), Interlock protection device.
