Warehouse Traveling 25T Single Girder Gantry Crane

Minimum Order Quantity : 1 set Packaging Details : Electrical, hoist and other parts packed by high quality plywood crate; Beams packed by rain proof plastic cloth
Delivery Time : 20 days Payment Terms : L/C, T/T
Supply Ability : 4 sets
Place of Origin: China Brand Name: Silence
Certification: ISO CE Model Number: MH

Detail Information

Application: Workshop,Warehouse Reducer: Zhongrui Brand
Limted Switch: Include Rated Lifting Moment: Different
Voltage: 220V/240V/360V/440V Working Environment: -25~40°C
High Light:

Traveling Single Girder Gantry Crane


25T Single Girder Gantry Crane

Product Description

Iso9001 Certified 25 Ton Traveling Single Beam Door Gantry Crane Manufacturer
Product presentation
MH gantry crane with electric hoist is small-medium type lifting equipment whichruns at rail, It is mainly composed of gantry frame ( girder, leg , ground cross beam, etc.),hoisting mechanism and electric control part. the electric hoist is hoisting mechanism; it runsalong the lower flange of the I-steel of the girder.
The gantry frane includes box-shape structure. Box shaping and easy fabrication, with light trussed frame and strong in wind resistance. light dead weight, simple structure and easy installation and maintenance.
So it is applicable to outdoor operational sites of small-medium lifting load for general handing such as factories and mine, fright yards and warehouse. It is prohibited to operate in the enviroment with inflammable , explosive and corrosive gas.
It has three opretion modes: ground pendant with press button, wireless remote control and cabin control
Using high-quality components can reduce failure rate and maintenance costs.
Low consumption of total power can reduce the costs, it had remakeable energy-saving effect.
Variable Frequency control make cranes run smoothly.
Standardize the whole crane coninguration to make the whole machine more stable.
Real-time security monitoring while crane running.
The networking and automation of electric part, such as HIM human-computer interface, remote management of internet of things, electronic anti-shake function and automatic correction function and ect.
Main Features
1. Heavy Duty and High Efficient;
2. Suitable for any environment ( High Temperature, Explosion Proof and so on);
3. Long Life Span: 30-50years;
4. Easy for Installation and maintenance;
5. Reasonable structure and strong rigidity;
6. The speed can be frequency inverter speed control;
7. Control method is cabin control or remote control;
8. Depending on lifting cargo, crane can be equipped with hanging beam magnet or magnet chuck or Grab or C hook;
9. Crane is equipped with all moving limit switch, loading limit and other standard safety devices, to promise crane work safe.
Safety feature
Overload protection devices is equipped which will give a sharp alarm warning when overloads happen.
Limit switches is used to prevent over lifting or lowering of the crane hook.
High quality polyurethane buffer is used to ensure a long time working life.
Room control and remote control are available for the sake of your operator’s safety.
Low voltage protection is used in case of the unstable voltage supply.
Emergency stop button is installed to brake the equipment when emergency happens.
Current overload protection system and others, etc.
Product details

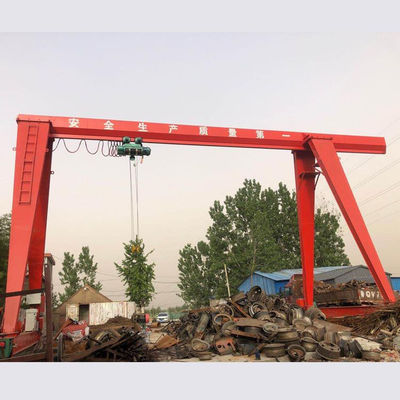

 Warehouse Traveling 25T Single Girder Gantry Crane 0
Technical parameters
Warehouse Traveling 25T Single Girder Gantry Crane 1

lifting capacityt10
lifting heightm6/99
traveling mechanismtraveling speedgroundm/min20
controlling room 30 40
motorground YZR132M2-6/4*2YZR160m1-6/6.3*2
controlling room YZR160m1-6/6.3*2YZR160m2-6/8.5*2
reducer  ZSC400ZSC(A)600
wheel diameter M400500
electric hoistType No.  CD1 ,MD1
lifting speed m/min7/0.7
traveling speed m/min20
motorlifting ZD151-4/13 ZDS1 2.2/13
traveling ZDY121-4/0.8*2
Working system A4

Shipping and packing
Warehouse Traveling 25T Single Girder Gantry Crane 2
