8m/Min Material Handling 10 Ton Mobile Gantry Crane

Minimum Order Quantity : 1 set Packaging Details : Electrical, hoist and other parts packed by high quality plywood crate; Beams packed by rain proof plastic cloth
Delivery Time : 20 days Payment Terms : L/C, T/T
Supply Ability : 4 sets
Place of Origin: China Brand Name: Silence
Certification: ISO CE Model Number: MH

Detail Information

Feeding Power Supply Systerm: Electric Cable Reel & Electric Cable Machinery Test Report: Provided
Application: Widely Lifting Speed: 0~8m/min
Max. Lifting Load: 32 Ton Work Duty: A3-A4
High Light:

8m/Min Mobile Gantry Crane


10 Ton Mobile Gantry Crane

Product Description

Hot Sale ! 10Ton China Material Handling Single Girder Mobile Gantry Crane Price



Product presentation


1, MH type electric hoist gantry crane has a gantry frame structure, its bearing main beam is installed under two legs, the cart can walk on the ground pre-paved track.It has the characteristics of high site utilization rate, wide operation range, wide adaptability and strong versatility, and is widely used in outdoor cargo yard, material yard and bulk cargo loading and unloading operation.

2, MH type electric hoist gantry crane and CD1 type, MD1 type electric hoist supporting use, electric hoist hanging on the main beam I-steel or the main beam under the edge, its lifting weight is 1T-16T, span is 7.5-28.5m, the working level is A3-A4, the working environment temperature is -25℃ ~ 40℃.


3. MH type electric hoist gantry crane is provided with ground and control room.The ground operation usually adopts the operation mode of handle button and remote control.Operation room can be divided into open and closed two, according to the situation can be divided into left and right installed two.


 Safety protection device

1. Overload limiter.

2. High quality, long time use, impact resistant polyurethane buffer.

3. Crane travel limit switch.

4. Loss of voltage protection and phase mismatch protection.

5. Emergency stop system, brake system.

6. Lifting height limiter.

Technical Features

Three-in-one transmission system, electric non-contact module speed control, and can realize the micro speed and double speed close frequency conversion function, so that the operation, lifting, electric is particularly stable.


Equipped with overload alarm, slanting pull diagonal crane, two protection against hook hitting the top, missing item overcurrent protection, etc., the operating platform (handle) adopts 12V safety voltage to realize multi-function protection of hoist gantry crane.


Voltage 380V+5~-10% within the electronic control can be used for a long time up to 2 million times.


Applicable Scope

Single girder gantry crane is widely used in subway construction, station wharf, logistics transportation, warehouse yard, construction site, cement factory, machinery assembly plant, hydropower station and other open work site for lifting, transportation, loading and unloading, etc., and also suitable for indoor workshop work.


Product Advantages

Simple and compact structure

Easy to maintain


Stable performance

Easy installation

Affordable price


Product details

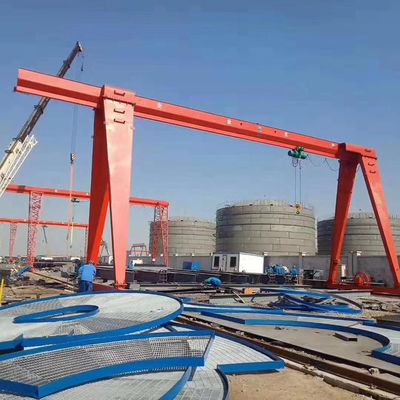

 8m/Min Material Handling 10 Ton Mobile Gantry Crane 0

8m/Min Material Handling 10 Ton Mobile Gantry Crane 1

Technical parameters
8m/Min Material Handling 10 Ton Mobile Gantry Crane 2

Mechanism   Item Unit Result
Lifting capacity ton 5-32
Lifting height m 6 9
Span m 12-30m
Working environment temperture °C -20~40
Travelling mechanism Travelling speed Ground m/min 20
Controlling Room 20
Lifting mechanism lifting speed m/min 8 0.8/8 7 0.7/7 3.5 2.5
travelling speed m/min 20
working system A5
power source three-phase 380V 50HZ


Shipping and packaging

8m/Min Material Handling 10 Ton Mobile Gantry Crane 3
