Wire Rope Sling Low Headroom Trolley Hoist 3 Ton 2.8-7.8 m/min Lifting Speed

Minimum Order Quantity : 1 set Price : Negotiable
Packaging Details : high quality plywood crate Delivery Time : 7 days
Payment Terms : L/C, T/T, Western Union Supply Ability : 3000 sets/per month
Place of Origin: China Brand Name: Silence
Certification: ISO Model Number: CD

Detail Information

Sling Type: Wire Rope After-sales Service Provided: Online Support,No Overseas Service Provided
Power Source: Electric Usage: Workshop
Lifting Speed: 2.8--7.8 M/min Travelling Speed: 11 Or 20 M/min
High Light:

low headroom chain hoist


low headroom electric hoist

Product Description

3 Ton High Quality Low Headroom Hoist Electric Wire Rope Hoist With Trolley


Product presentation

Low headroom wire rope electric hoist is improved from CD and MD type electric hoist, the working conditions are same as CD and MD type wire rope electric hoist,it increase more lifting room and can save construction cost of workshop, can lift the material to a more higher position.


This type wire-rope electric hoists can be widely used to hoist heavy objects, or installed on the straight or curve I-steel beam of Single-girder Cranes. They can also be used together with Electric Hoist Double-beam, gantry crane and slewing cranes. All the above has made the electric hoists common in industrial and ore enterprises, railway, wharfs and warehouses.



• CE approved.

• Lightweight robust construction.

• Low effort to lift maximum load.

• Fully forged hooks.

• High grade alloy load chain.

• Durable baked enamel paint protection.

• Overload protection device available upon request.

• Excellent after-sale serve.


Product feature

The characteristics and advantages of low static air electric hoist are as follows:

1. Low clearance height.

2. Excellent three-in-one transmission technology, the lifting reducer is made of high-quality alloy steel, with three-stage reduction, stable operation, long life and reliable performance, avoiding many disadvantages of CD hoist intermediate shaft long-distance transmission.

3. The motor has an excellent comprehensive performance.

Exquisite structure, beautiful appearance, with many unique innovations:

(1) there is no leakage cable in the main body of the hoist, and the cables are arranged inside the hoist by various means to make the appearance of the hoist more beautiful;

For example, the supporting shaft is hollow thick-walled steel pipe, which can reduce the overall weight of the electric hoist and realize the cable crossing of the left and right parts of the hoist under the premise of ensuring the use strength.

(2) the structure of the hoist is compact, the counterweight is the counterweight box type, the user can add all kinds of scrap steel or stone, save the steel, at the same time than the counterweight block type low clearance electric hoist to reduce the appearance size;

(3) for the operation of the hoist, the driving wheels on both sides transmit torque through six-sided steel, which is of high torque and high reliability, avoiding the shear failure of the flat key, and this kind of transmission is also very conducive to the installation and regulation of the hoist operation part;

(4) the outer cover of the lifting main engine is square welded structure, with bolt holes installed on all sides, with high universality, which can be quickly changed into stationary or suspended trolley running electric hoist, and the rope can be produced in the direction of 360°.

The whole structure is easy to disassemble and install, convenient for maintenance and good maintainability.


Technical parameters

Wire Rope Sling Low Headroom Trolley Hoist 3 Ton  2.8-7.8 m/min Lifting Speed 0

Type Lifting capacity(t) Lifting Speed(m/min) Traveling speed(m/min) Working-class Pulley ratio Power c
h i
SHA2 1.6 8.0/1.2 15.8/5 M5 2/1 2.5/0.37 100-500 94-180
3.2 4.0/0.6 15.8/5 M5 4/1 2.5/0.37
SHA3 2.5 8.0/1.2 15.8/5 M5 2/1 4.9/0.8 116-450 116-180
5 4.0/0.6 15.8/5 M5 4/1 4.9/0.8
SHA4 6.3 10/1.6 15.6/5 M4 2/1 12.5/2.0 142-500 142-500
12.5 5.0/0.8 15.6/5 M4 4/1 12.5/2.0



Ex-factory test

Make sure the equipment is in good condition for commissioning before delivery.

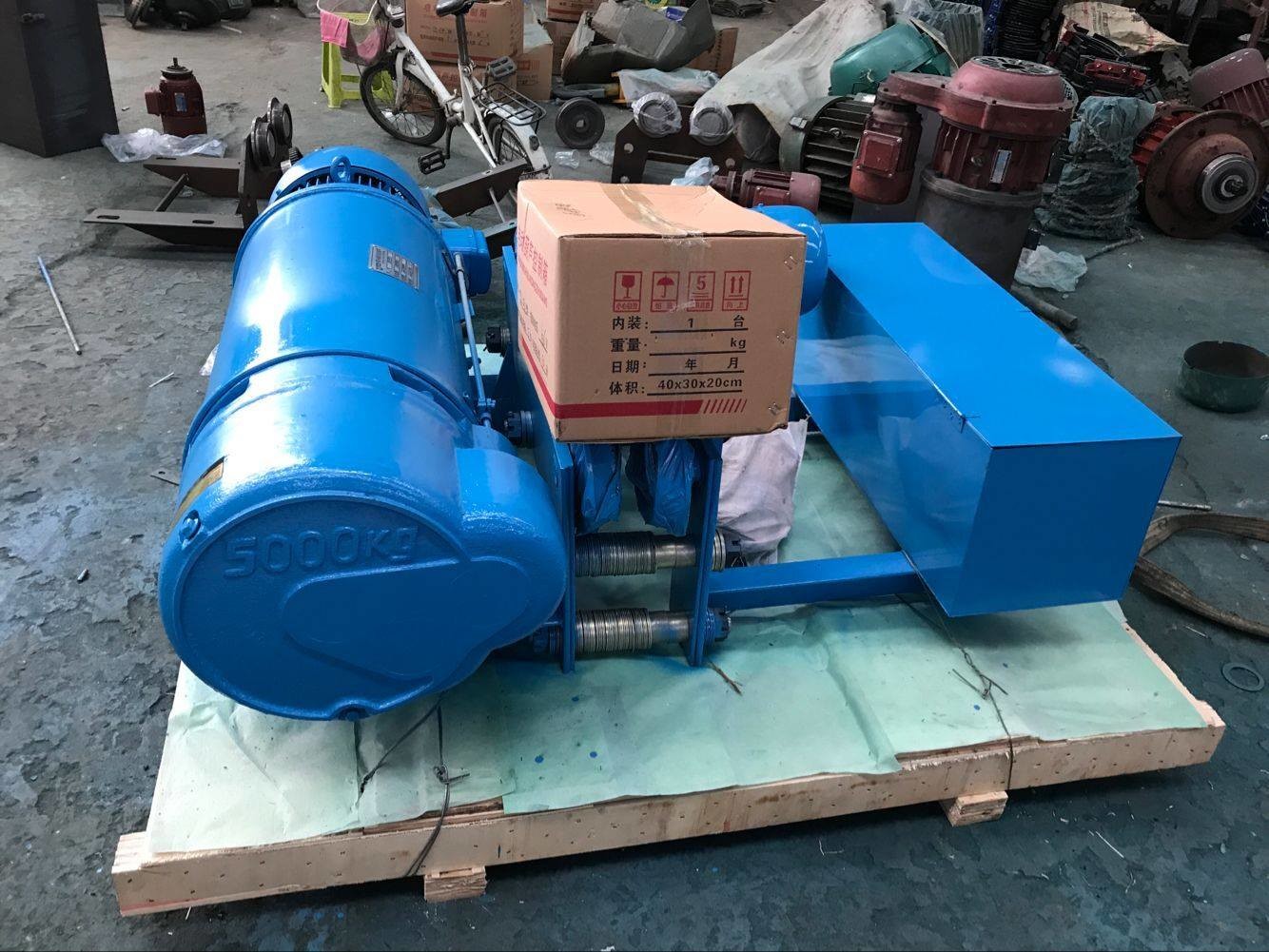

Wire Rope Sling Low Headroom Trolley Hoist 3 Ton  2.8-7.8 m/min Lifting Speed 1

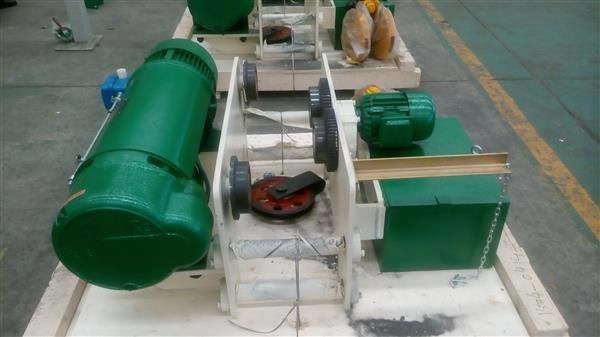

Wire Rope Sling Low Headroom Trolley Hoist 3 Ton  2.8-7.8 m/min Lifting Speed 2

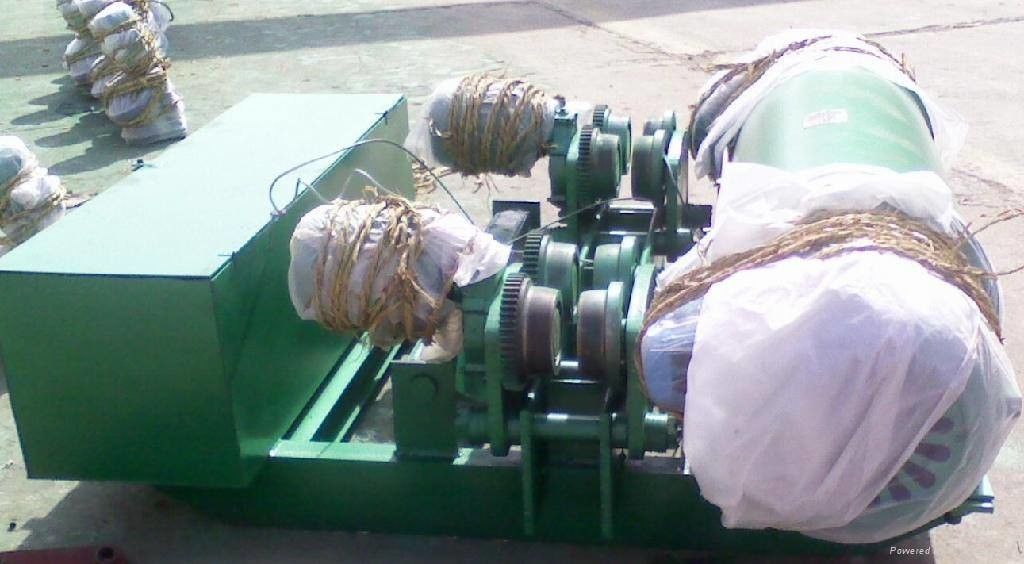

Wire Rope Sling Low Headroom Trolley Hoist 3 Ton  2.8-7.8 m/min Lifting Speed 3
