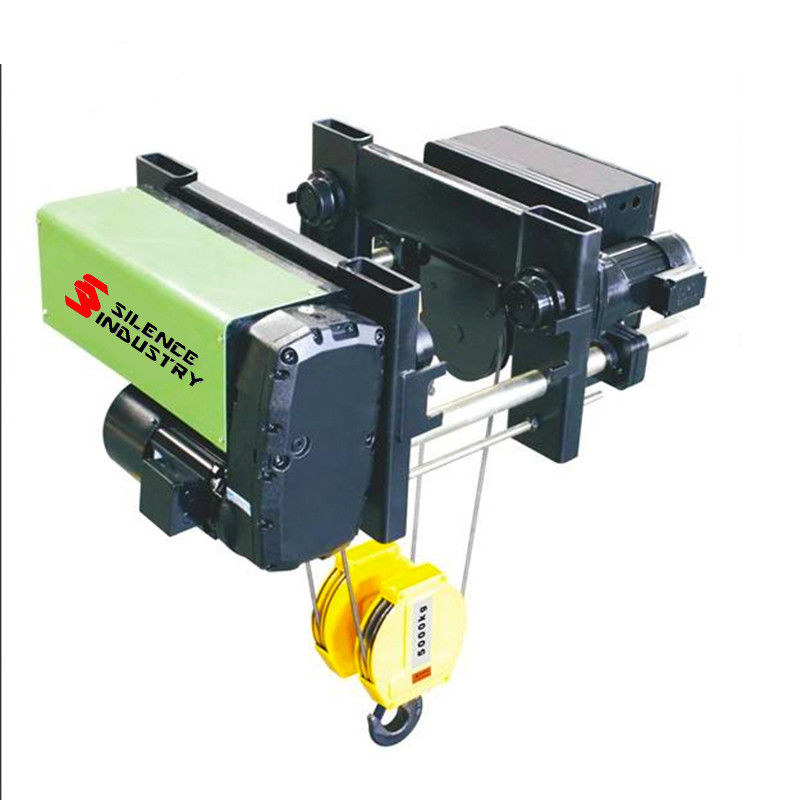

Single / Double Speed Low Headroom Electric Hoist High Reliability 0.5 - 20 Ton Available

Minimum Order Quantity : 1 set Price : Negotiable
Packaging Details : high quality plywood crate Delivery Time : 7 days
Payment Terms : L/C, T/T, Western Union Supply Ability : 3000 sets/per month
Place of Origin: China Brand Name: Silence
Certification: ISO Model Number: ND

Detail Information

Type: ND European Electric Wire Rope Hosit Travelling Speed: 2--20m/min
Application: Normal Working Environment,be Used In Low-level Space Capacity: 0.5 -20ton Available
Lifting Speed: Single/double Speed Color: According To Your Requirement
High Light:

low headroom electric hoist

,

low headroom trolley hoist

Product Description

Best Price Low Headroom Electric Wire Rope Hoist With Excellent European Brand 5 Ton



Product presentation



The electric wire rope hoist is a kind of loading transporting device which is used for vertical lifting and horizontal moving. The SWL (safety working load) has been marked on the Examine plantable and equipment Label. Meanwhile during the operation, FEM working-class, safety working time and start times. They can be installed on a fixed structures and also can move through the right track.



Lifting capacity Lifting height Speed (m/min) Work duty (FEM/ISO) Power (KW)
Lifting Traveling
1T 6-18M 1.6/10 5/20 4m/M7 0.2
1.25T 6-18M 1.6/10 5/20 3m/M6 0.2
1.6T 6-18M 0.8/5 5/20 3m/M6 0.2
1.6T 6-18M 1.3/8 5/20 4m/M7 0.2
2T 6-18M 0.8/5 5/20 2m/M5 0.31
2T 6-18M 1.3/8 5/20 3m/M6 0.31
2.5T 6-18M 0.8/5 5/20 3m/M6 0.31
2.5T 6-18M 1.3/8 5/20 2m/M5 0.31
3.2T 6-18M 1.0/6.3 5/20 2m/M5 0.44
3.2T 6-18M 0.8/5 5/20 2m/M5 0.44
5T 6-18M 0.8/5 5/20 2m/M5 0.44
5T 6-18M 1.3/8 5/20 1Am/M4 0.44
5T 6-18M 1.6/10 5/20 2m/M5 0.44
5T 6-18M 1.3/8 5/20 3m/M6 0.64
6.3T 6-18M 0.8/5 5/20 2m/M5 0.64
6.3T 6-18M 1.0/6.3 5/20 3m/M6 0.96
6.3T 6-18M 0.8/5 5/20 4m/M7 0.96
8T 6-18M 1.3/8.0 5/20 3m/M6 0.96
8T 6-18M 0.8/5 5/20 1Am/M4 0.96
10T 6-18M 0.8/5 5/20 2m/M5 0.96
10T 6-18M 1.0/6.3 5/20 1Am/M4 0.96
12.5T 6-18M 0.66/4 5/20 2m/M5 0.44
12.5T 6-18M 0.8/5 5/20 1Am/M4 0.96
5T 6-18M 1.6/10 5/20 2m/M5 0.44
8T 6-18M 1.3/8 5/20 2m/M5 0.96
10T 6-18M 1.3/8 5/20 1Am/M4 0.96
16T 6-18M 0.66/4 5/20 2m/M5 0.96×2



Advantages

• CE approved.

• Lightweight robust construction.

• Low effort to lift maximum load.

• Fully forged hooks.

• High grade alloy load chain.

• Durable baked enamel paint protection.

• Overload protection device available upon request.

• Excellent after-sale serve.

Single / Double Speed Low Headroom Electric Hoist High Reliability 0.5 - 20 Ton Available 0



Product feature

The characteristics and advantages of low static air electric hoist are as follows:

1. Low clearance height.

2. Excellent three-in-one transmission technology, the lifting reducer is made of high-quality alloy steel, with three-stage reduction, stable operation, long life and reliable performance, avoiding many disadvantages of CD hoist intermediate shaft long-distance transmission.

3. The motor has an excellent comprehensive performance.

Exquisite structure, beautiful appearance, with many unique innovations:

(1) there is no leakage cable in the main body of the hoist, and the cables are arranged inside the hoist by various means to make the appearance of the hoist more beautiful;

For example, the supporting shaft is hollow thick-walled steel pipe, which can reduce the overall weight of the electric hoist and realize the cable crossing of the left and right parts of the hoist under the premise of ensuring the use strength.

(2) the structure of the hoist is compact, the counterweight is the counterweight box type, the user can add all kinds of scrap steel or stone, save the steel, at the same time than the counterweight block type low clearance electric hoist to reduce the appearance size;

(3) for the operation of the hoist, the driving wheels on both sides transmit torque through six-sided steel, which is of high torque and high reliability, avoiding the shear failure of the flat key, and this kind of transmission is also very conducive to the installation and regulation of the hoist operation part;

(4) the outer cover of the lifting main engine is square welded structure, with bolt holes installed on all sides, with high universality, which can be quickly changed into stationary or suspended trolley running electric hoist, and the rope can be produced in the direction of 360°.

The whole structure is easy to disassemble and install, convenient for maintenance and good maintainability.

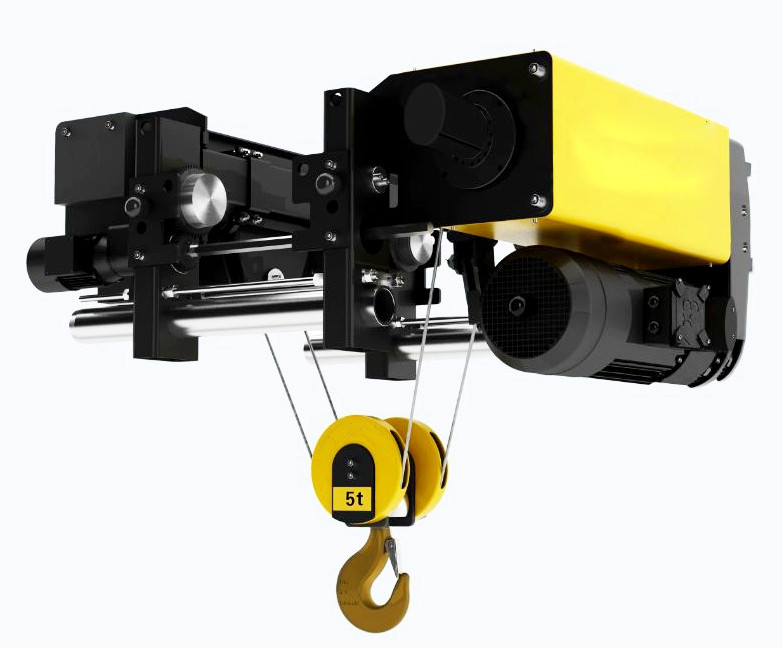

Single / Double Speed Low Headroom Electric Hoist High Reliability 0.5 - 20 Ton Available 1

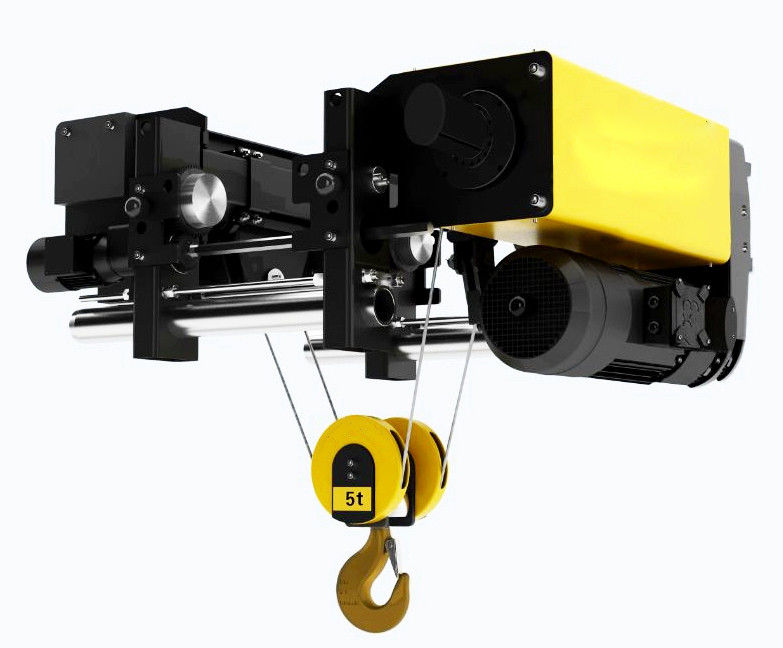

Single / Double Speed Low Headroom Electric Hoist High Reliability 0.5 - 20 Ton Available 2

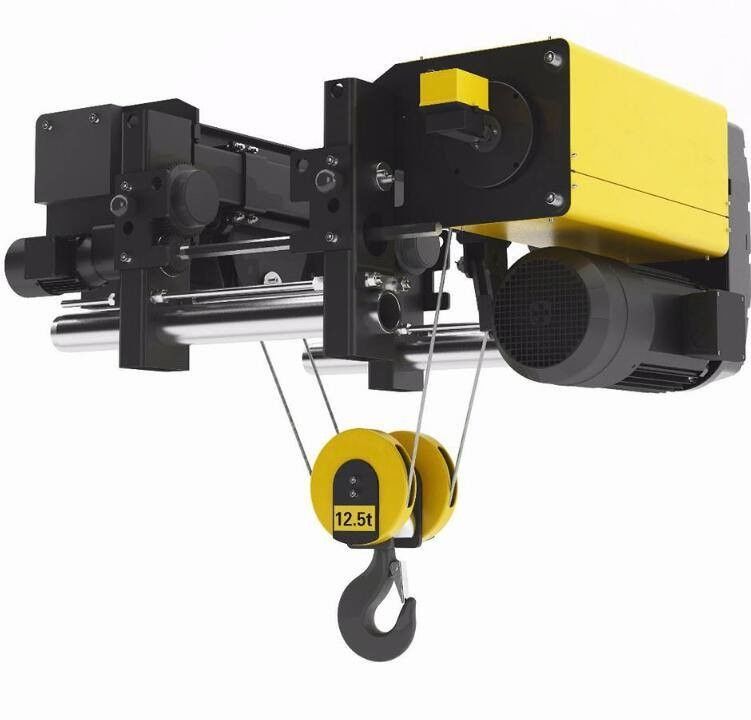

Single / Double Speed Low Headroom Electric Hoist High Reliability 0.5 - 20 Ton Available 3
