Mini Portable Gantry Crane , Mobile Rubber Tyre Gantry Crane 1 - 10 Ton

Minimum Order Quantity : 1 set Price : Negotiable
Packaging Details : Electrical and other parts packed by high quality plywood crate; Steel structure packed by rain proof plastic cloth. Delivery Time : 20 days
Payment Terms : L/C, T/T, Western Union Supply Ability : 3000 sets/per month
Place of Origin: China Brand Name: Silence
Certification: ISO CE Model Number: PT

Detail Information

Rated Loading Capacity: 1T-5T Color: Yellow
Warranty: 2 Years Span: Customized
Control Method: Remote Control Application: Outdoor,Warehouse,factory,Widely,workshop
High Light:

mobile gantry crane

,

adjustable gantry crane

Product Description

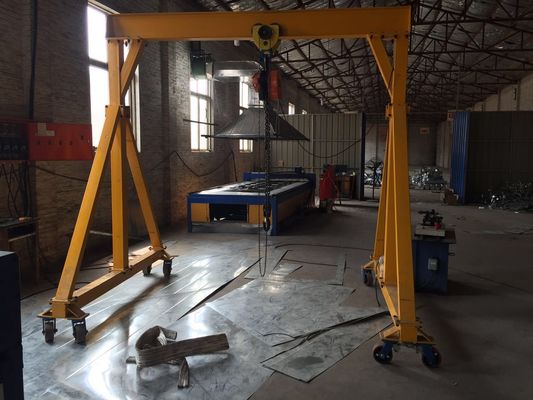

Small Mini Portable Gantry Crane Mobile Rubber Tyre Gantry Crane 10 5 3 2 1 Ton





Product presentation



Mini gantry crane are designed for transporting and lifting materials.

Small lift Gantry Crane which is manufactured for the medium and small factory (company) daily production need. It applies to model manufacture and installing situation, automobile factories, producing department and other lifting occasions.

The small electric gantry crane can move easily, disassemble and install quickly, cover little area. The structure design reasonably, can withstand 500 ~ 10000 kg weight, span up to 10 meters.

Especially apply to yard and workshop equipment installation, transportation.

The small gantry hoisting belt brake on bearing universal wheel can move on the ground, with electric hoist or manual hoist, chain blocks or monorail car accessory, realize the mechanization of hoisting, can reduce manpower and production costs, improve work efficiency.





Product details



1. Steel structure: Q235B carbon steel structure steel adopts a seamless forming process, more solid and beautiful:



Galvanized epoxy resin paint



Three layers of paint



2. Electric trolley type chain hoist:



Chain lift, single-speed



High strength low alloy steel structure, with motor and high wear-resistant wheels, compact structure, easy to install



Insulation class



3. Welding and spraying



4. Class 8.8 high strength bolts



5. The safety screw



6. Iron core polyurethane universal brake casters





Product superiority



1. The lifting weight of the gantry frame can reach 10 tons, with a variety of installation configurations and spans. Can be used with hand hoist, chain hoist, wire rope hoist.


2. Prefabricated standard modular design makes movement easier.


3. It can be installed on any ground without putting pressure on the roof structure of the building.


4. High lifting capacity.


5. Wide applicability and can be applied in many materials handling environments.


6. Economical for individual work units.


7. Easy installation, reducing installation time and cost.


8. It can increase operators' satisfaction.


9. The safe operating environment can be realized.


10. Reduce the labor force and improve production efficiency.



Technical parameters



Mini Portable Gantry Crane , Mobile Rubber Tyre Gantry Crane 1 - 10 Ton 0



Model Capacity(ton) Total height(m) Lifting height(m) Internal width(m) external width(m) H值(mm)
PT2-2 1 2.6-4 3.39 3 2.76 410
1 3.5-5 4.39 3 2.76 410
2 2.6-4 3.215 3 2.69 535
2 3.5-5 4.215 3 2.69 535
3 2.6-4 3.015 3 2.69 685
3 3.5-5 4.015 3 2.69 685
5 2.6-4 2.910 3 2.61 740
5 3.5-5 3.910 3 2.61 740





Install and packaging

Mini Portable Gantry Crane , Mobile Rubber Tyre Gantry Crane 1 - 10 Ton 1Mini Portable Gantry Crane , Mobile Rubber Tyre Gantry Crane 1 - 10 Ton 2
