Product Description

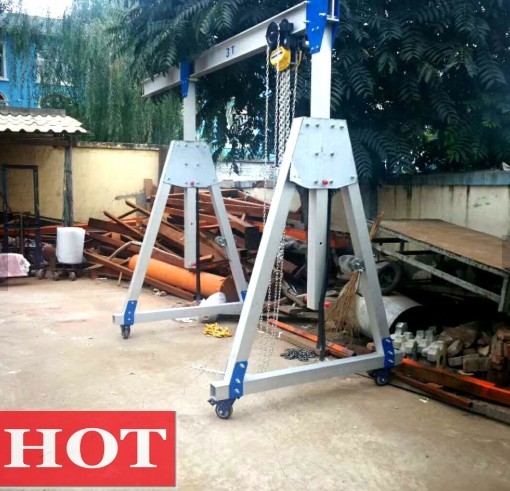

Adjustable Alluminium material portable gantry cranes 0.5Ton 1 Ton light duty mini lifting gantry crane
Product presentation
Aluminium portable gantry crane are designed for transporting and lifting materials.
Small lift Gantry Crane which is manufactured for the medium and small factory (company) daily production need. It applies to model manufacture and installing situation, automobile factories, producing department and other lifting occasions.
The aluminium portable gantry crane can move easily, disassemble and install quickly, cover little area. The structure design reasonably, can withstand 500 ~ 2000 kg weight, span up to 8 meters.
Advantages of portable gantry crane
Light weight ,five times the safety factor
Moisture and corrosion protection,explosion-proof
Height can be adjustable.
Span and height can be customized size.
Every steel tube is detachable,disassembly and assembly are easy
Product details
1. Steel structure: Q235B carbon steel structure steel adopts a seamless forming process, more solid and beautiful:
Galvanized epoxy resin paint
Three layers of paint
2. Electric trolley type chain hoist:
Chain lift, single-speed
High strength low alloy steel structure, with motor and high wear-resistant wheels, compact structure, easy to install
Insulation class
3. Welding and spraying
4. Class 8.8 high strength bolts
5. The safety screw
6. Iron core polyurethane universal brake casters
Technical parameters
| Model |
Capacity(ton) |
Total height(m) |
Lifting height(m) |
Internal width(m) |
external width(m) |
H(mm) |
| PT2-2 |
1 |
2.6-4 |
3.39 |
3 |
2.76 |
410 |
| 1 |
3.5-5 |
4.39 |
3 |
2.76 |
410 |
| 2 |
2.6-4 |
3.215 |
3 |
2.69 |
535 |
| 2 |
3.5-5 |
4.215 |
3 |
2.69 |
535 |
| 3 |
2.6-4 |
3.015 |
3 |
2.69 |
685 |
| 3 |
3.5-5 |
4.015 |
3 |
2.69 |
685 |
| 5 |
2.6-4 |
2.910 |
3 |
2.61 |
740 |
| 5 |
3.5-5 |
3.910 |
3 |
2.61 |
740 |
FAQ
1. Can u send me your price list ?
Sorry dear friend, as you know, if u are enduser , we can customize your gantry crane according your working environment. So pls tell me your information bellow, so i can give your quick offer .
a: Lift capacity b: Lift height c: Span length d: Power source f: Working environment.
2. Can u draw for us ?
Yes , we have good experienced technicians , we can design and draw for your own portal gantry crane according your requirements to solution your problems.
3. Operating methods for selection ?
A : Pendent controller with push buttons
B : wireless controller
We integrate all circuit in the controller to control the gantry crane move front and back , the hoist lift up and down , travel left and right .
4 . Can u provide the lifting tools series ?
Sure, we can provide any other lifting machinery you need , such as pallet stacker , truck and so on .
5. How to install the mobile gantry crane ?
We can send u the install operate manual or video , it’s easy to install the crane, but if u need our engineer can be your side.
6. What is your lead time ?
The lead time is 15 days for one set .
