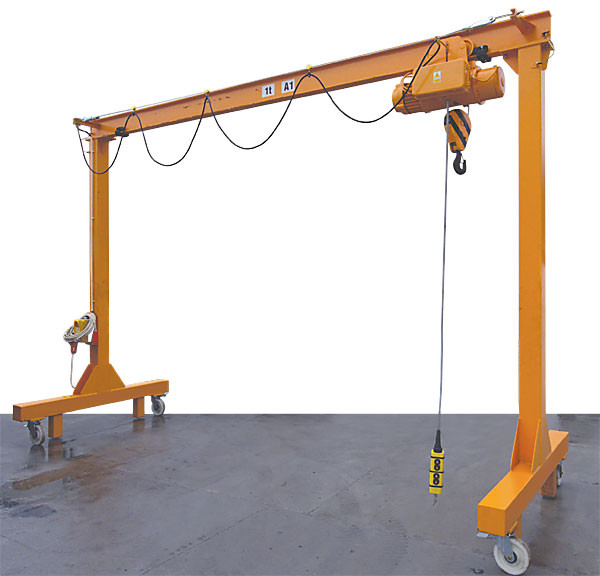

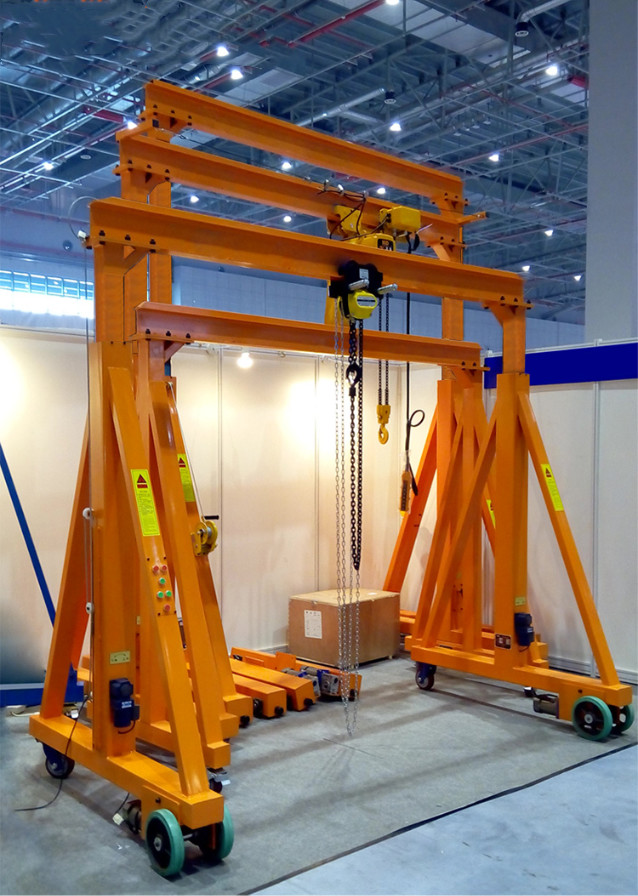

Temporary 3.2T Portable Aluminum Gantry Crane Portable A Frame Gantry
Contact Person : Iris
Phone Number : +86 19939938244
WhatsApp : +8619939938244
|Minimum Order Quantity :||1 set||Price :||Negotiable|
|Packaging Details :||Electrical and other parts packed by high quality plywood crate; Steel structure packed by rain proof plastic cloth.||Delivery Time :||20 days|
|Payment Terms :||L/C, T/T, Western Union||Supply Ability :||3000 sets/per month|
|Place of Origin:||China||Brand Name:||Silence|
|Certification:||ISO CE||Model Number:||PT|
|Rated Loading Capacity:||1-10ton||Warranty:||2 Years|
|Max. Lifting Height:||9m||Span:||3-12m|
|Lifting Mechanism:||Electric Hoist, Hand Hoist, Mini Hoist||Color:||Yellow,red Or On Request|
mobile gantry crane,
wheeled gantry crane
Small boat lifting wireless gantry crane remote portable gantry crane
Product feature of portable gantry crane
The portable gantry crane can be quickly disassembled and installed, small footprint, adjustable height, reasonable steel frame structure, can bear the weight from 1000-5000KG, when the height of the plant is limited, can also be equipped with low headroom electric hoist to achieve ultra-low altitude easily operation.

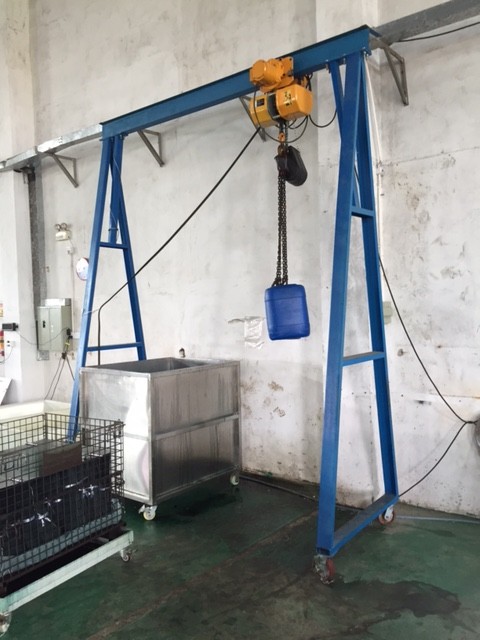

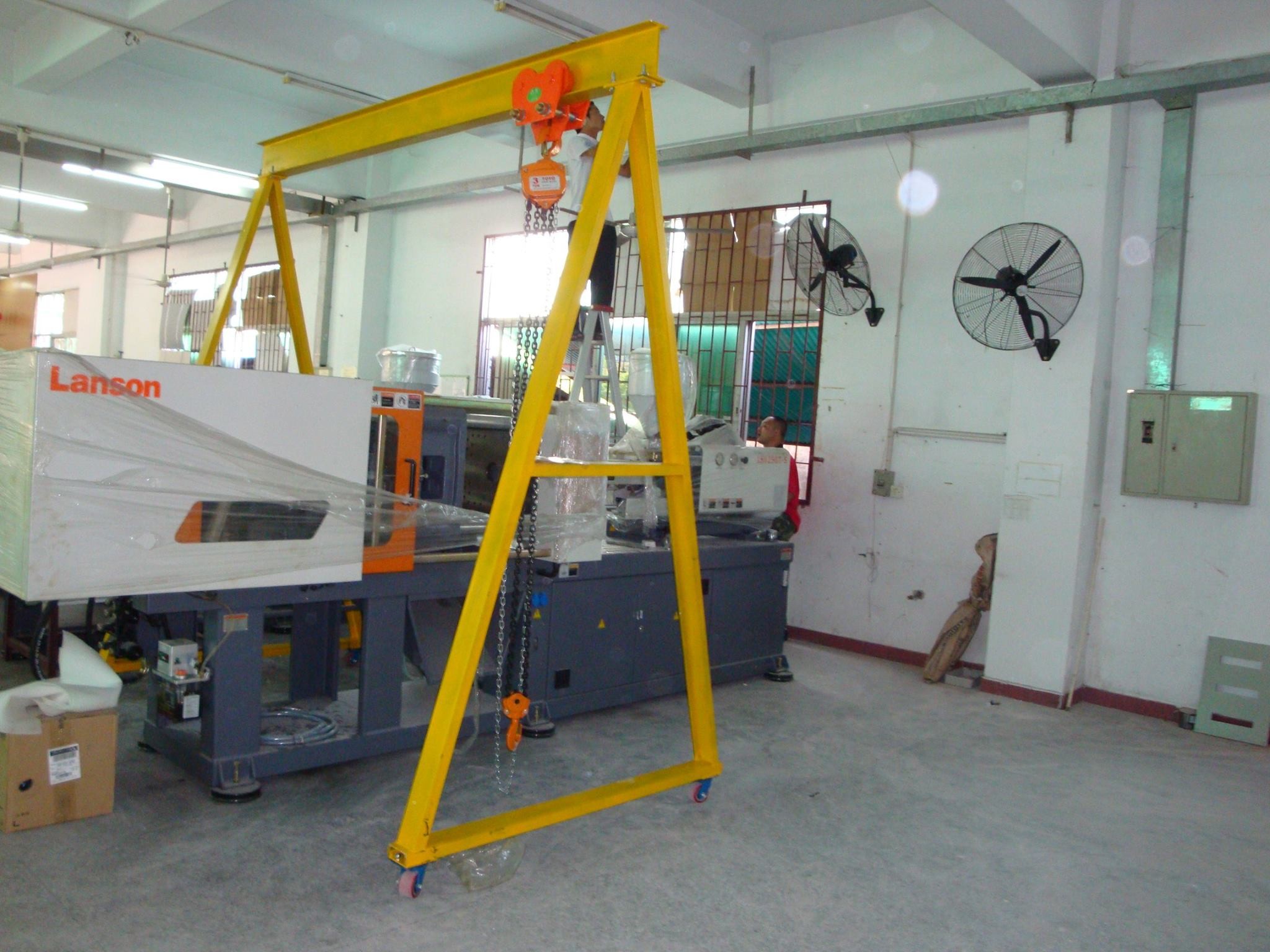

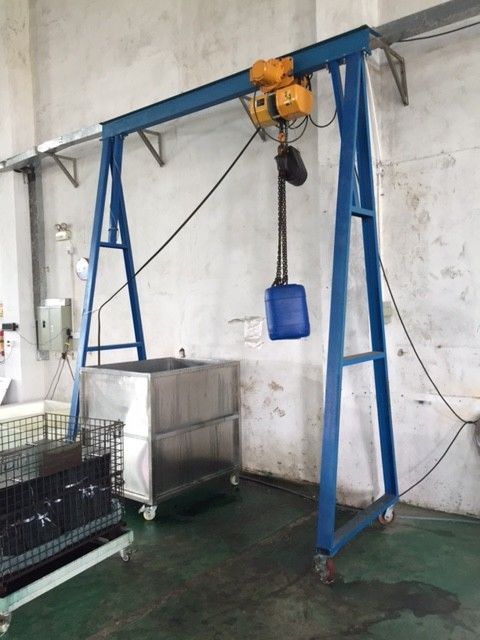

Use occasions, flat ground, warehouse, logistics center, production workshop, laboratory, clean room, etc.
Advantages of portable gantry crane
1. The lifting weight of the gantry frame can reach 10 tons, with a variety of installation configurations and spans. Can be used with hand hoist, chain hoist, wire rope hoist.
2. Prefabricated standard modular design makes movement easier.
3. It can be installed on any ground without putting pressure on the roof structure of the building.
4. High lifting capacity.
5. Wide applicability and can be applied in many materials handling environments.
6. Economical for individual work units.
7. Easy installation, reducing installation time and cost.
8. It can increase operators' satisfaction.
9. The safe operating environment can be realized.
10. Reduce the labor force and improve production efficiency.
1. Steel structure: Q235B carbon steel structure steel adopts a seamless forming process, more solid and beautiful:
Galvanized epoxy resin paint
Three layers of paint
2. Electric trolley type chain hoist:
Chain lift, single-speed
High strength low alloy steel structure, with motor and high wear-resistant wheels, compact structure, easy to install
3. Welding and spraying
4. Class 8.8 high strength bolts
5. The safety screw
6. Iron core polyurethane universal brake casters
|Model||Capacity(ton)||Total height(m)||Lifting height(m)||Internal width(m)||external width(m)||H(mm)|
1. Can u send me your price list ?
Sorry dear friend, as you know, if u are enduser, we can customize your gantry crane according to your working environment. So pls tell me your information below, so I can give your quick offer.
a: Lift capacity b: Lift height c: Span length d: Power source f: Working environment.
2. Can u draw for us?
Yes , we have good experienced technicians, we can design and draw for your own portal gantry crane according your requirements to solution your problems.
3. Operating methods for selection?
A: Pendent controller with push buttons
B: wireless controller
We integrate all circuit in the controller to control the gantry crane move front and back, the hoist lift up and down, travel left and right.
4. Can u provide the lifting tools series?
Sure, we can provide any other lifting machinery you need, such as pallet stacker, truck and so on.
5. How to install the mobile gantry crane?
We can send u the install operate manual or video, it’s easy to install the crane, but if u need our engineer can be your side.
6. What is your lead time?
The lead time is 15 days for one set.
