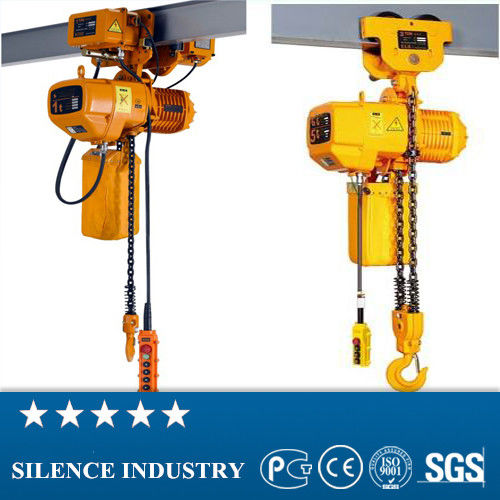

5 Ton Low Headroom Hoist Fixed Motorized Chain Hoist
Contact Person : Jerry
Phone Number : +86 19939938244
WhatsApp : +8619939938244
| Minimum Order Quantity : | 1 set | Price : | Negotiable |
|---|---|---|---|
| Packaging Details : | High quality standard plywood box | Delivery Time : | 10 work days |
| Payment Terms : | T/T, L/C, Western Union | Supply Ability : | 3000 sets/per month |
| Place of Origin: | China | Brand Name: | Silence |
|---|---|---|---|
| Certification: | ISO CE | Model Number: | HHBB |
|
Detail Information |
|||
| Color: | Yellow | Voltage: | 220V--- 440V |
|---|---|---|---|
| Warranty: | 2 Years | Sling Type: | Chain |
| Working Grade: | M4/M5 | After-sales Service Provided: | Online Support, No Overseas Service Provided |
| Highlight: | low headroom chain hoist,low headroom electric hoist |
||
Product Description
Move 2000kg electric chain low headroom hoist with electric trolley
Product description
| Model HSY | Capaacity TON | Lifting Speed(M/min) | Power (KW) | Strands of load chain(mm) | G/N(kg) |
| HHBB0.5-01 | 0.5 | 7.2 | 1.1 | 6.3 | 42/46 |
| HHBB01-01 | 1 | 6.8 | 1.5 | 7.1 | 59/64 |
| HHBB01-02 | 1 | 3.6 | 1.1 | 6.3 | 49/53 |
| HHBB02-01 | 2 | 6.6 | 3 | 10 | 109/121 |
| HHBB02-02 | 2 | 3.4 | 1.5 | 7.1 | 68/73 |
| HHBB03-01 | 3 | 5.6 | 3 | 11.2 | 113/125 |
| HHBB03-02 | 3 | 3.3 | 3 | 10 | 127/139 |
| HHBB03-03 | 3 | 2.2 | 1.5 | 7.1 | 85/95 |
| HHBB05-02 | 5 | 2.8 | 3 | 11.2 | 138/150 |
| HHBB7.5-03 | 7.5 | 1.8 | 3 | 11.2 | 192/208 |
| HHBB10-04 | 10 | 2.8 | 3.0*2 | 11.2 | 300/330 |
| SIZE SPECIFICATION | |||||
| MODEL | H | A | B | D | E |
| HHBB0.5-01 | 635 | 460 | 230 | 288 | 165 |
| HHBB01-01 | 650 | 520 | 260 | 300 | 176 |
| HHBB01-02 | 660 | 460 | 230 | 288 | 165 |
| HHBB1.5-01 | 770 | 615 | 295 | 430 | 265 |
| HHBB02-01 | 770 | 615 | 295 | 430 | 265 |
| HHBB02-02 | 815 | 520 | 260 | 300 | 236 |
| HHBB2.5-01 | 830 | 615 | 295 | 430 | 265 |
| HHBB03-01 | 830 | 615 | 295 | 430 | 265 |
| HHBB03-02 | 930 | 615 | 295 | 430 | 320 |
| HHBB03-03 | 940 | 520 | 260 | 350 | 205 |
| HHBB05-02 | 1015 | 615 | 295 | 430 | 325 |
| HHBB7.5-03 | 1200 | 615 | 295 | 505 | 320 |
| HHBB10-04 | 1190 | 630 | 315 | 890 | 445 |
Advantages of electric chain hoist
1. Reducer: adopt third-class dead axel helical gear transmission structure gear and geaaxel are made of heat treated alloy steel
2. Button Switch: easy to operate, safey for operator, both remote control and pendant control are available.
3. Motor: three-phase asynchronous induction motor, durable and powerful. Insulation grade is F.
4. Protection grade: IP54, work grade: M3
5. Over load limit is available. Hook is widen and thicken
6. Power-Off protection, Emergency stop system.
Product details
Shell: light aluminum alloy case, light and strong, high heat dissipation rate, fully sealed design suitable for use in poor operating conditions.
Reverse phase protection device: it is a special electrical device. When the power connection is wrong, the control circuit cannot move.
Switch: there are switch devices on and off heavy lifting to make the motor stop automatically to prevent the chain from exceeding and ensure safety.
24V/36V device: in case of leakage in the switch during operation, it can prevent other accidents.
Side magnetic brake device: this device can realize the instantaneous brake when the power is cut off.
Chain bag: light, beautiful and durable.
Chain: imported FEC80 super heat treatment alloy steel chain.
Product superiority
1. Light weight
2. High safety performance
3. Dual braking system
4. Emergency switch setting
Packaging and production line
