5 Ton Low Headroom Hoist Fixed Motorized Chain Hoist
Contact Person : Iris
Phone Number : +86 19939938244
WhatsApp : +8619939938244
Minimum Order Quantity : | 1 set | Price : | Negotiable |
---|---|---|---|
Packaging Details : | High quality standard plywood box | Delivery Time : | 10 work days |
Payment Terms : | T/T, L/C, Western Union | Supply Ability : | 3000 sets/per month |
Place of Origin: | China | Brand Name: | Silence |
---|---|---|---|
Certification: | ISO CE | Model Number: | HHBB |
Detail Information |
|||
Condition: | New | After Sales Service: | Overseas Aviliable |
---|---|---|---|
Warranty: | One Year | Sling Type: | Chain |
Color: | Yellow Or Can Be Customized | Power Source:: | Electric |
High Light: | low headroom electric hoist,low headroom trolley hoist |
Product Description

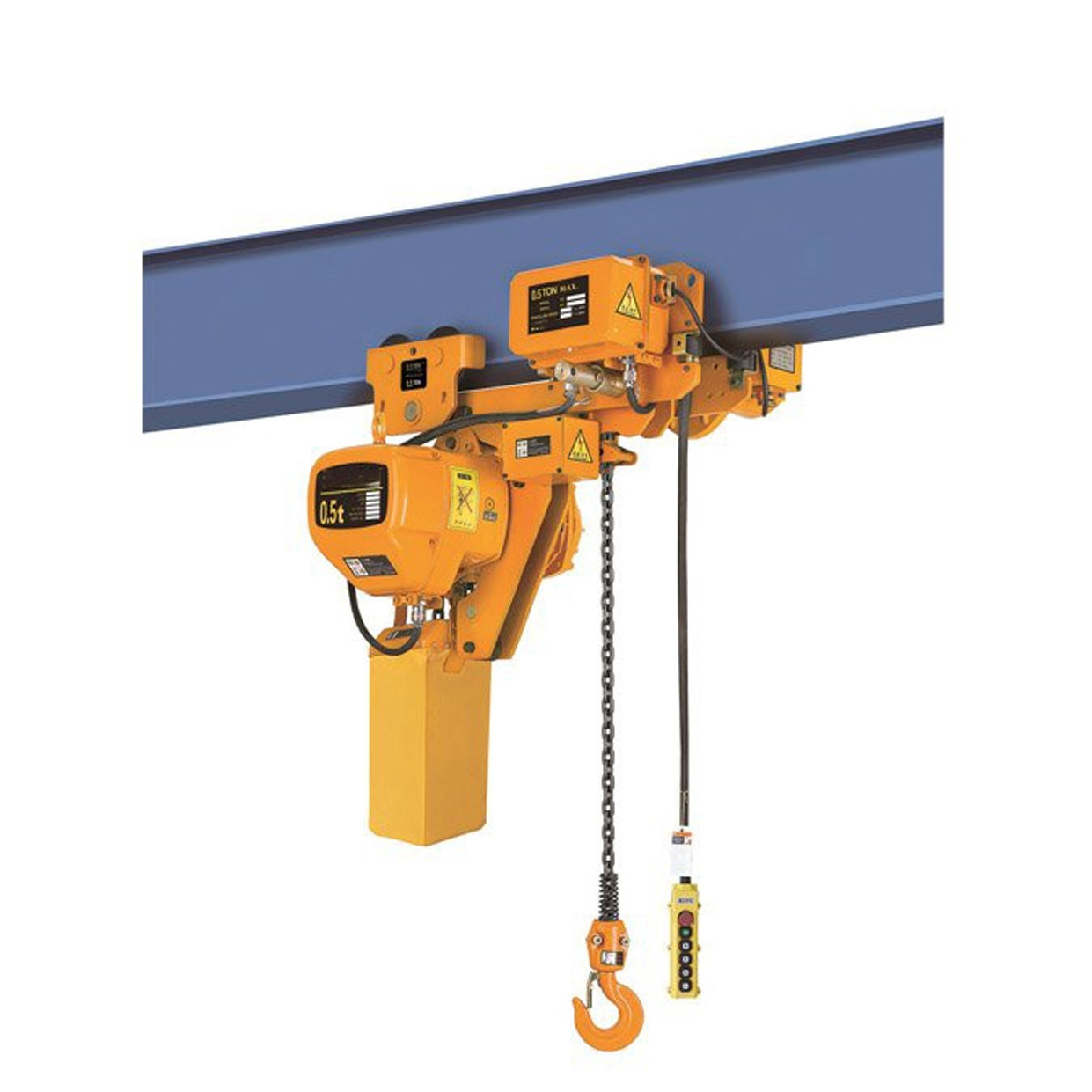

Manufacturers low headroom hoist 5ton electric chain hoist with trolley
Product description
1. Motor brake: adopt advanced magnetic cone brake to provide reliable stopping
2. Chain guide: high quality design provides smooth and quiet guidign og the lifting chain
3. Heavy duty motor: Squirrel cage parallel rotor motor; Cooling fins reduces the temperature of hoist and keep it working; The IP 55 protection can withstand demanding enviroment
4. Load chain: Carburizing chain or FEC chain is heat-treated for long life and endures harsh conditions
5. Hook: hot forged high tensile steel, rigid and durable, fitted with safety latch to ensure safety lifting
6. Push button pendant: water-Proof and insulated, provides light and durable switching controls.
7. Phase error relay to prevent mortor from running at incorrect wire connection
Technical parameters
Electric trolley type
SIZE SPECIFICATION | |||||
MODEL | H | A | B | D | E |
HHBB0.5-01 | 635 | 460 | 230 | 288 | 165 |
HHBB01-01 | 650 | 520 | 260 | 300 | 176 |
HHBB01-02 | 660 | 460 | 230 | 288 | 165 |
HHBB1.5-01 | 770 | 615 | 295 | 430 | 265 |
HHBB02-01 | 770 | 615 | 295 | 430 | 265 |
HHBB02-02 | 815 | 520 | 260 | 300 | 236 |
HHBB2.5-01 | 830 | 615 | 295 | 430 | 265 |
HHBB03-01 | 830 | 615 | 295 | 430 | 265 |
HHBB03-02 | 930 | 615 | 295 | 430 | 320 |
HHBB03-03 | 940 | 520 | 260 | 350 | 205 |
HHBB05-02 | 1015 | 615 | 295 | 430 | 325 |
HHBB7.5-03 | 1200 | 615 | 295 | 505 | 320 |
HHBB10-04 | 1190 | 630 | 315 | 890 | 445 |
Fixed type
SIZE SPECIFICATION | |||||
MODEL | H | A | B | D | E |
HHBB0.5-01 | 530 | 460 | 230 | 288 | 165 |
HHBB01-01 | 650 | 520 | 260 | 300 | 176 |
HHBB01-02 | 680 | 460 | 230 | 288 | 165 |
HHBB1.5-01 | 800 | 615 | 295 | 430 | 265 |
HHBB02-01 | 800 | 615 | 295 | 430 | 265 |
HHBB02-02 | 835 | 520 | 260 | 300 | 236 |
HHBB2.5-01 | 845 | 615 | 295 | 430 | 265 |
HHBB03-01 | 845 | 615 | 295 | 430 | 265 |
HHBB03-02 | 950 | 615 | 295 | 430 | 320 |
HHBB03-03 | 950 | 520 | 260 | 350 | 205 |
HHBB05-02 | 1030 | 615 | 295 | 430 | 325 |
HHBB7.5-03 | 1380 | 615 | 295 | 505 | 320 |
HHBB10-04 | 1400 | 630 | 315 | 890 | 445 |
Product details
Shell: light aluminum alloy case, light and strong, high heat dissipation rate, fully sealed design suitable for use in poor operating conditions.
Reverse phase protection device: it is a special electrical device. When the power connection is wrong, the control circuit cannot move.
Switch: there are switch devices on and off heavy lifting to make the motor stop automatically to prevent the chain from exceeding and ensure safety.
24V/36V device: in case of leakage in the switch during operation, it can prevent other accidents.
Side magnetic brake device: this device can realize the instantaneous brake when the power is cut off.
Chain bag: light, beautiful and durable.
Chain: imported FEC80 super heat treatment alloy steel chain.
Product superiority
1. Light weight
2. High safety performance
3. Dual braking system
4. Emergency switch setting
Packaging and production line
