Single Girder Low Headroom Hoist 5 Ton Electric Small Sized Lifting Equipment

Minimum Order Quantity : 1 set Price : Negotiable
Packaging Details : high quality plywood crate Delivery Time : 7 days
Payment Terms : L/C, T/T, Western Union Supply Ability : 3000 sets/per month
Place of Origin: China Brand Name: Silence
Certification: ISO Model Number: CD

Detail Information

Condition: New Warranty: 2 Years
Sling Type: Wire Rope Maximum Lifting Height: 100m
Lift Speed: 0.8/5.0m/min 1.3/8.0m/min Traveling Speed: 5/20m/min
High Light:

low headroom chain hoist

,

low headroom electric hoist

Product Description

Low headroom hoist 5ton single girder wire rope electric hoist



General description

General description

1. Wire rope electric hoist is a kind of small-sized lifting equipment, which can be installed independently working in steel or H-steel, but also with the single girder bridge crane, hoist double girder bridge crane, gantry crane and hoist jib crane hoisting equipment such as supporting the use of.



2. Wire rope electric hoist main have CD1 type and MD1 type;HC type and HM type wire rope electric hoist. Normally, CD1 type wire rope electric hoist working speed is 8 m/min; MD1 type wire rope electric hoist working speed is 0.8/ 8 m/min.CD1 and MD1 type wire rope electric hoist lifting capacity from 0.25ton to 16ton.CD and MD wire rope electric hoist is a light lifting equipments.



3. HC type and HM type wire rope electric hoist is a heavy duty lifting equipments. HC type electric hoist working speed is single speed, HM type electric hoist working speed is double speed; HC and HM type wire rope electric hoist lifting capacity from 16ton to 80ton.

Application

1. Factory,workshop,warehouse,store;

2. Logistic,dock,port , freight yard ;

3. Construction building,mine,etc.



Product specification

Loading capacity 0.25 ~ 80t
Lifting height 3 ~ 50 m or customized
Lifting speed

Single speed: 0.3 ~ 8 m/min; or customized

Variable frequency speed: 0.1 ~ 12.5 m/min; or customized

Working class M3 ~ M6
Working temperature -20 ~ 40 ℃
Power supply AC-3Phase-220//230380/400/415/440V-50/60Hz
Control voltage DC-36 / 48V
Motor protection class IP54 IP55
Control way Ground handle control(Push button),wireless remote control
Safety device Buffer,current overload protection,overload device,power failure protection
Application area Factory,workshop,warehouse,power station,logstic,etc.
Painting color Blue or Customzied



Product feature



Motor Motor is using for hoist trolley travel and hoist lifting, our supplier brand is Nanjing motor or as your requirement.
Gear box Gear box is using for hoist lifting,under 16ton always use round shape gear box,more than 16ton adopt suqare shape,all the gear inside through heat treatment to keep its long using life.
Wire rope Normal wire rope and galvanized type wire rope,mainly adopt Chinese top quality wire rope.
Height limiter It can keep the hoist lift within suitable lift height, when the goods lift to max height, the power will be cutted automatically.
Hook Hook is the sling for hoist,with 360 degree rotation and high bearing strength.
Control handle Provide pendent control and romote control.



Technical parameters

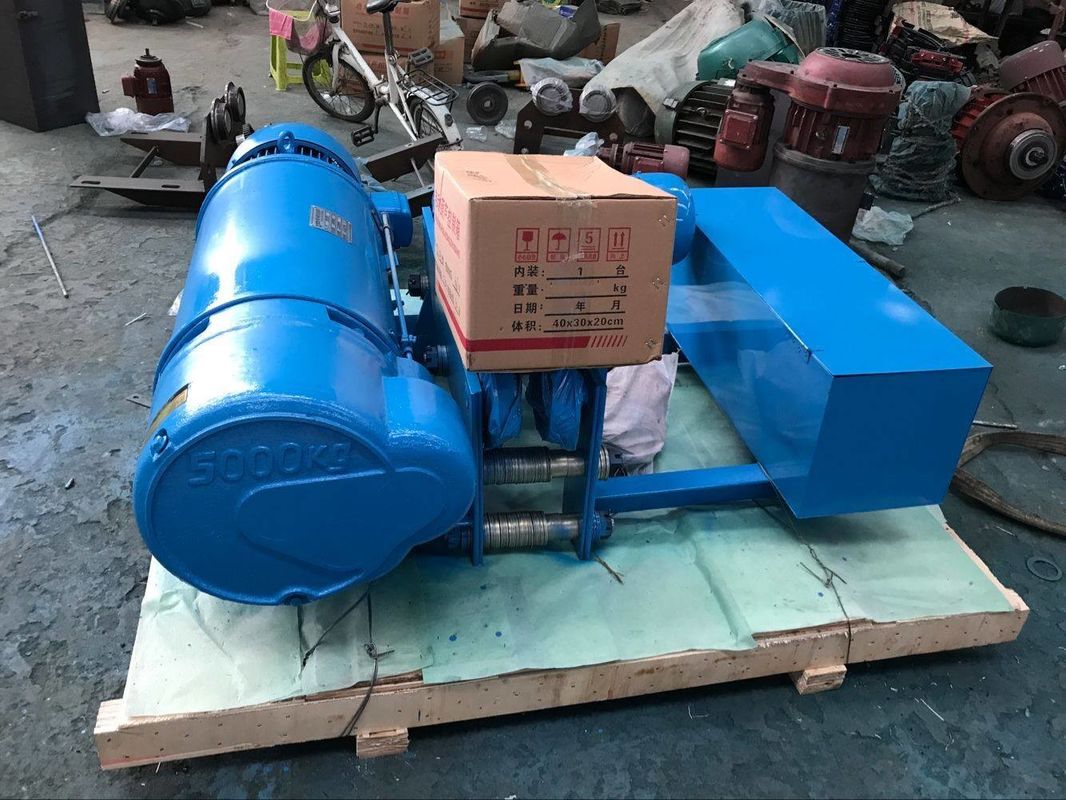

Single Girder Low Headroom Hoist 5 Ton Electric Small Sized Lifting Equipment 0

Type Lifting capacity(t) Lifting Speed(m/min) Traveling speed(m/min) Working-class Pulley ratio Power c
h i
SHA2 1.6 8.0/1.2 15.8/5 M5 2/1 2.5/0.37 100-500 94-180
3.2 4.0/0.6 15.8/5 M5 4/1 2.5/0.37
SHA3 2.5 8.0/1.2 15.8/5 M5 2/1 4.9/0.8 116-450 116-180
5 4.0/0.6 15.8/5 M5 4/1 4.9/0.8
SHA4 6.3 10/1.6 15.6/5 M4 2/1 12.5/2.0 142-500 142-500
12.5 5.0/0.8 15.6/5 M4 4/1 12.5/2.0

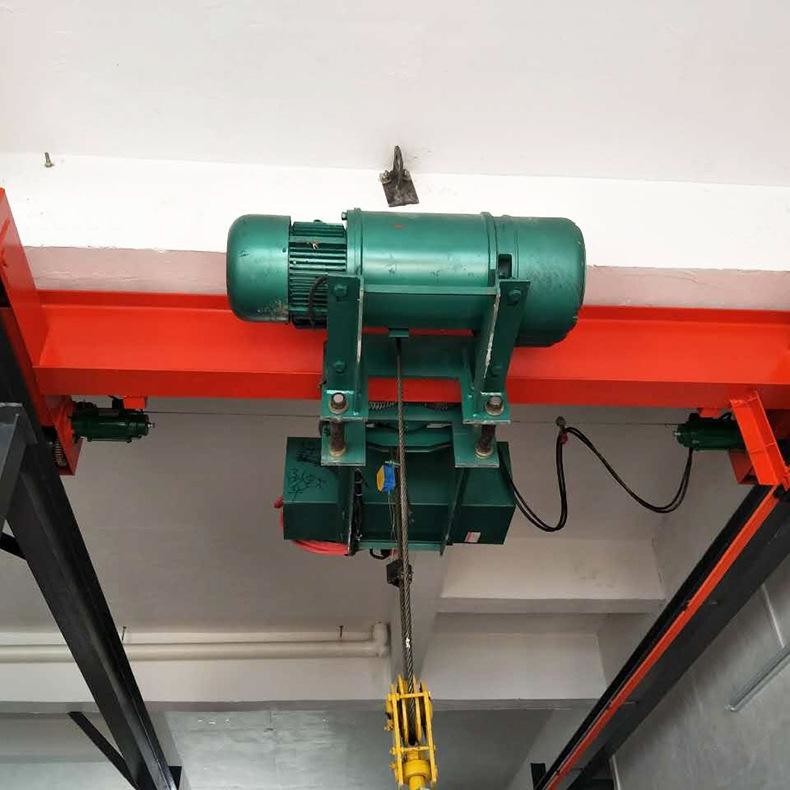

Single Girder Low Headroom Hoist 5 Ton Electric Small Sized Lifting Equipment 1

Single Girder Low Headroom Hoist 5 Ton Electric Small Sized Lifting Equipment 2

Single Girder Low Headroom Hoist 5 Ton Electric Small Sized Lifting Equipment 3
