Product Description

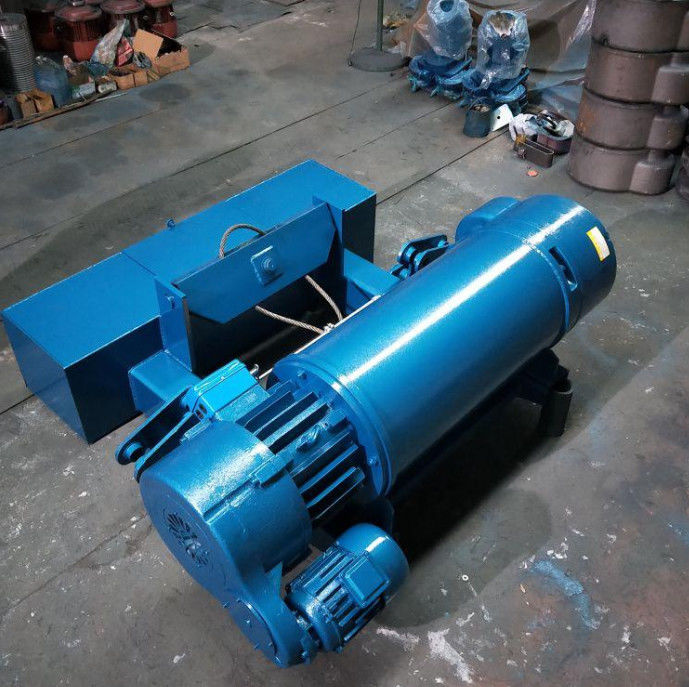

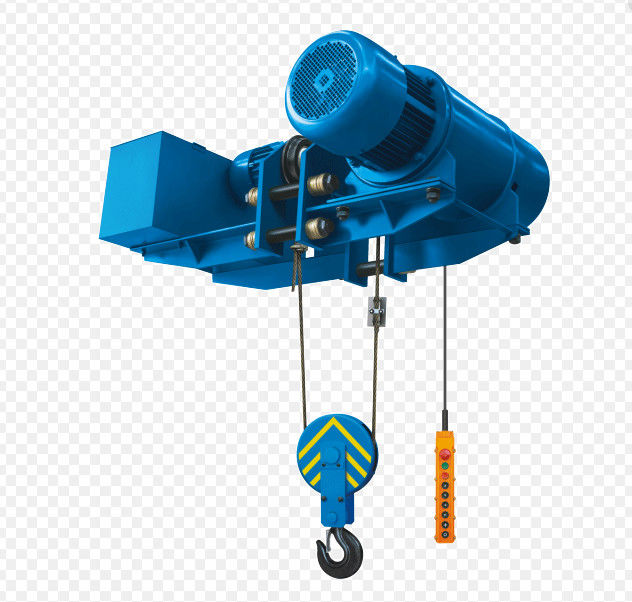

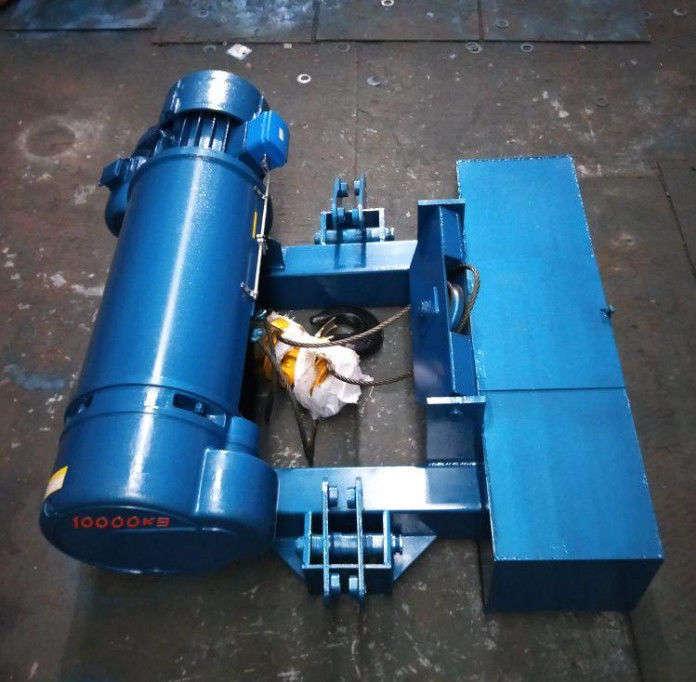

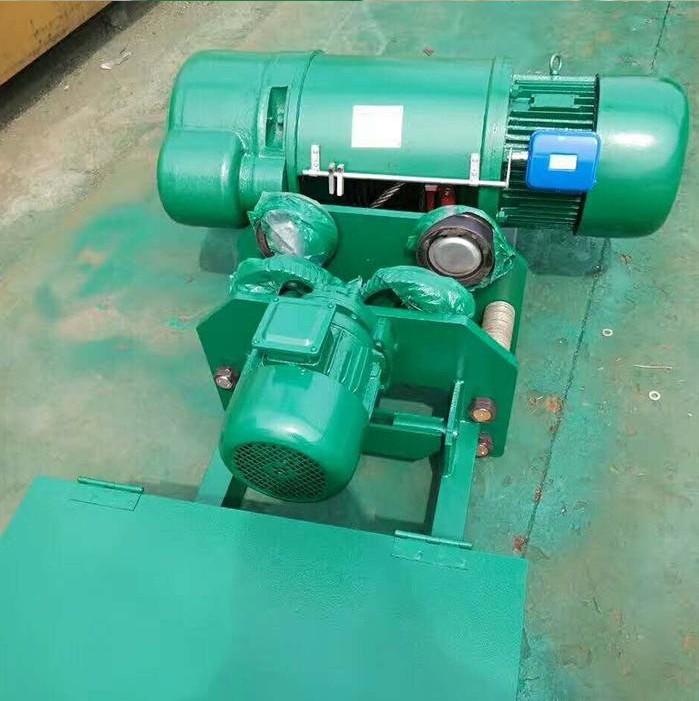

10ton Low headroom hoist electric wire rope hoist with trolley
Product presentation
10ton Low headroom hoist electric wire rope hoist hold the characteristic as compact structure, light dead weight and easy operation.It can be installed on I-steel or working together with single beam crane, double beam crane, jib crane and so on. CD1 type is single-speed while MD1 type has dual speed. The fast speed is for lifting, low speed can do precise loading and unloading, mounding of sand box, maintenance of machine tools etc.
Advantages
• CE approved.
• Lightweight robust construction.
• Low effort to lift maximum load.
• Fully forged hooks.
• High grade alloy load chain.
• Durable baked enamel paint protection.
• Overload protection device available upon request.
• Excellent after-sale serve.
Product feature
The characteristics and advantages of low static air electric hoist are as follows:
1. Low clearance height.
2. Excellent three-in-one transmission technology, the lifting reducer is made of high-quality alloy steel, with three-stage reduction, stable operation, long life and reliable performance, avoiding many disadvantages of CD hoist intermediate shaft long-distance transmission.
3. The motor has an excellent comprehensive performance.
Exquisite structure, beautiful appearance, with many unique innovations:
(1) there is no leakage cable in the main body of the hoist, and the cables are arranged inside the hoist by various means to make the appearance of the hoist more beautiful;
For example, the supporting shaft is hollow thick-walled steel pipe, which can reduce the overall weight of the electric hoist and realize the cable crossing of the left and right parts of the hoist under the premise of ensuring the use strength.
(2) the structure of the hoist is compact, the counterweight is the counterweight box type, the user can add all kinds of scrap steel or stone, save the steel, at the same time than the counterweight block type low clearance electric hoist to reduce the appearance size;
(3) for the operation of the hoist, the driving wheels on both sides transmit torque through six-sided steel, which is of high torque and high reliability, avoiding the shear failure of the flat key, and this kind of transmission is also very conducive to the installation and regulation of the hoist operation part;
(4) the outer cover of the lifting main engine is square welded structure, with bolt holes installed on all sides, with high universality, which can be quickly changed into stationary or suspended trolley running electric hoist, and the rope can be produced in the direction of 360°.
The whole structure is easy to disassemble and install, convenient for maintenance and good maintainability.
Technical parameters
Type | Lifting capacity(t) | Lifting Speed(m/min) | Traveling speed(m/min) | Working-class | Pulley ratio | Power | c | |
h | i | |||||||
SHA2 | 1.6 | 8.0/1.2 | 15.8/5 | M5 | 2/1 | 2.5/0.37 | 100-500 | 94-180 |
3.2 | 4.0/0.6 | 15.8/5 | M5 | 4/1 | 2.5/0.37 | |||
SHA3 | 2.5 | 8.0/1.2 | 15.8/5 | M5 | 2/1 | 4.9/0.8 | 116-450 | 116-180 |
5 | 4.0/0.6 | 15.8/5 | M5 | 4/1 | 4.9/0.8 | |||
SHA4 | 6.3 | 10/1.6 | 15.6/5 | M4 | 2/1 | 12.5/2.0 | 142-500 | 142-500 |
12.5 | 5.0/0.8 | 15.6/5 | M4 | 4/1 | 12.5/2.0 |
Ex-factory test
Make sure the equipment is in good condition for commissioning before delivery.
